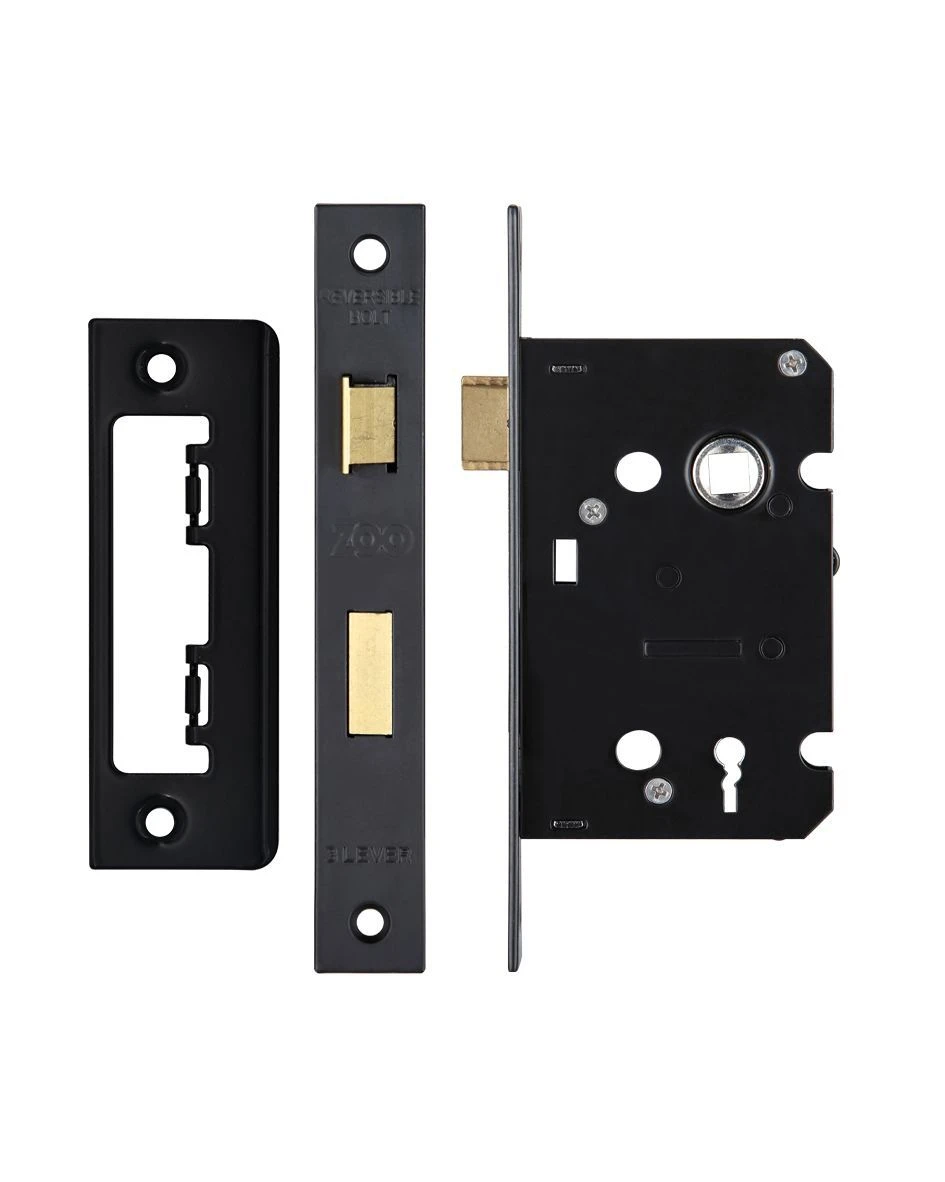

3 Lever Economy Mortice Sash Lock – Fire Rated – CE / UKCA Marked – Matt Black

• Matt black finish 3 lever economy mortice sash lock.

• Basic style 3 lever cut keys – low level security.

• For use on doors that require door handles and need to be locked via a standard “chubb” style key.

• Must be used in conjunction with some form of door handle.

• Supplied with matt black finish forend and frame mounted strike plate.

Operation

• Latch is withdrawn via a lever handle from either side of the door (handles sold separately).

• Deadbolt is locked and un-locked via the supplied cut keys.

Features

• Solid brass deadbolt and latch.

• Medium weight spring strength ideal for use with sprung lever furniture.

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Patented Easi-T latch reversal mechanism. – Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

Finish

• Matt black

Alternative Finishes Available

• Brass plated

• Nickel plated

• Florentine bronze

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

Item Code	Lock Case Depth (A)	Backset To Keyhole (B)
41489.1	64mm	44mm
41489.2	76mm	57mm

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number – 2H810F1KD2A.
• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
• CE Marked / UKCA Marked.
• Declaration of performance (DoP) – please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.

• Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for more details.

Unit Of Sale

• Each – (1 x lock case supplied with forend, strike plate and 2 keys).
