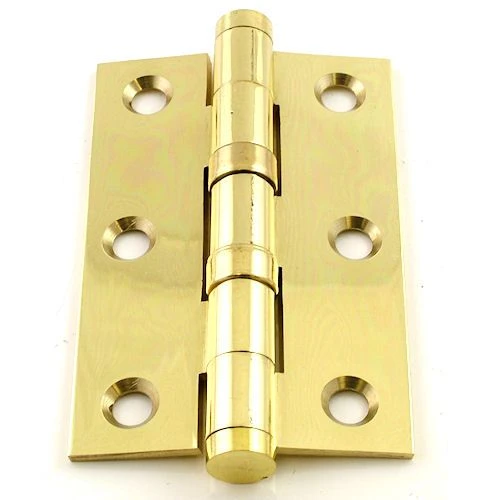

4 Ball Bearing Hinge – Polished Brass PVD Plated – 76mm X 50mm

• Hinges suitable for internal or external doors
• 4 ball bearings for superior action and wear-ability

Finish

• PVD Brass

Dimensions

	20251.1	Dimension On Diagram
Height (H)	76mm	A
Width (W)	50mm	B
Leaf Width	20mm	C
Thickness	2mm	N/A

Important Info Before You Buy

• Suitable for wooden doors

• Base material is brass. Hinges have 4 ball bearings in the knuckle. This gives the hinge excellent strength and a smooth action

• We recommend the this hinge for medium weight internal doors

• For glazed or heavy internal doors we recommend the 102mm x 76mm 4 Ball Bearing hinges

• For heavy front doors or external doors we recommend the Grade 13 Ball Bearing hinges

• For any doors that have to pass fire regulations the Grade 13 Ball Bearing hinges  have to be used

• These hinges have a high quality lacquer coating and are suitable for internal or external use. (Please note the lacquer will break down after time and the brass will tarnish. This will happen a lot quicker on external doors compared to internal doors)

• Hinges are sold and priced in pairs and come supplied with screws
