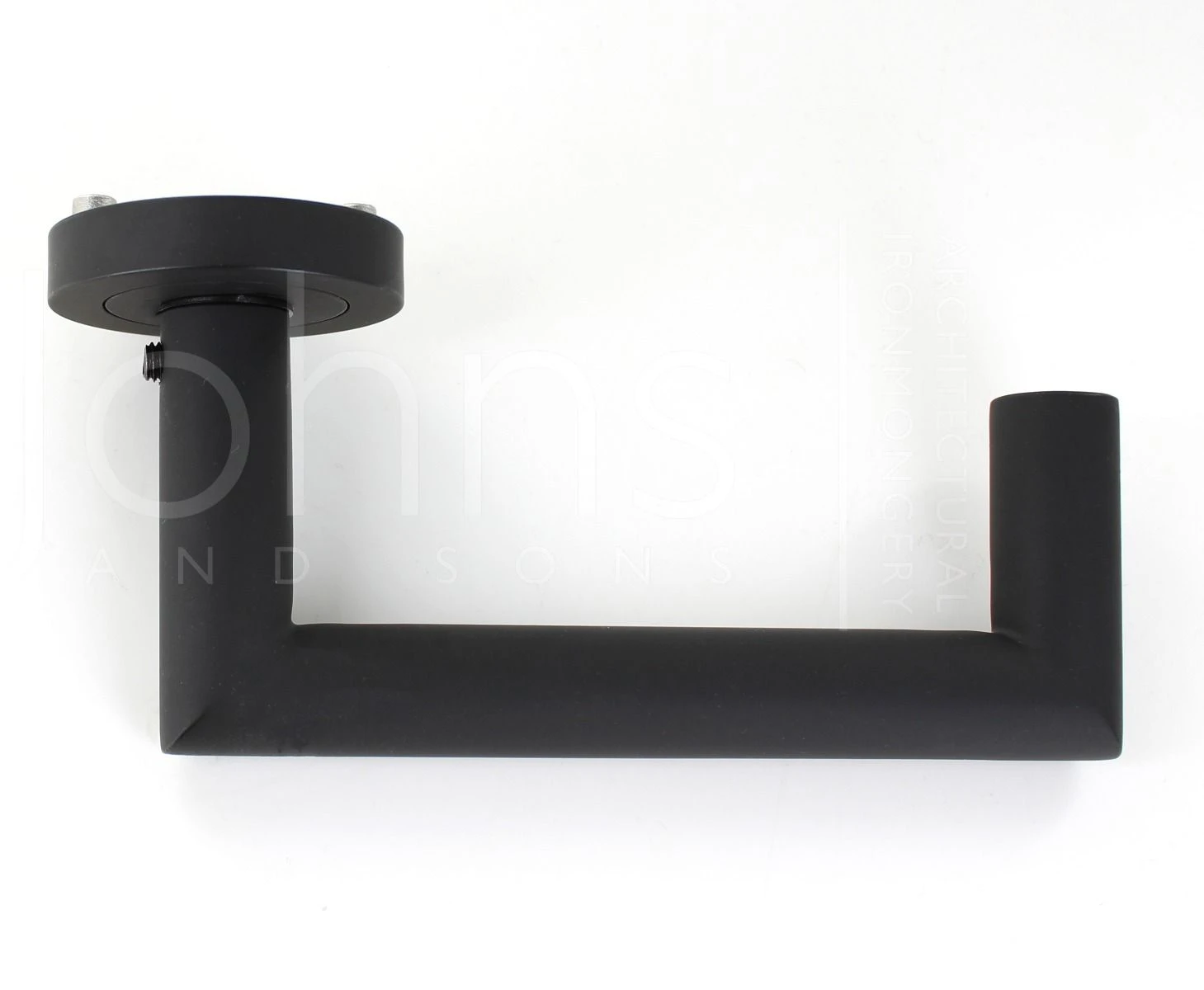

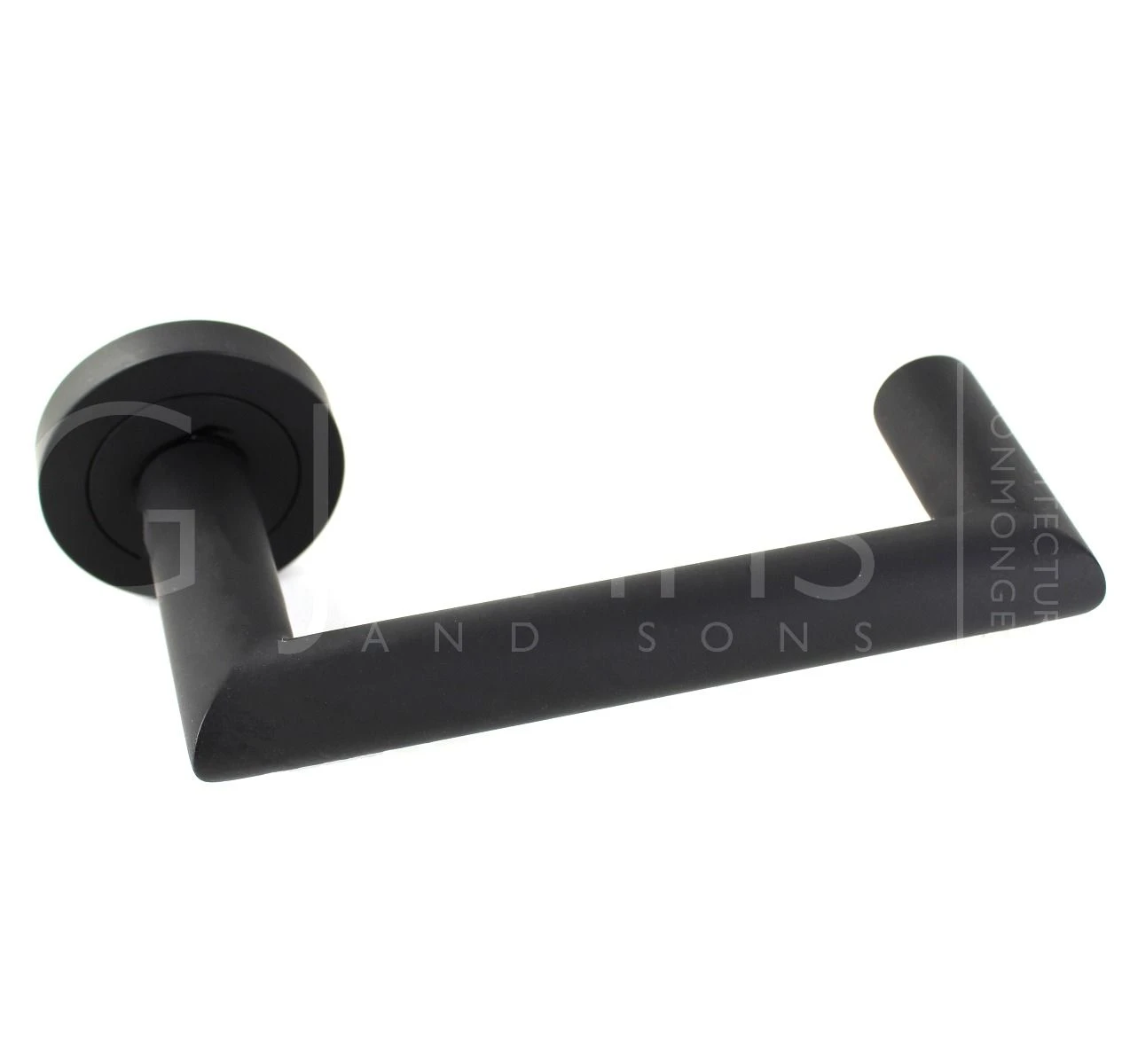

48320.1 – Contemporary Design Return To Door Safety Lever Handles On Round Rose – BS8300 / ADM Approved – Fire Rated – Matt Black

• Modern design return to door round rose lever handles.

• Matt black finish.

• Meets the dimensional requirements of BS8300 and Approved Doc M (ADM)

• Safety pattern with mitred corners – contemporary design.

• FD30 / FD60 fire rated

• Suitable for residential or commercial use.

• Concealed bolt through fixings via three piece rose.

• Matching matt black accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”) – 41509.1

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders) – 41508.1

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors) – 41511.1

• Accessible turn & emergency release – (a thumbturn with large turn & indicator designed for use on accessible / disabled toilets) – 44499.1

Base Material

• Made from stainless steel.

Finish Details

• Matt black finish.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

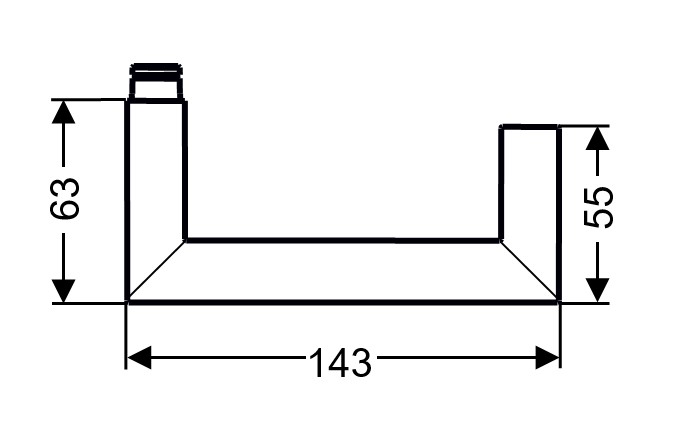

Size Information

• Rose Diameter – 52mm
• Rose Thickness – 10mm







Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Comes supplied with male and female bolt through fixings and 8mm spindle.

Unit Of Sale

• Sold per pair – (1 x left hand & 1 x right hand lever handle).
