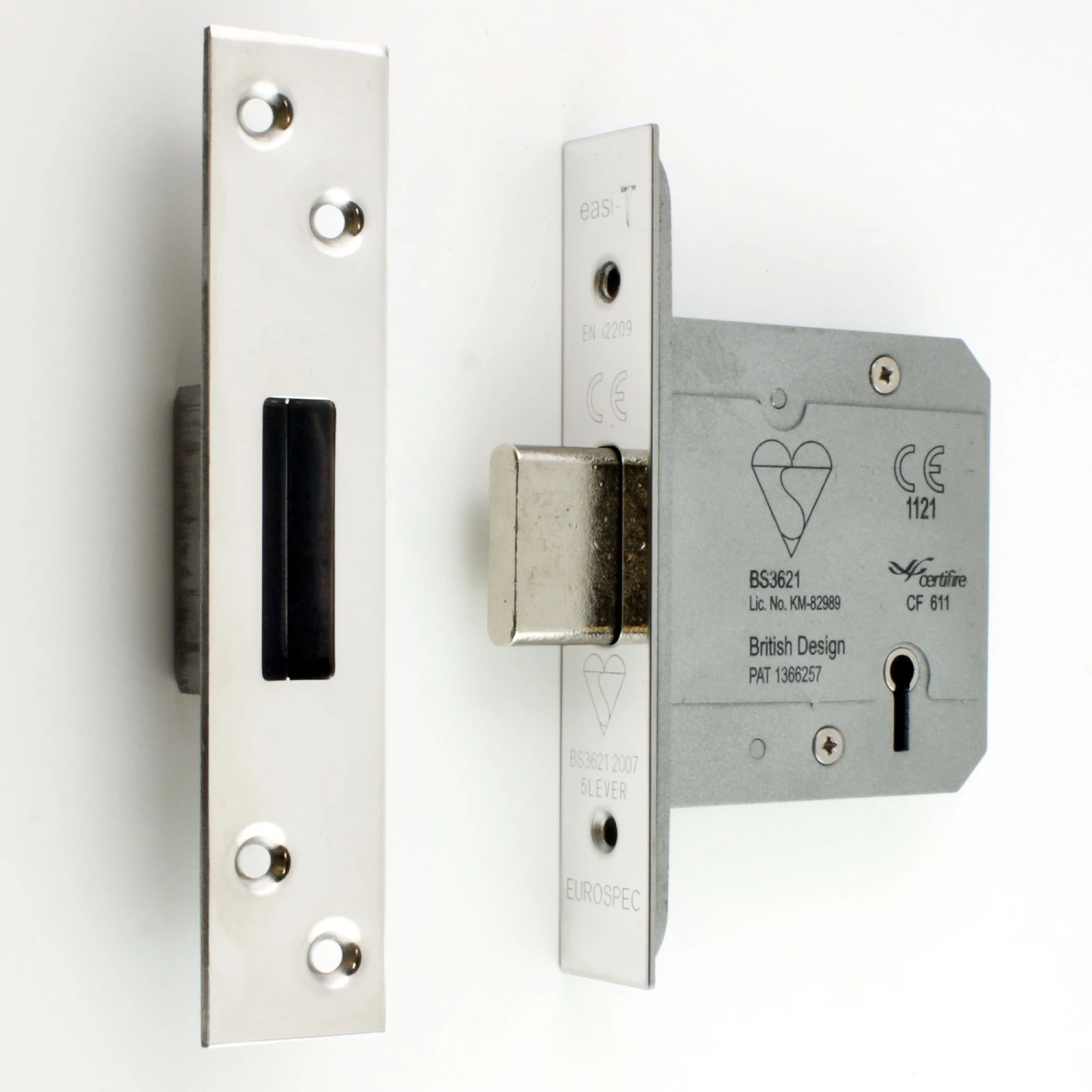

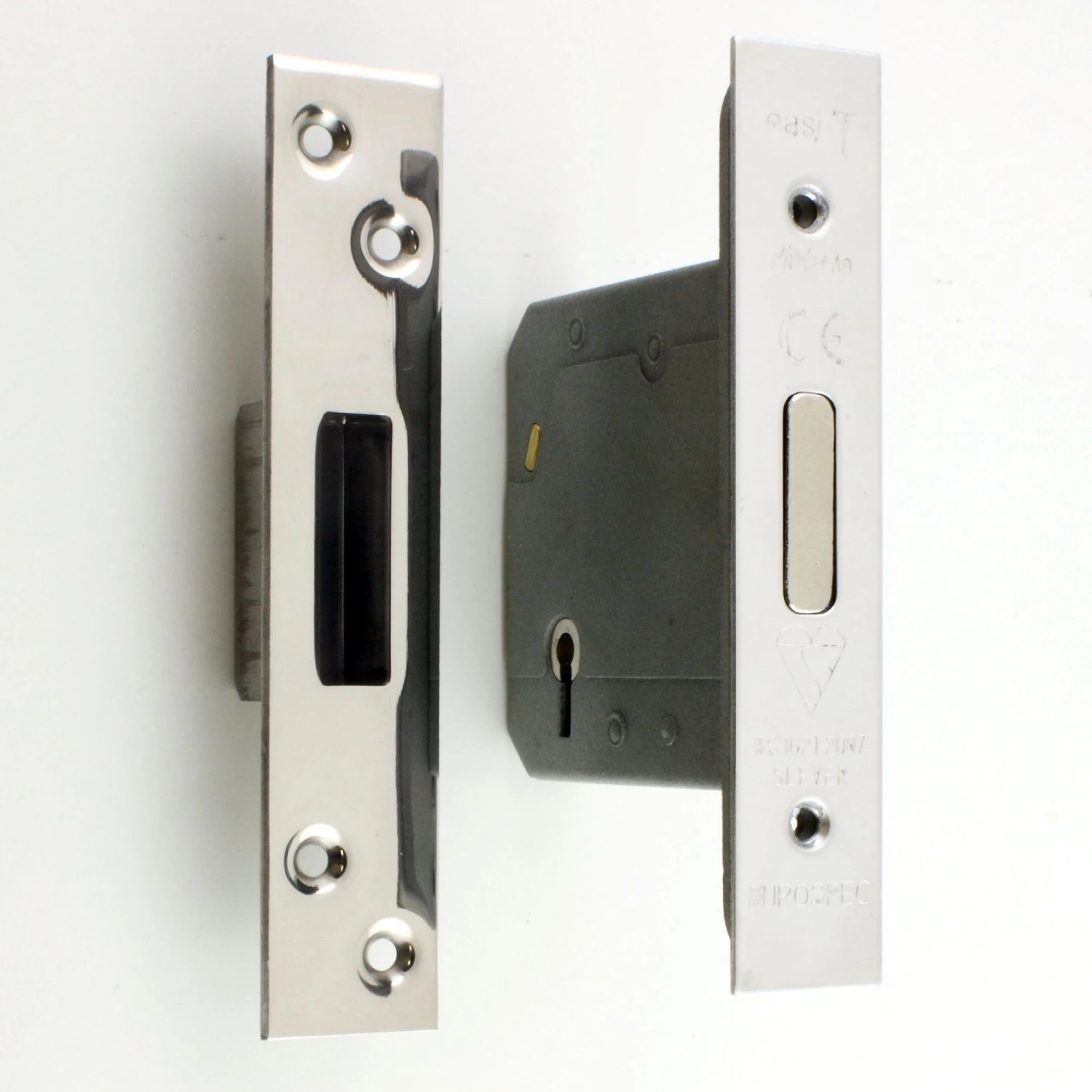

5 Lever British Standard Kite Marked Mortice Dead Lock – BS3621 Rated – CE / UKCA Marked – Fire Rated – Certifire Approved – Polished Stainless Steel –

• 5 Lever British Standard Deadlock.

• Polished stainless steel – shiny finish.

• Kite marked security lock for front doors. Tested to the British standard BS 3621.

• Insurance approved, BS 3621 rated.

• Key operation from either side of the door via a cut “Chubb style” key.

• Supplied with shiny polished finish forend and receiver plate.

• Police preferred specification – Secured By Design (SBD) approved.

• Mortice lock available in two sizes 64mm or 76mm (case depth).

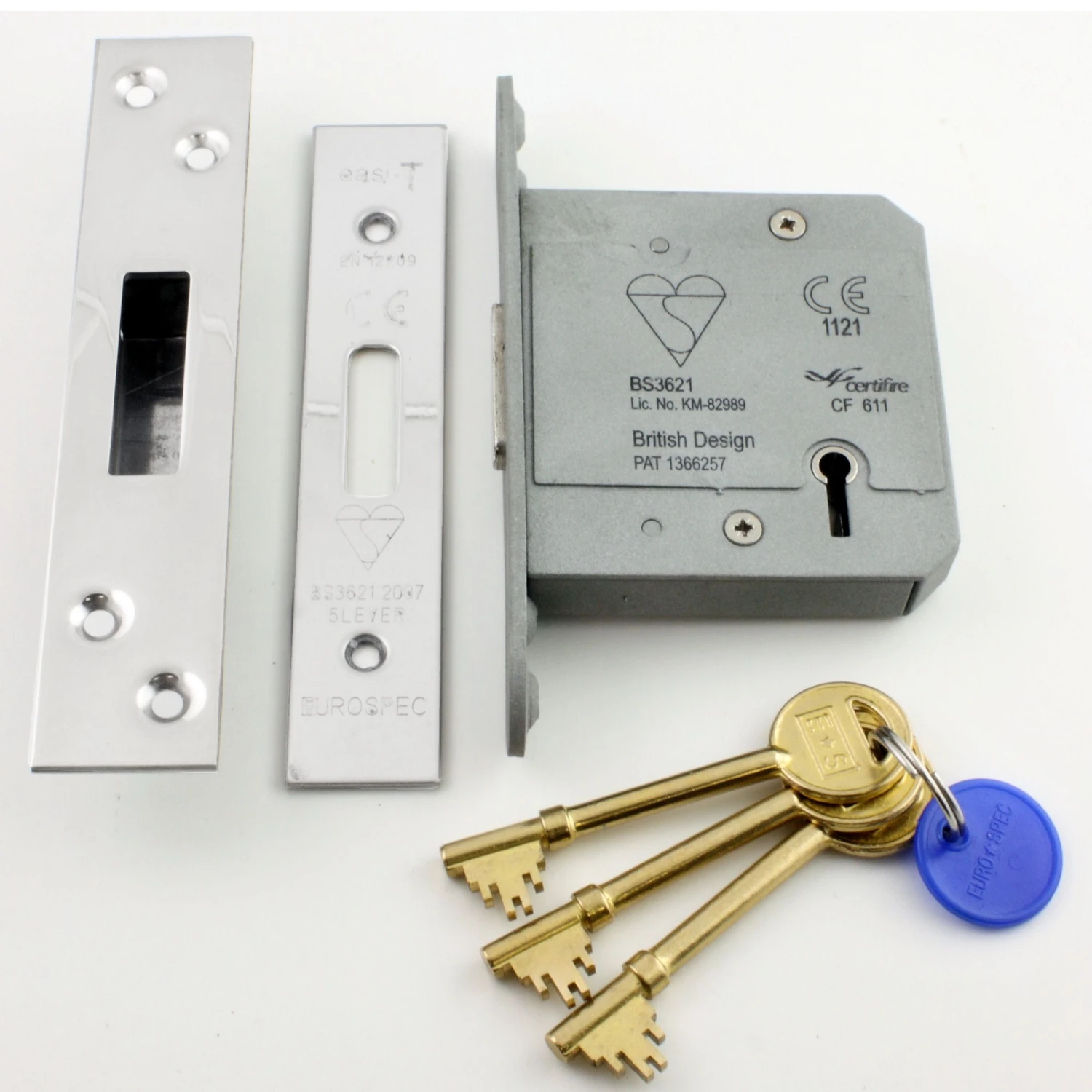

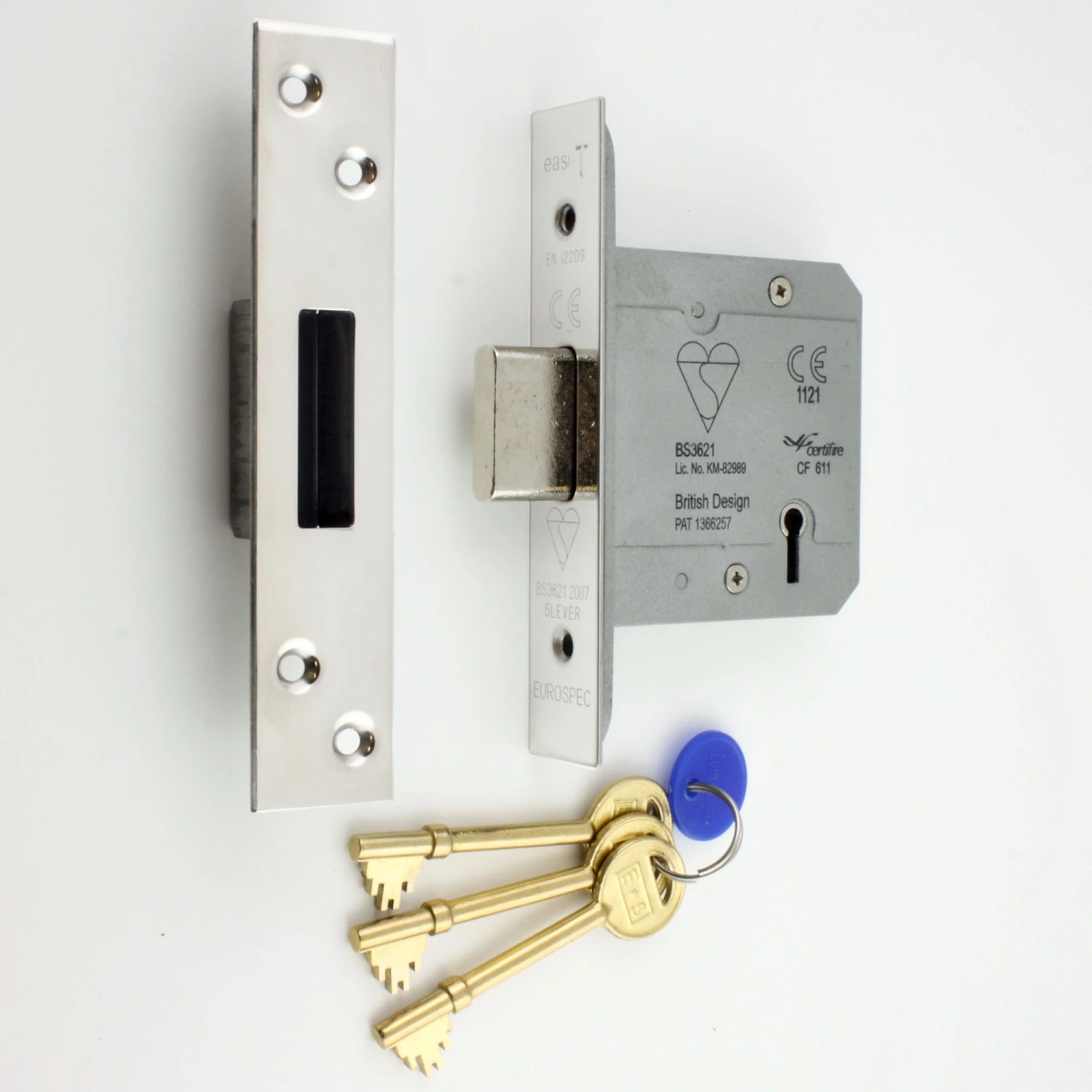

• Supplied with 3 keys

Operation

• Key operation from both sides.

• Key differed – if ordering more than one, each lock will come with different keys.

• Suitable for use on timber doors.

Security Level

• Tested to BS EN 12209 the British / European standard requirements and testing methods covering locks and latches. Classification number 2H810F7KD0B

• Stainless steel deadbolt with 20mm throw (bolt is thrown 20mm via one turn of the key only).

• Police preferred specification – Secured By Design (SBD) approved.

• High security, suitable for use on external front doors.

Finish

• Polished stainless – (shiny finish ideal for matching with polished chrome products).



Alternative Finishes Available

• Satin stainless steel

• PVD Brass

• Florentine bronze

Dimensions

Item Code	Lock Case Depth (A)	Backset To Keyhole (B)
40660.1	64mm	44mm
40660.2	76mm	57mm

Standards This Product Conforms To

• Police preferred specification – Secured By Design (SBD) approved.

• Kite marked – This lock meets the current British standard for locks fitted to external doors, including front doors.

• Insurance approved.

• Tested and passed to BS 3621:2007. The British standard requirements and test methods covering thief resistant lock assemblies with key egress (key egress – operating the lock via key from the inside of the door).

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number – 2H810F7KD0B.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) – please see the additional information tab to download the certificate.

Options Available To Order

• Keyed Alike (KA) – A batch of locks all under the same one key.

• Please contact us for more information and lead times and prices for the above options.
