Please note This lock is not a British Standard (BS 3621) rated lock.

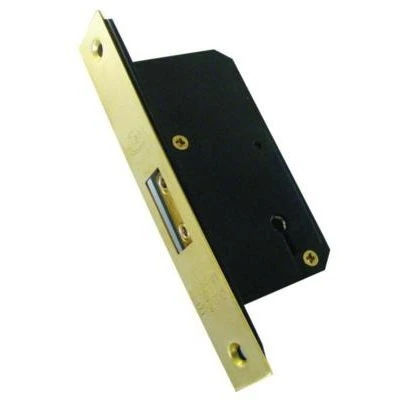

- ASEC narrow style dead lock.
- Medium level security 5 lever lock.
- Ideal for use on traditional French doors and windows with very narrow wooden stiles where larger sash locks are too deep to fit.
- For use on doors that require door handles and need to be locked via a standard “chubb” style key.
- Comes supplied with a polished brass forend and frame mounted strike plate.
Operation
- Deadbolt is locked and un-locked via the supplied cut keys.
- Key differed – if ordering more than one lock each lock will come with different keys.
FeaturesÂ
- Solid brass deadbolt with anti-saw rollers.
Â
Security LevelÂ
- Medium security range.
- 5 lever – not BS rated (this lock does not meet the British Standard BS 3621).
Finish
- Polished brass.
Â
Alternative Finishes Available
- Satin stainless steel.
Dimensions
- Case depth – 50mm
- Backet – 35mm
- Case height – 108mm
- Forend length – 165mm
- Forend width – 25mm
| Item Code | Lock Case Depth (A) | Backset To Keyhole (B) |
|---|---|---|
| AS11354 | 50mm | 35mm |
Standards This Product Conforms To
- All though this lock is a 5 lever lock, it is not kite marked nor BS rated. If you need to fit this size lock to any external doors in your property, you should disclose this information to your insurance company as this lock is not “insurance rated”.
Rebate Kit For Double Rebated Doors
- AS1077 – 13mm polished brass rebate kit for use with the ASEC 50mm narrow pattern 5 lever dead lock.
Unit Of Sale
- Each – (1 x lock case supplied with forend, strike plate and 3 keys).
