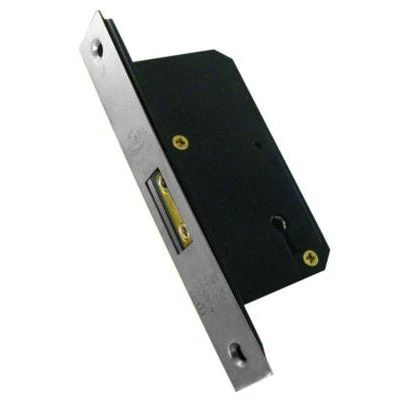

5 Lever Narrow Case Dead Lock – 50mm Case Depth (35mm Backset) – Satin Stainless Steel

• Please note This lock is not a British Standard (BS 3621) rated lock.

• ASEC narrow style dead lock.

• Medium level security 5 lever lock.

• Ideal for use on traditional French doors and windows with very narrow wooden stiles where larger sash locks are too deep to fit.

• For use on doors that require door handles and need to be locked via a standard “chubb” style key.

• Comes supplied with a satin stainless steel (brushed finish) forend and frame mounted strike plate.

Operation

• Deadbolt is locked and un-locked via the supplied cut keys.

• Key differed – if ordering more than one lock each lock will come with different keys.

Features

Finish

• Satin stainless steel.



Alternative Finishes Available

• Polished brass.

Dimensions

• Case depth – 50mm
• Backet – 35mm
• Case height – 108mm
• Forend length – 165mm
• Forend width – 25mm

Item Code	Lock Case Depth (A)	Backset To Keyhole (B)
AS11355	50mm	35mm

Standards This Product Conforms To

• All though this lock is a 5 lever lock, it is not kite marked nor BS rated. If you need to fit this size lock to any external doors in your property, you should disclose this information to your insurance company as this lock is not “insurance rated”.

Unit Of Sale

• Each – (1 x lock case supplied with forend, strike plate and 3 keys).
