Accessible Toilet Lock & Handle Set For Disabled WC Toilets – Satin Stainless Steel

• Toilet lock designed especially to comply with new legislation Part M, DDA & BS8300 etc.
• The accessible toilet lock operates from the outside with a lever handle to release the roller latch bolt & has a red & white indicator release, in an emergency the coin release can be turned to release the dead bolt. The outside operation is no different to any other bathroom lock & does not require instructions.
• The inside lever handle presses down to release the latch bolt & lifts up to throw the dead bolt as illustrated this is an unusual feature & therefore has a sign to read “lift handle to lock” this message is repeated in Braille.

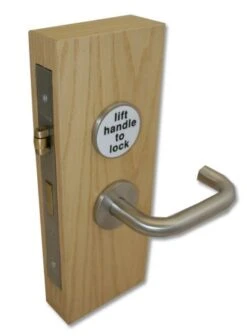

• This unique toilet lock comes in a complete set as shown in the photographs.

Base Material

• Handled made from grade 304 satin stainless steel.

Finish Detail

• Finish Satin stainless steel – (brushed finish).
• Lettering Black letters on white background & Braille to read “lift handle to lock”

Dimensions

• Lock Case Satin stainless steel forend & strike plate. Roller bolt latch (less likely to cause injuries or damage to clothing than a normal latch bolt).
• Separate deadbolt with 78mm centres and 57mm backset
• Furniture 19mm diameter stainless steel levers

Fixing

• Fixings Bolt through Secure Fixings
