Architectural Quality 3 Lever Mortice Dead Lock – CE / UKCA Marked – Fire Rated – Certifire Approved – Satin Stainless Steel

• Architectural quality 3 lever mortice dead lock from the Eurospec – E*S – Easi-T range.

• Brushed stainless steel finish.

• For use on internal doors and cupboards that need to be locked via a key.

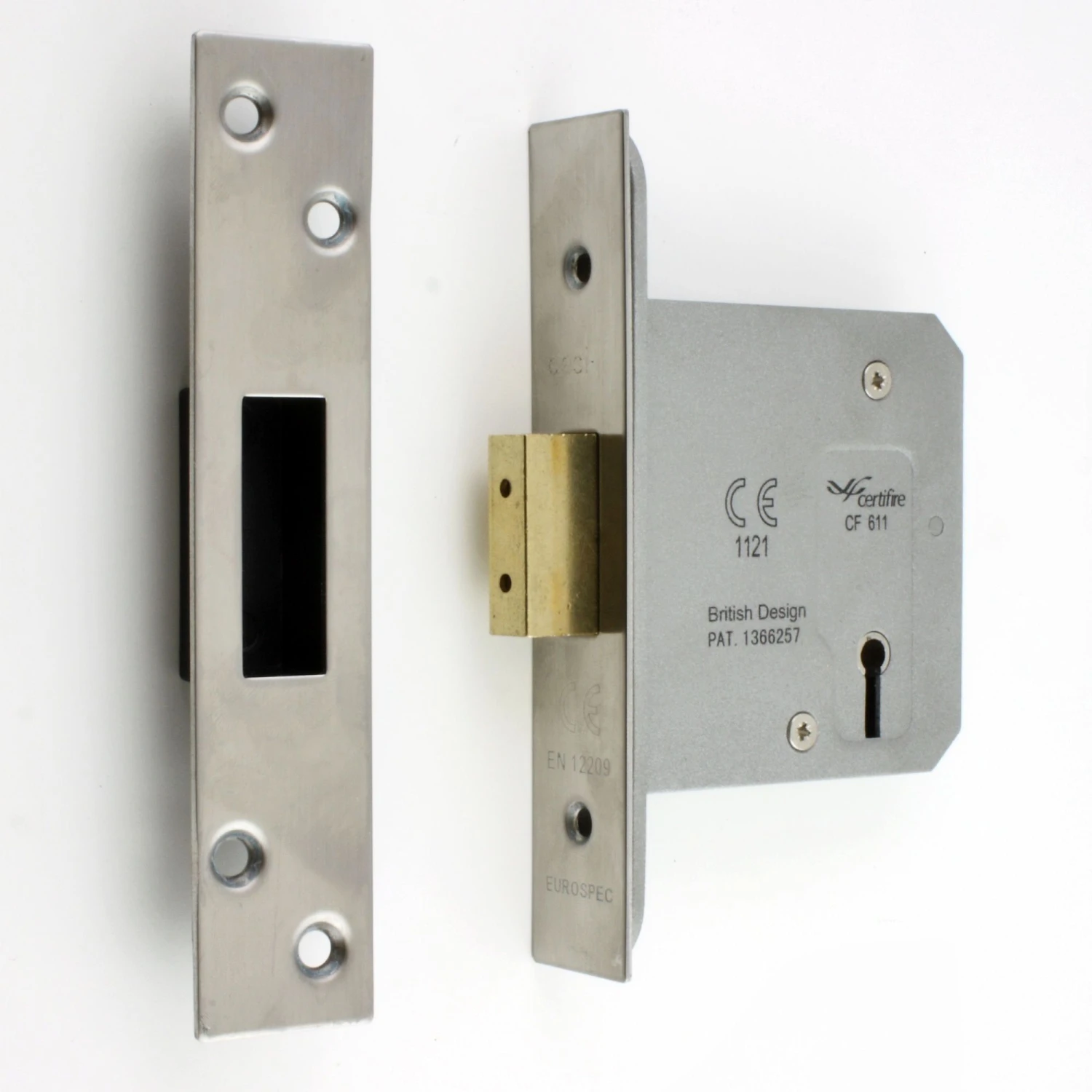

• Comes supplied with a satin stainless steel (brushed finish) forend and frame mounted strike plate including black plastic back box.

Operation

• Deadbolt is locked and un-locked via a key.

Features

• Medium to heavy weight springing.

• Supplied with 2 keys.



Finish

• Satin stainless steel – (brushed finish).



Alternative Finishes Available

• Polished stainless steel.

• PVD Brass

• Florentine bronze.

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

Item Code	Lock Case Depth (A)	Backset To Keyhole (B)
LDS5325SSS	64mm	44mm
LDS5330SSS	76mm	57mm

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number – 3H810F2KD0A.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) – please see the additional information tab to download the certificate.

Options Available To Order

• This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.

• Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Unit Of Sale

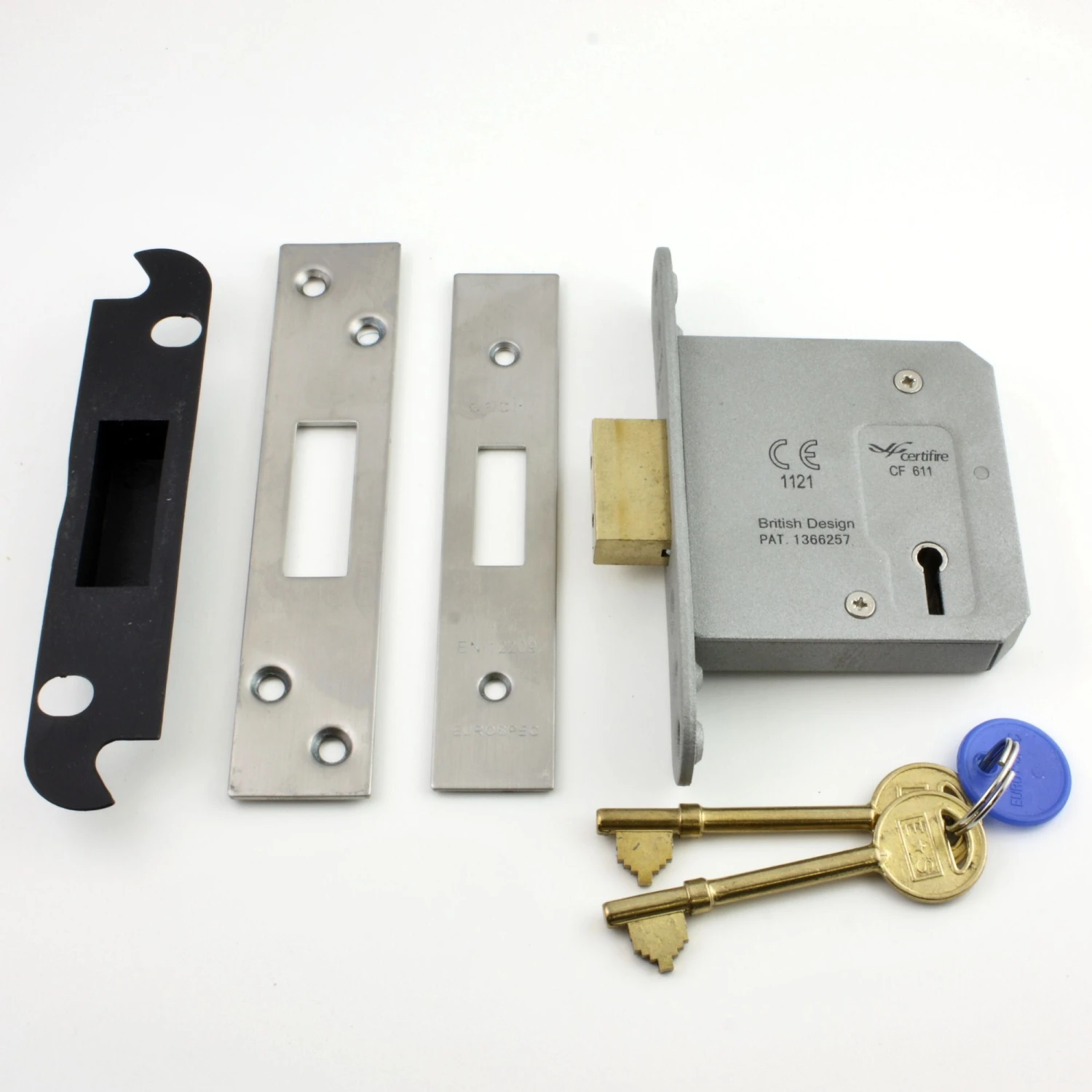

• Each – (1 x lock case supplied with forend, strike plate and plastic back box).
