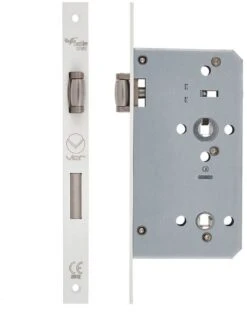

Architectural Quality DIN Style Bathroom Mortice Lock – CE / UKCA Marked – Fire Rated – Certifire Approved – Matt Bronze (Powder Coated)

• Euro profile DIN standard bathroom mortice lock.

• 5mm follower for use with standard UK bathroom snib turn & release system

• Case size 150mm x 85mm.

• 60mm backset with 78mm centers between the lever spindle hole and the bathroom spindle hole.

• Satisfies BS 8300 and Approved Doc M (ADM). – Suitable for use in public and commercial buildings.

• For use on bathroom and WC doors that require lever door handles and need to be locked via a snib turn & release system.

Operation

• Latch is withdrawn via a lever handle from either side of the door. (handles sold separately).

• Deadbolt is thrown and withdrawn (locked & unlocked) via a bathroom snib turn & emergency release set (sold separately).

• Suitable for use on inward or outward opening doors.

Features

• Heavy duty lock case.

• Solid stainless steel latch and deadbolt.

• Dual latch springing – spring strength can be adjusted on site to suit sprung or un-sprung lever furniture.

• Bolt through facility for bolt together fixing of lever handles and accessories at 38mm centers.

• Solid investment cast spindle followers.

• 10 year mechanical guarantee as standard.

• Patented Easi-T latch reversal mechanism. – Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

• Complete with black plastic frame box keep to sit behind the strike plate.

Finish

• Matt bronze

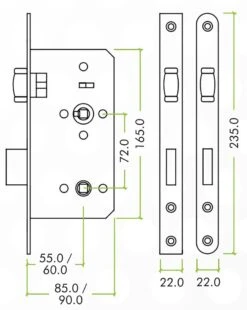

Dimensions

Standards This Product Conforms To

• Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number – 3M810F3BA00.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

• Certifire approved.

• CE Marked / UKCA Marked.

• Declaration of performance (DoP) – please see the additional information tab to download the certificate.

Options Available To Order

• Intumescent lock case liners to suit the E*S DIN standard lock range are available. Please see our intumescent fire rated products category.

Extra Items Required For This Lock

• Lever door handles – (half set required for the inside of the door).

• A turn & emergency release set – (used to lock and unlock the door).

Unit Of Sale

• Each – (1 x lock case supplied with forend, strike plate and black plastic back box).
