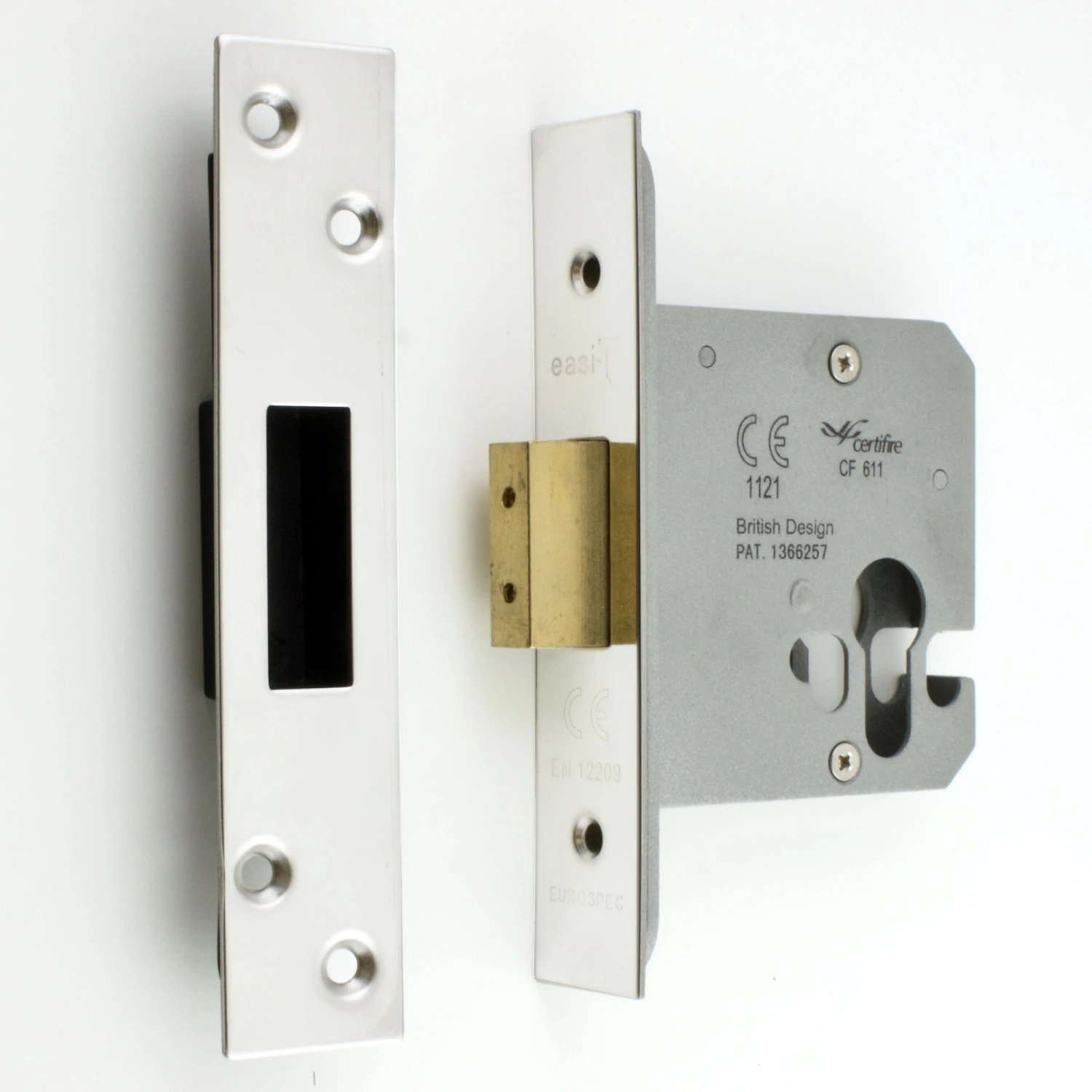

Architectural Quality Euro Profile Mortice Dead Lock Case – CE / UKCA Marked – Fire Rated – Certifire Approved – Polished Stainless Steel
Original price was: $19.15.$13.41Current price is: $13.41.
- Sustainable materials, for a better tomorrow.
- 100% High-Quality Guarantee
- Protect Your Information, Shop with Safe Payments
- Get the Best for Less
- Architectural quality Euro profile mortice dead lock case from the Eurospec – E*S – Easi-T range.
- Shiny finish ideal for matching with chrome products.
- For use on doors need to be locked via a Euro profile cylinder.
- Must be used in conjunction a Euro cylinder.

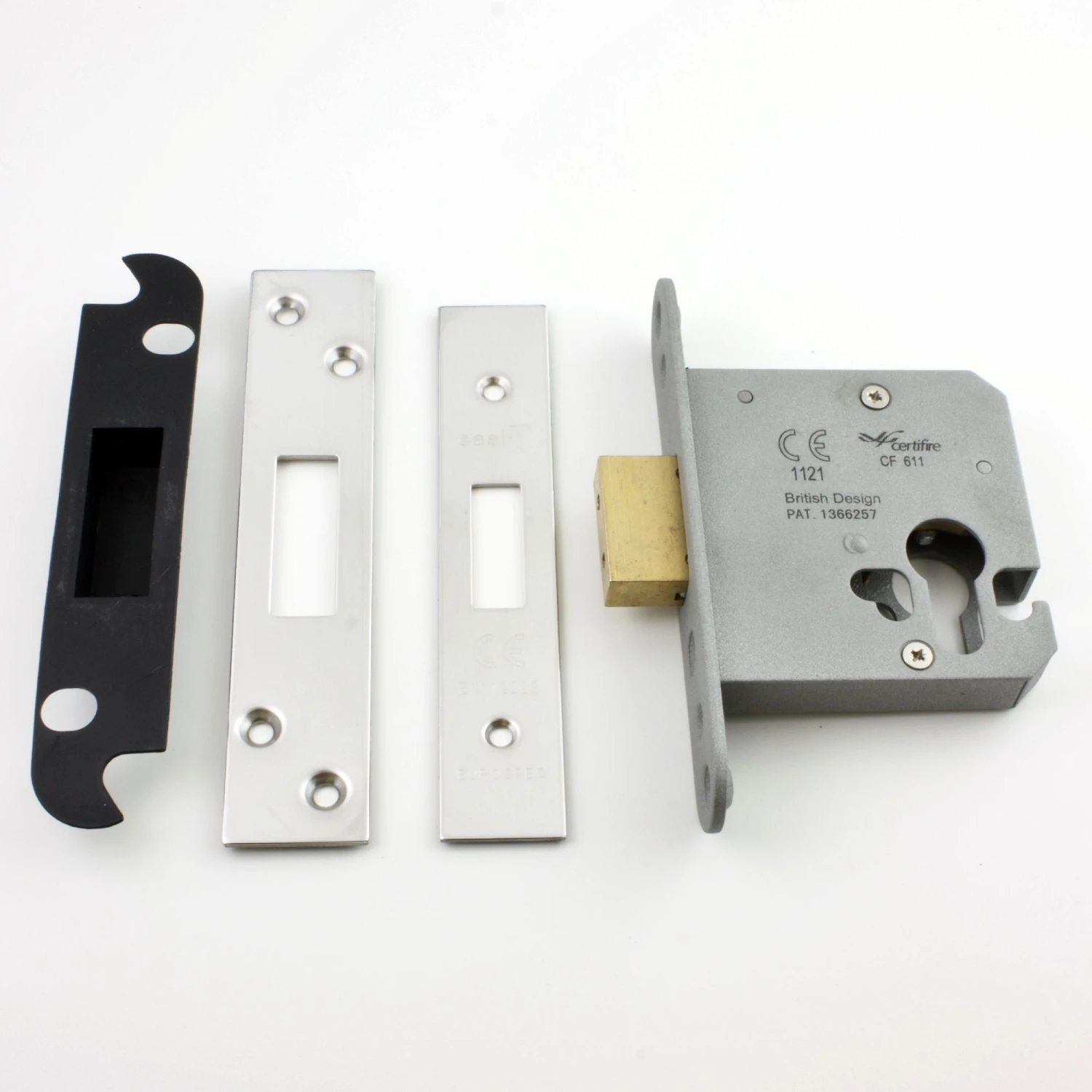

- Comes supplied with a polished stainless steel (shiny finish) forend and frame mounted strike plate including black plastic back box.
Operation
- Deadbolt is locked and un-locked via a Euro profile cylinder (sold separately).
Features
- Solid brass deadbolt with anti-saw rollers.
- Medium to heavy weight springing.
- Bolt through facility for bolt together fixing escutcheons at 38mm centres.
Security Level
- Medium security architectural range.
- Suitable for use on internal doors in residential, commercial or public buildings.
Finish
- Polished stainless steel – (shiny finish).
Alternative Finishes Available
- Satin stainless steel.
- PVD Brass.
- Florentine bronze.
Dimensions
- Available in two sizes
- 64mm case depth (44mm backset).
- 76mm case depth (57mm backset).
| Item Code | Lock Case Depth (A) | Backset To Keyhole (B) |
|---|---|---|
| EDS5325/FSF5007BSS | 64mm | 44mm |
| EDS5330/FSF5007BSS | 76mm | 57mm |
Standards This Product Conforms To
- Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number – 3H810F2BA00.
- Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).
- Certifire approved.
- CE Marked / UKCA Marked.
- Declaration of performance (DoP) – please see the additional information tab to download the certificate.
Options Available To Order
- This lock is also available to order with radius (rounded shape) forend and strike plates. Please contact us for lead times and prices.
- Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Rebate Kit For Double Rebated Doors
- ARD5205SSS – 13mm satin stainless steel rebate kit for use with Eurospec architectural dead locks.
- Please note if the above reabte kit is used the lock finish will be a satin (brushed) stainless steel.
Unit Of Sale
- Each – (1 x lock case supplied with forend, strike plate and plastic back box).
| Item | 40683 |
|---|---|
| Item Code | 40683 |
| Finish | Polished Stainless Steel |
| Dimensions | 64mm or 76mm Case Depth |
| Fire Rated | FD30 / FD60 – Fire Rated |
| Sold Per | Each |
| Availability | Stock item – please allow 1-3 days for delivery |
