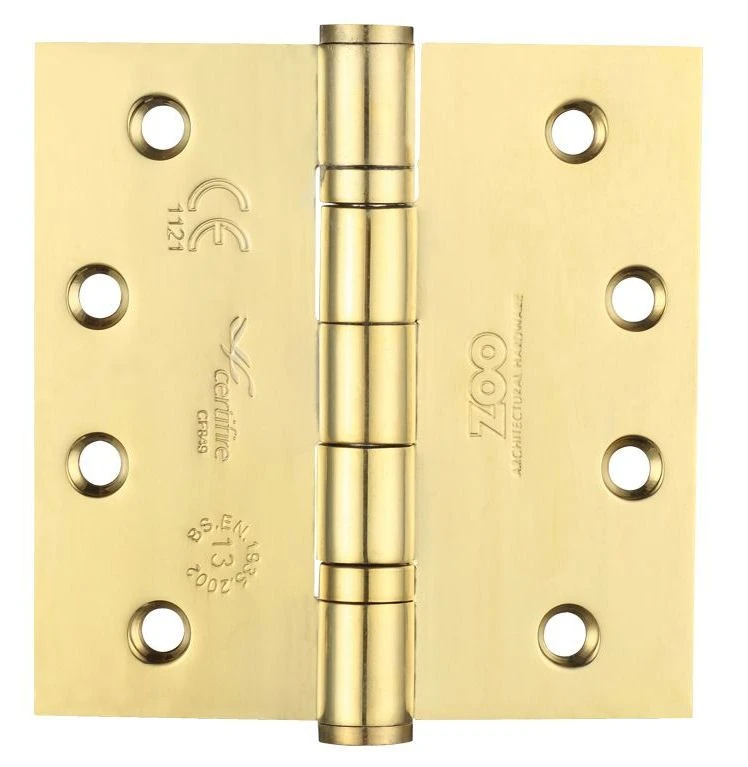

Ball Bearing Broad Butt Projection Hinges – Fire Rated – Grade 13 – CE / UKCA Marked – Certifire Approved – 120kg Weight Limit – 102mm X 102mm – Polished Brass PVD Plated

• Broad butt projection hinges for double, patio and French doors

• Hinges allow doors to fold back on its self 180 degrees

• Ball bearing design

• One hour fire rated – suitable for use on FD30 and FD60 fire doors.

• Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight

Finish

• PVD Brass

Dimensions

Available in 1 Size only

48184.1 – (102mm x 102mm x 3mm)

Important Info Before You Buy

• Broad butt projection hinges are used to help project or “throw” a door pastan obstruction so it can fold back on it’s self 180degrees

• Suitable for wooden doors

• Stainless steel base material, suitable for internal or external use.

• The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant

• To meet fire regulations 3 hinges must be fitted per door and intumescent pads must be fitted behind each leaf.

• Hinges are sold and priced in pairs and come supplied with screws
