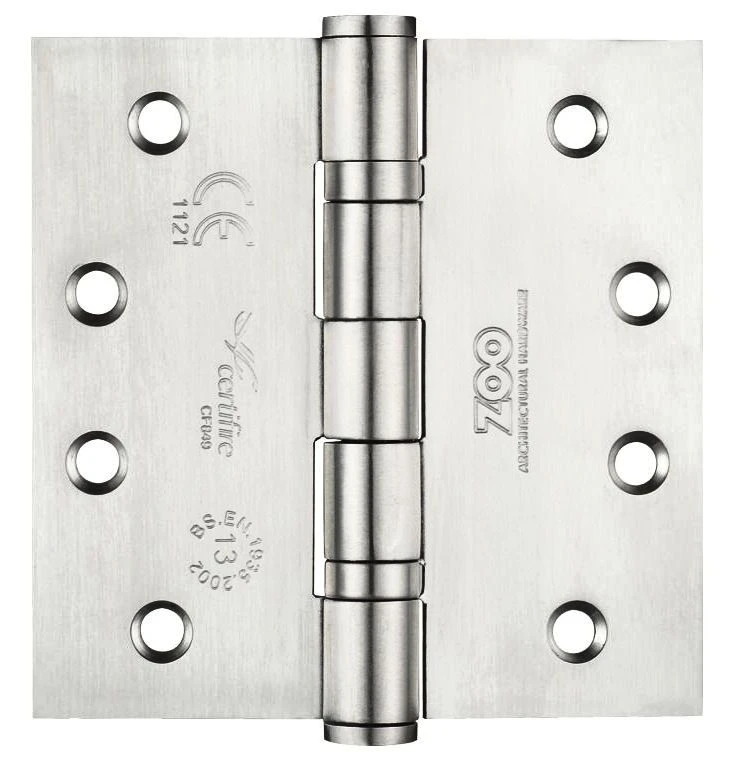

- Broad butt projection hinges for double, patio and French doors
- Hinges allow doors to fold back on its self 180 degrees
- Ball bearing design
- One hour fire rated – suitable for use on FD30 and FD60 fire doors.
- Tested and passed to British standard EN.1935 2002 suitable for doors up to 120kg in weight
Finish
- Satin stainless steel
Dimensions

Available in 1 Size only
20259.1 – (102mm x 102mm x 3mm)
| Â |
20259.1 |
Dimension On Diagram |
|---|---|---|
| Height |
102mm |
A |
| Width |
102mm |
B |
| Leaf Width |
43mm |
C |
| Projection given |
50mm |
D |
| Thickness |
3mm |
N/A |
Important Info Before You Buy
- Broad butt projection hinges are used to help project or “throw” a door pastan obstruction so it can fold back on it’s self 180degrees


- Suitable for wooden doors
- Stainless steel base material, suitable for internal or external use.
- The grade 13 certification allows the hinges to be used on doors up to 120kg in weight and is up to 1 hour fire resistant
- To meet fire regulations 3 hinges must be fitted per door and intumescent pads must be fitted behind each leaf.
- Hinges are sold and priced in pairs and come supplied with screws
