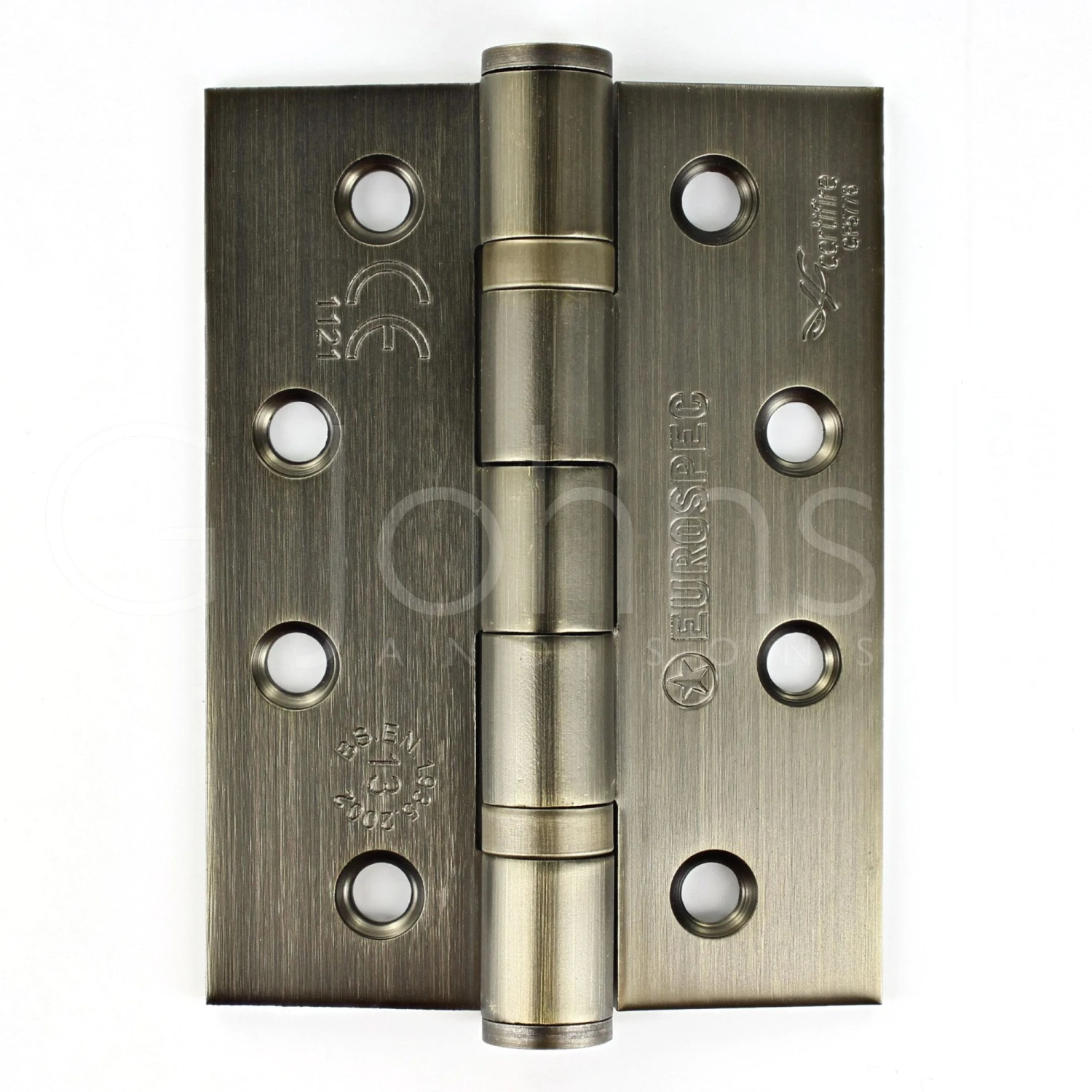

Ball Bearing Grade 13 Fire Rated Hinges – CE / UKCA Marked – Certifire Approved – 102mm X 76mm – Antique Brass (Lacquered)

• Grade 13 ball bearing hinges -102mm x 76mm (4″ x 3″)

• Antique brass finish

• One hour fire rated hinges suitable for use on internal or external timber doors

• Tested and passed to the British / European standard BS EN 1935 suitable for use on fire doors up to 120kg in weight

• Ball bearings located in the knuckle of hinge provide a smooth action and excellent strength.

Base Material

• Stainless steel

Finish

• Antique brass

Dimensions

	44768.1	Dimension On Diagram
Height (H)	102mm	A
Width (W)	76mm	B
Leaf Width	30mm	C
Knuckle Diameter	16mm	D
Thickness	3mm	N/A



Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number – 4-7-6-1-1-4-0-13.

• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• CE Marked / UKCA Marked

• Certifire approved CF339



Useage

• Suitable for use 44mm and 54mm thick wooden doors

• To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

• Sold and priced in pairs (2 hinges) and supplied with fixing screws.
