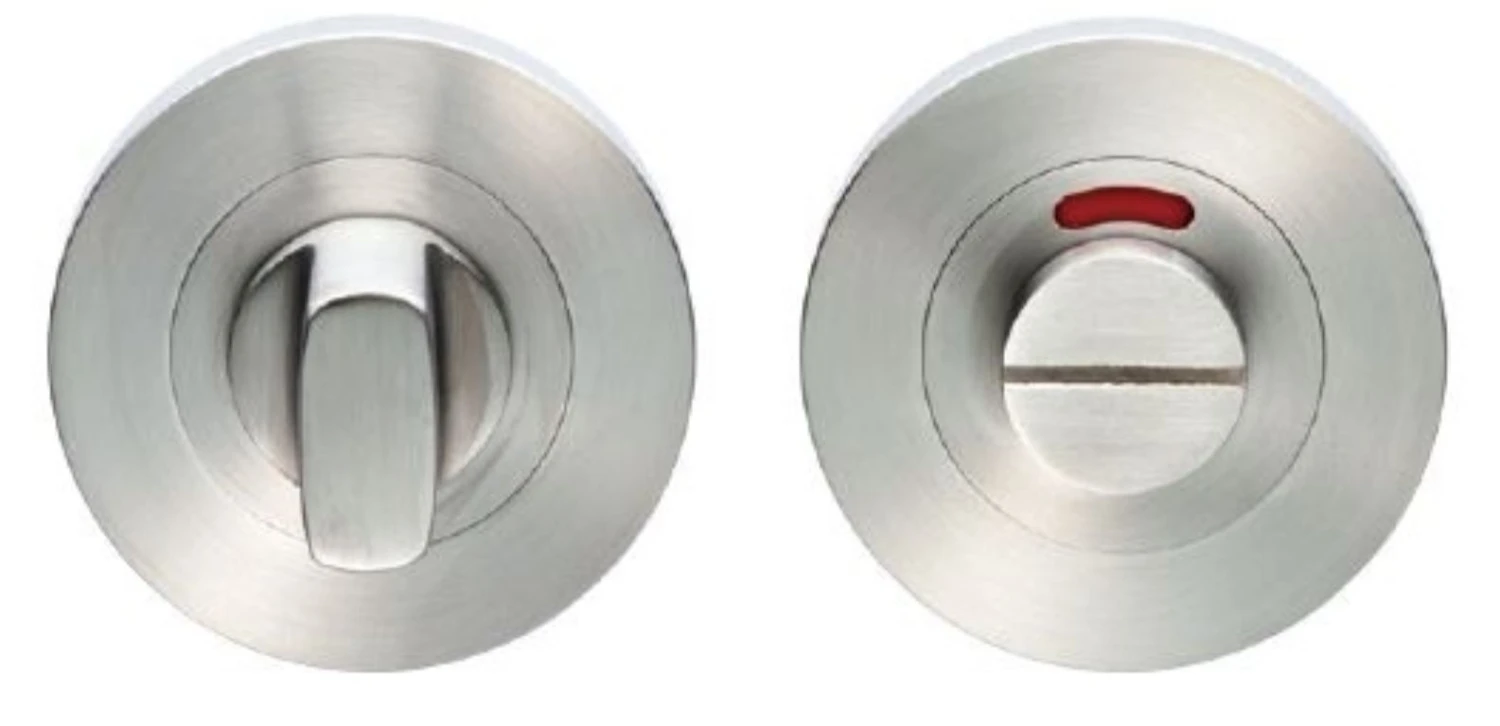

Bathroom Turn & Release Set – With Red & White Indicator – Grade 4 Collection – Satin Stainless Steel

• Bathroom turn & release set

• Large turn meets the dimensional requirements of BS8300 and Approved Doc M (ADM)

• Red & white visual indicator

• From the commercial grade 4 collection, designed for use in commercial and public buildings

• Screw on rose

• A turn and release consists of two parts

  1 – a snib turn which is fitted on the inside of the bathroom and is used to lock the bathroom or toilet by twisting the snib a quarter turn to the left or right

  2 – a release which is fitted on the outside of the bathroom. If some gets locked in the bathroom or toilet the snib can be released in an emergency by twisting a coin or screwdriver in the slotted part of the rose a quarter turn

• This turn and release set uses a 5mm x 5mm spindle (the metal shaft that goes through the door) this suits standard UK bath locks

• A turn and release is only the cosmetic part that you see on the outside of the door and requires a mechanism to work in conjunction with it, such as a bathroom lock or deadbolt

Finish

• Satin stainless steel – grade 316

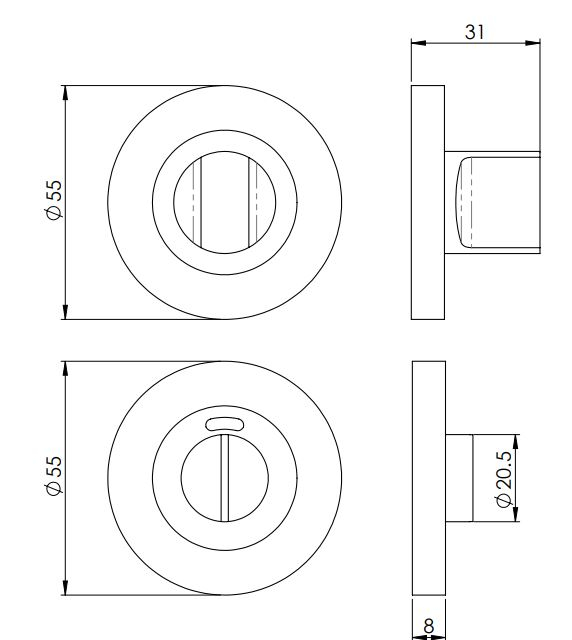

Dimensions

• Rose Diameter – 55mm
• Rose Depth – 8mm

Important Info Before You Buy

• Can also be used as a privacy lock for bedrooms
• Supplied with 5mm spindle

• PLEASE NOTE – THIS ITEM MUST BE USED IN CONJUNCTION WITH A DEADBOLT OR BATHROOM MORTICE LOCK
