Brompton Knurled Pattern Window Stay – Available In Three Sizes – Matt Black

• The Brompton suite is a contemporary design, and features a textured knurled pattern
• The industrial styling of the diamond effect creates a modern range of products that can be used throughout your property

• Heavy weight pattern

• Knurled end design handle

• A casement stay is the handle or “arm” that fixes to the bottom of the window to help push the window open and pull the window closed

• The casement arm sits on pins this makes the window “stay” in position when in the open or closed position

Finish

• Matt Black

Dimensions

Available in three lengths

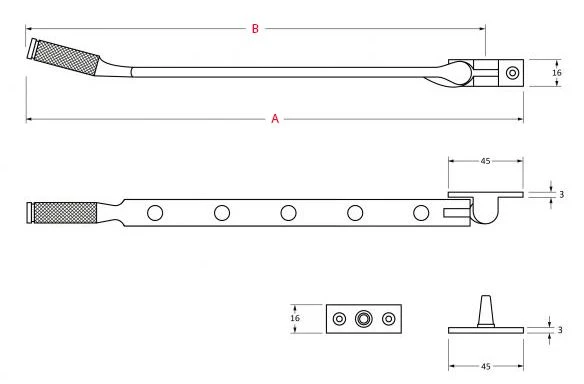

– Overall Size A On The Above Diagram

• 248mm Overall Length (8 Inches) – 49036.1
• 292mm Overall Length (10 Inches) – 49036.2
• 338mm Overall Length (12 Inches) – 49036.3

 – Stay arm B On The Above Diagram

• 226mm – 49036.1
• 273mm – 49036.2
• 315mm – 49036.3

Important Info Before You Buy

• Suitable for use on wooden windows

• Suits standard outward opening casement windows

• Comes supplied with fixing screws and two standard pins

• Designed to match the Brompton window espags in the range
