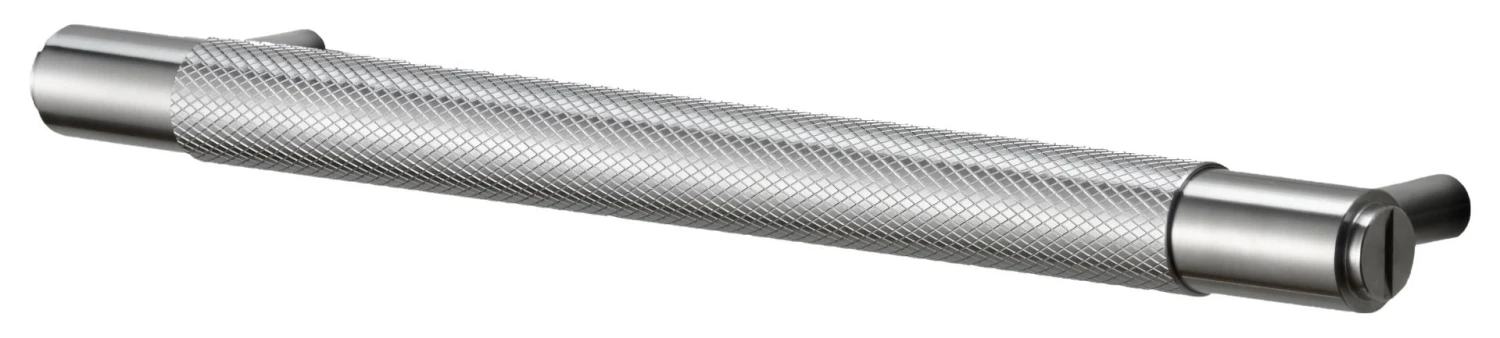

Buster & Punch Diamond Cut Knurled Pattern Pull Bar Handle – Available In Four Sizes – Satin Stainless Steel

• Buster & Punch knurled pattern cabinet pull bar handle, satin stainless steel.

• Chunky industrial design with diamond cut knurled pattern grip.

• Ideal for use on, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

• Available in four sizes:

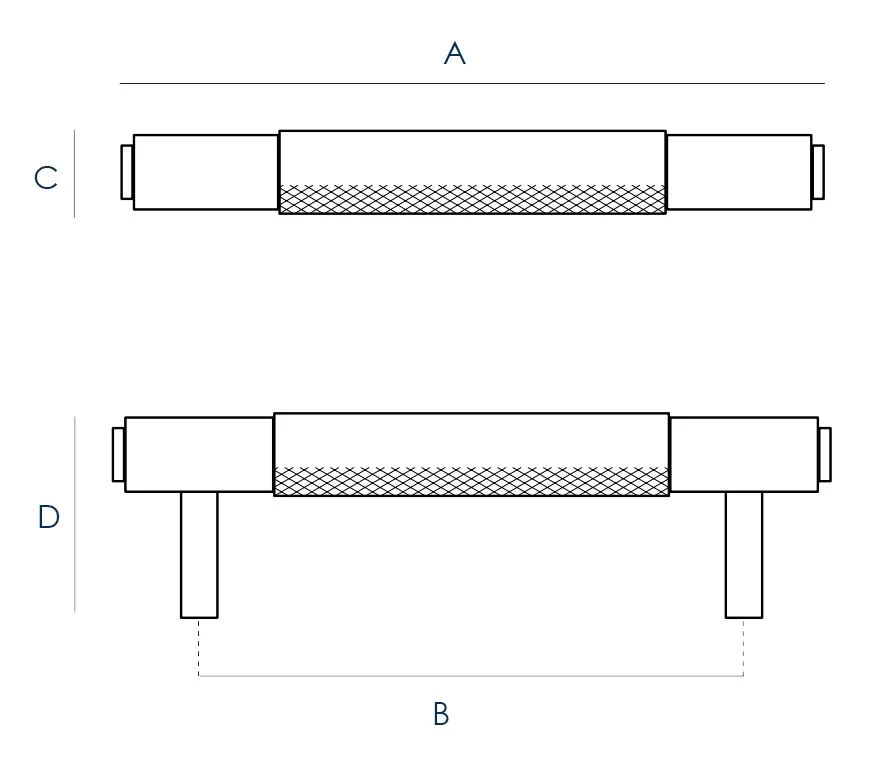

Item Code	Overall Length (A)	Fixing Centres (B)	Bar Diameter (C)	Projection (D)
48279.1	160mm	125mm	18mm	47mm
48279.2	260mm	225mm	18mm	47mm
48279.3	360mm	325mm	18mm	47mm
48279.4	770mm	725mm	18mm	50mm

Finish Details

• Satin Stainless Steel

Fixings

• This cupboard handle is fitted via M5 bolts from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.

• Supplied with a 25mm long bolt – suitable for use on 18mm thick doors.

• For doors thicker then 18mm, longer M5 fixing bolts are required, please contact us with your requirements.

Unit Of Sale

• Each – (1 x cupboard handle).
