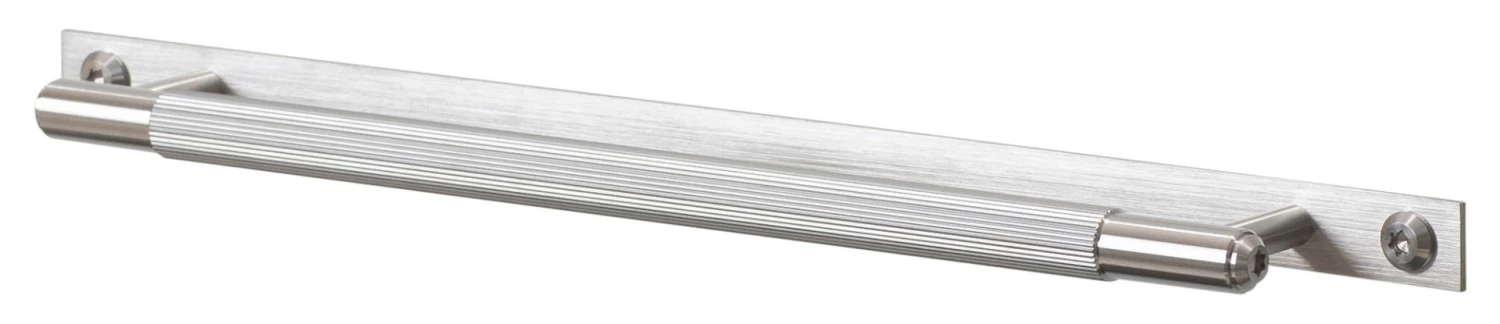

Buster & Punch Linear Pattern Cabinet Pull Bar Handle With Back Plate – Available In Three Sizes – Satin Stainless Steel

• Buster & Punch linear pattern cabinet pull bar handle with backplate, satin stainless steel.

• Industrial design with long linear ribbed pattern and solid metal backplate, finished with torx screws.

• Ideal for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

• Available in three sizes:

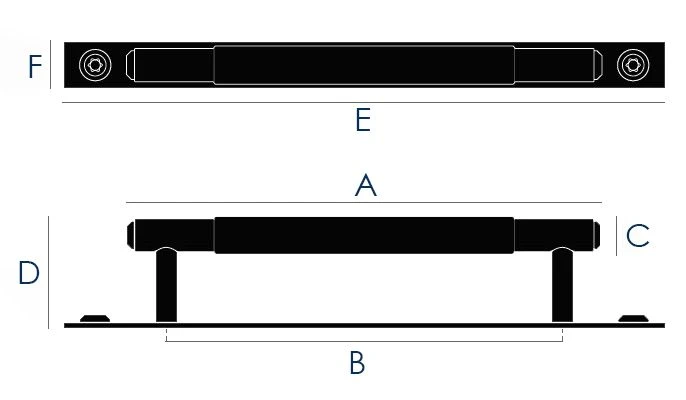

Item Code	Overall Length (A)	Fixing Centres (B)	Bar Diameter (C)	Projection (D)	Backplate Length (E)	Backplate Width (F)
48259.1	150mm	125mm	12mm	36mm	190mm	15mm
48259.2	250mm	225mm	12mm	36mm	290mm	15mm
48259.3	350mm	325mm	12mm	36mm	390mm	15mm

Finish Details

• Satin Stainless Steel

Fixings

• This cupboard handle is fitted via M5 bolts from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.

• Supplied with a 25mm long bolt – suitable for use on 18mm thick doors.

• For doors thicker then 18mm, longer M5 fixing bolts are required, please contact us with your requirements.

Unit Of Sale

• Each – (1 x cupboard handle).
