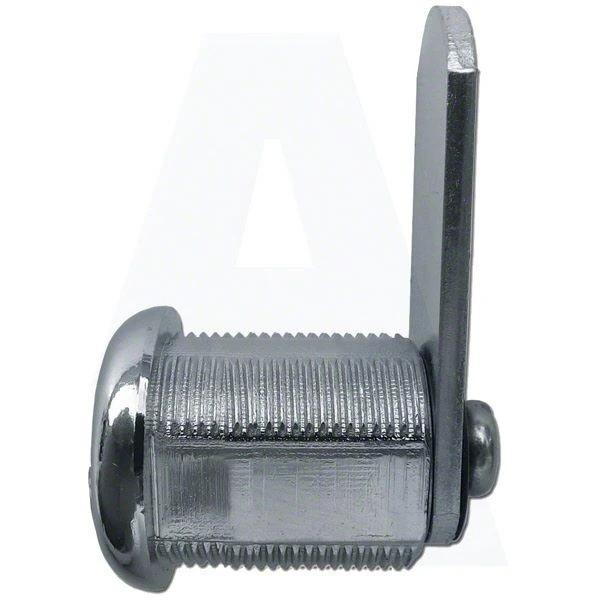

Cam Locks For Cabinet & Cupboard Doors – Keyed Alike

• Cam lock for use on cabinet and cupboard doors.

• 180 degree clockwise movement.

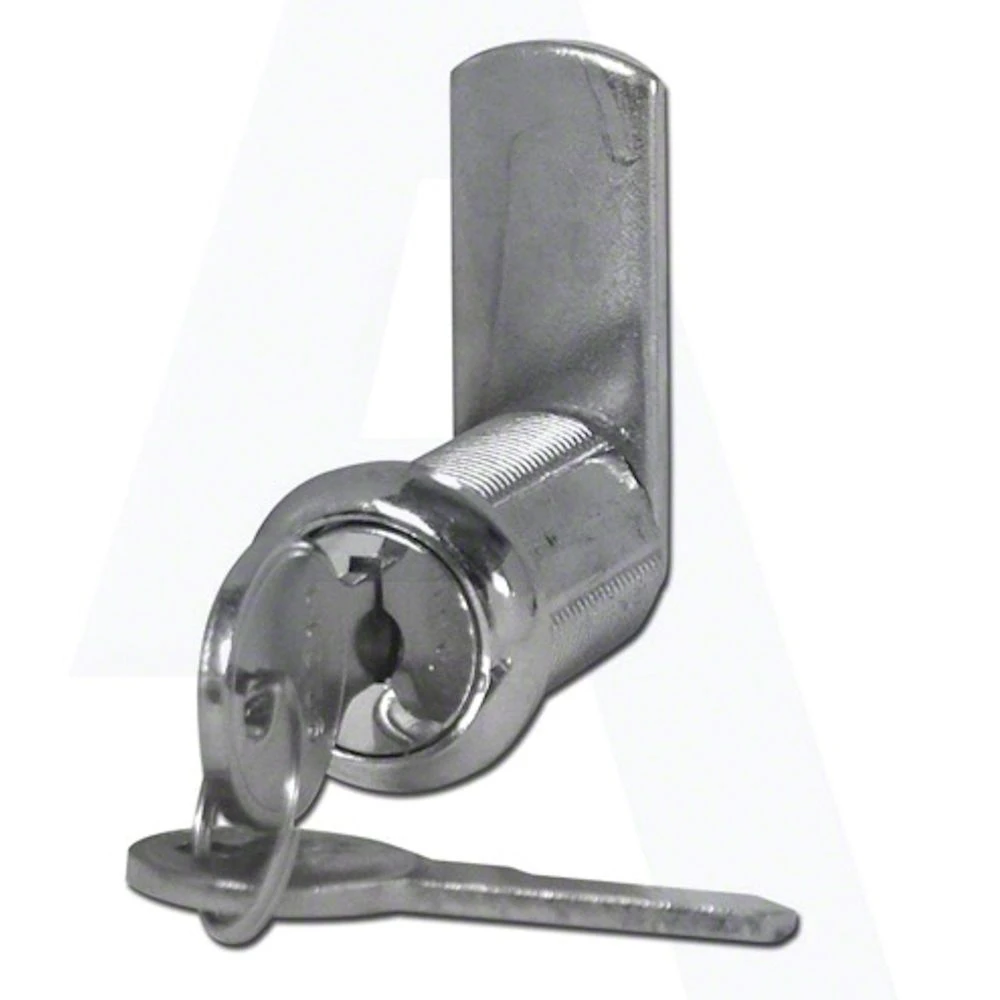

• Cam Locks  are supplied with 2 x keys



Keyed Alike Locks

• This cam lock for cabinet and cupboard doors is keyed alike. Each cylinder is keyed alike (when ordering 2 or more cylinders each cylinder will operate under the same key).

• Please note cylinders are keyed alike for the same size length only (when ordering different lengths, the cylinders will not be keyed alike).

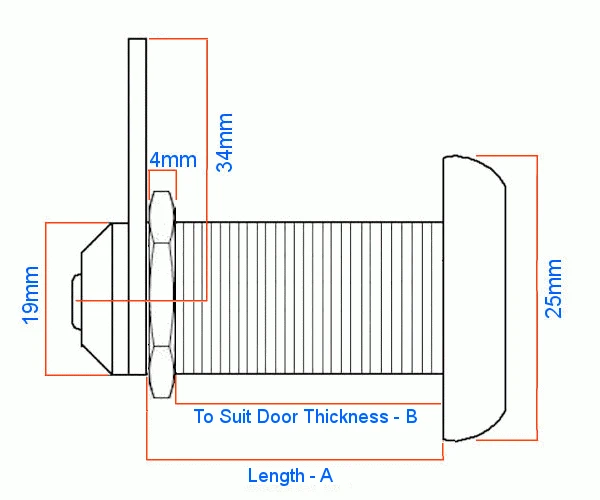

Dimensions

	41735.1	41735.2	41735.3	41735.4	Dimension On Diagram
Body Diameter	19mm	19mm	19mm	19mm	N/A
Face Diameter	25mm	25mm	25mm	25mm	N/A
Cam Length	34mm	34mm	34mm	34mm	N/A
Body Length	20mm	22mm	27mm	32mm	A
Nut Thickness	4mm	4mm	4mm	4mm	N/A
To Suit  Max Door Thickness	16mm	18mm	23mm	28mm	B



Unit Of Sale

• Cam lock is sold individually (each).

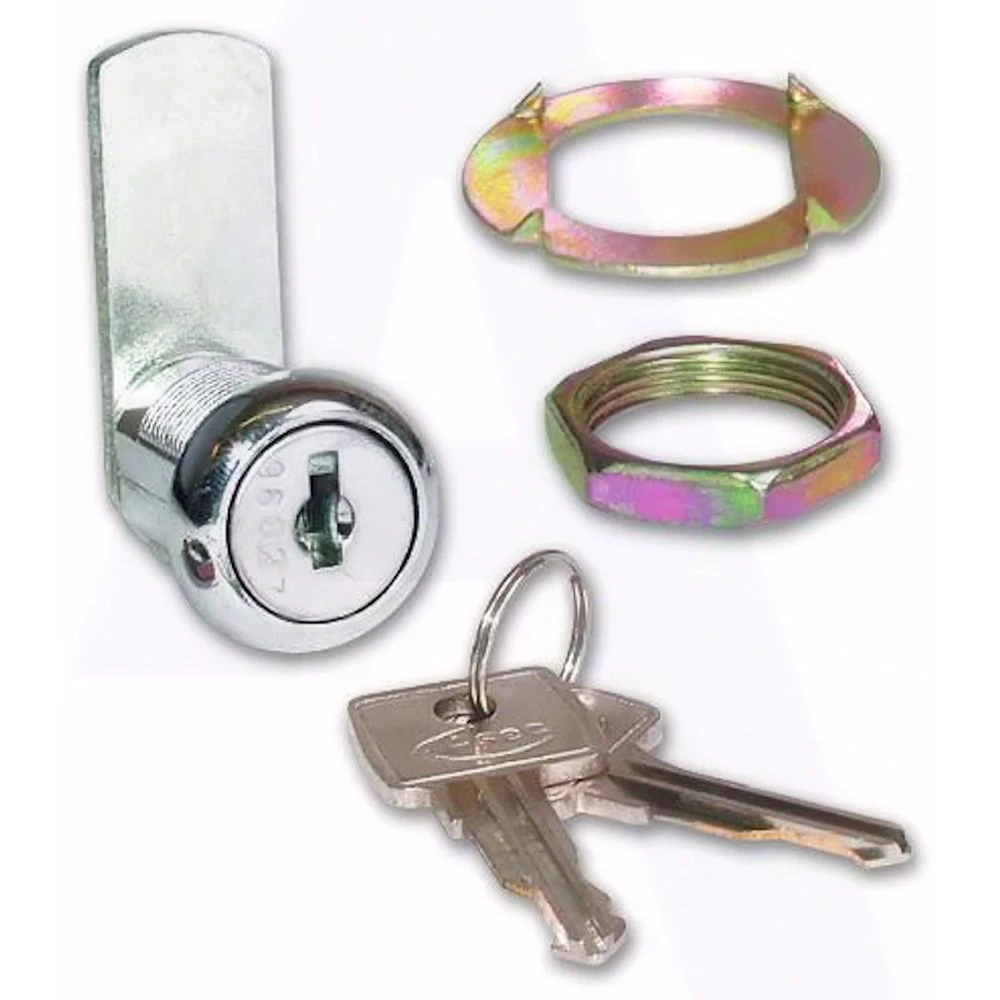

• Our cam locks are supplied with 2 x keys, fixing nut and angle plate..
