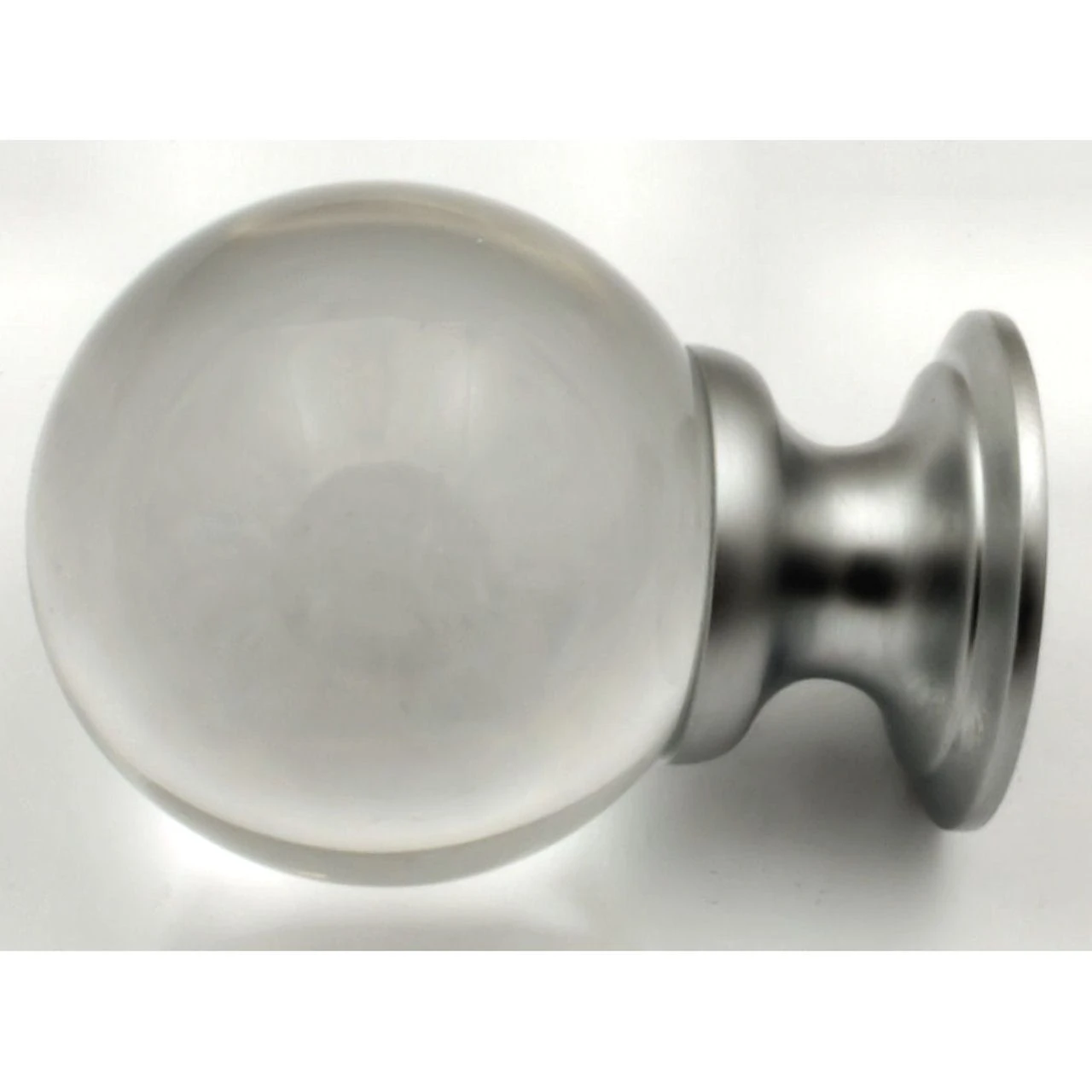

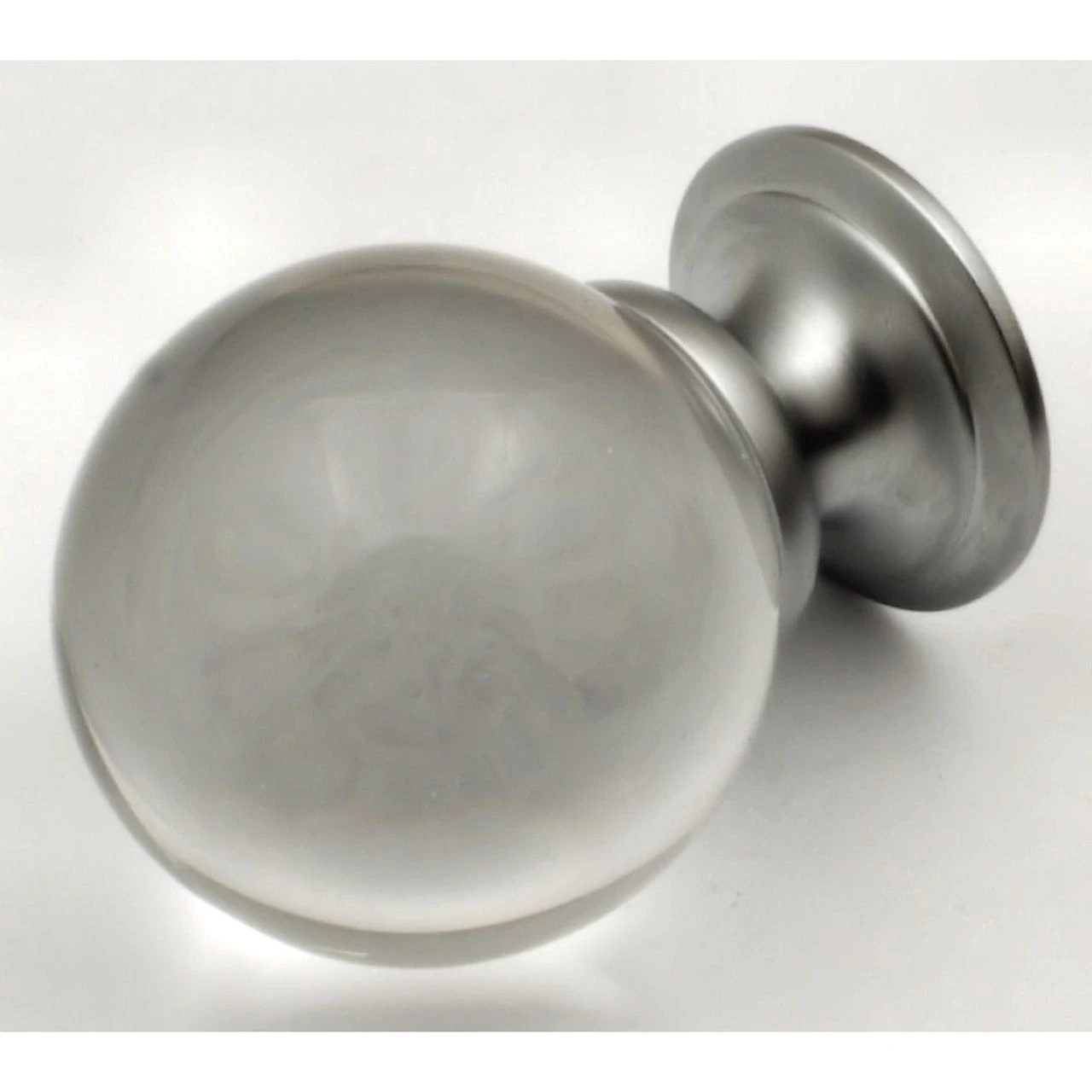

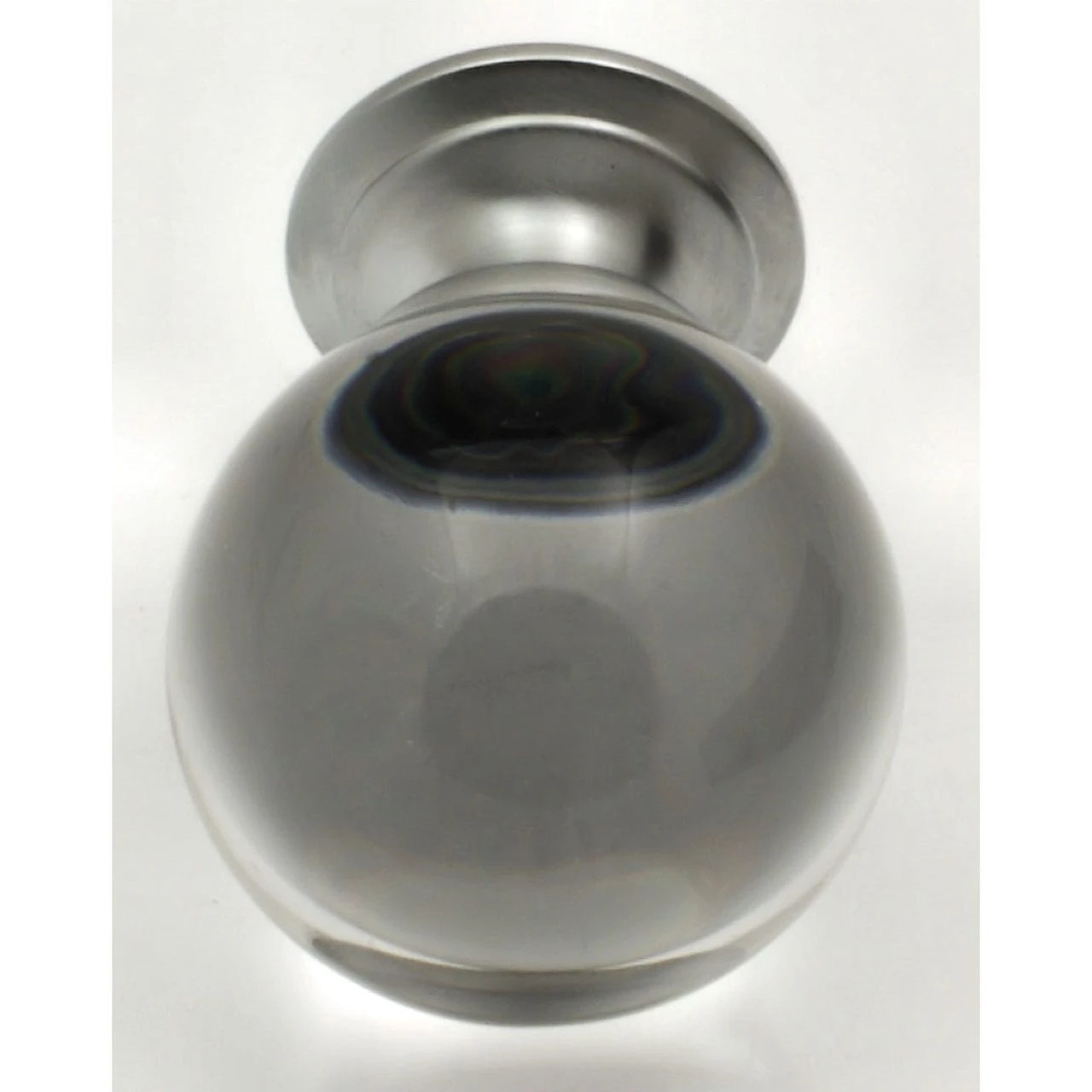

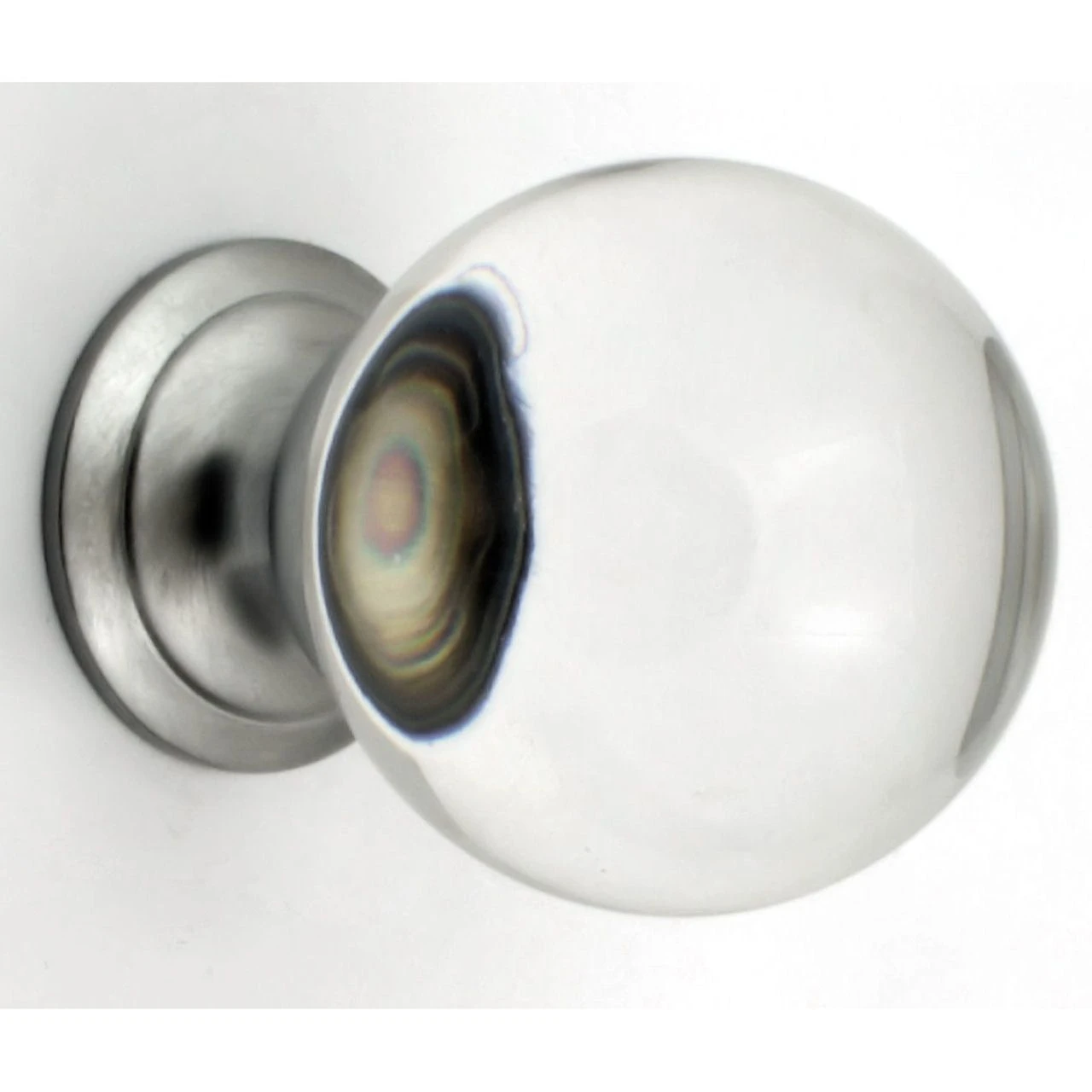

Clear Glass Ball Shape Cupboard Knobs – 3 Sizes – With Satin Chrome Rose

• Ball shape cupboard door knobs made from a clear / transparent glass with a brushed satin chrome plated back plate.

• This popular glass range is ideal for use on classic or contemporary units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

• Available in 3 sizes from a small 25mm diameter up to a larger 35mm diameter.

Size Details

Item Code	Knob Diameter	Backplate (Rose) Diameter	Projection From Door
30380.1	25mm	20mm	36mm
30380.2	30mm	26mm	43mm
30380.3	35mm	26mm	48mm

Base Material

• Knob made from clear glass.
• Backplate (rose) made from solid brass.

Finish Details

• Clear / transparent glass knob.
• Satin chrome – this item has been chrome plated and satinised to produce a matt brushed finish.
• Satin chrome is a grey colour with blue undertones and visible brush marks in the surface of the item.

Alternative Finishes Available

• Polished chrome
• Polished brass

Fixings

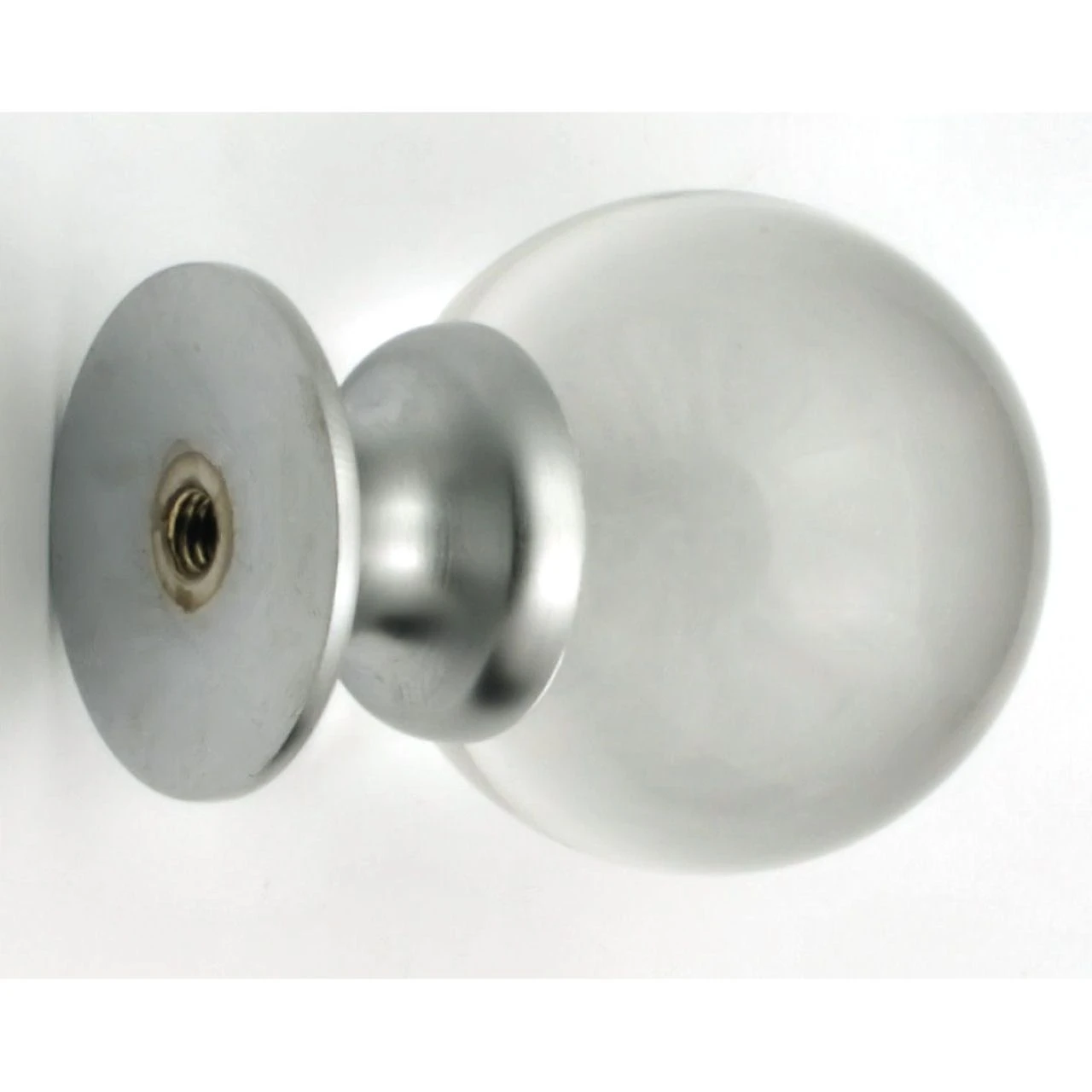

• This cupboard knob is fitted via a M4 bolt from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors.
• Comes supplied with a 25mm long bolt – suitable for use on 18mm thick doors.
• For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below.)

Alternative Fixings

• For fixing two cupboard knobs back to back on either side of a door, a length of M4 stud is required to screw the two knobs together. – See related products below.

• For face fixing a cupboard knob by screwing it directly into the front of a wooden door or drawer, a dual M4 / Wood screw is required. – See related products below.

Usage

• Suitable for internal use.
• For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below.)


  Unit Of Sale

• These cupboard knobs are sold individually – (Each.)
