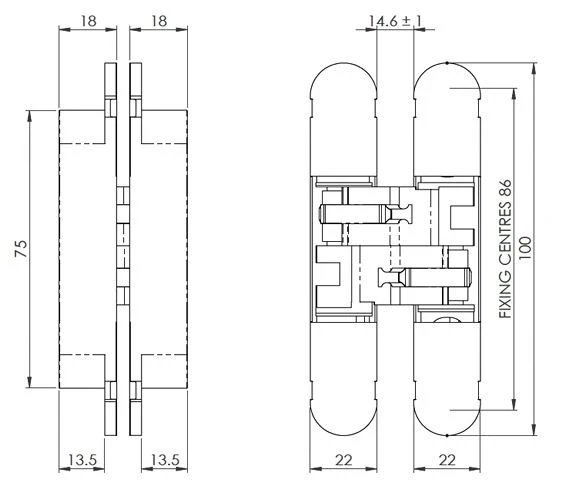

Concealed Adjustable Hinge For Invisible Doors – 100mm X 22mm – Satin Nickel

• Satin nickel concealed hinge.

• Ideal for use with flush doors, where an invisible or hidden door look is required.

• Cover caps hide the adjustment and fixing screws for an a minimalist look.

• Totally recessed making the gap between door and frame very small.

• Easy to install and maintain

• 3D adjustable design (door can be adjusted vertically, horizontally and laterally).

• Opening angle up to 180 (when used with architrave free door frames).

• Max door weight with 2 x hinges fitted – 25kg

• Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) – 30kg

• Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) – 40kg



Finish

• Satin nickel.

• 3D Adjustable
• +/- 3mm Side
• +/- 3mm Height
• +/- 1.5mm Compression
