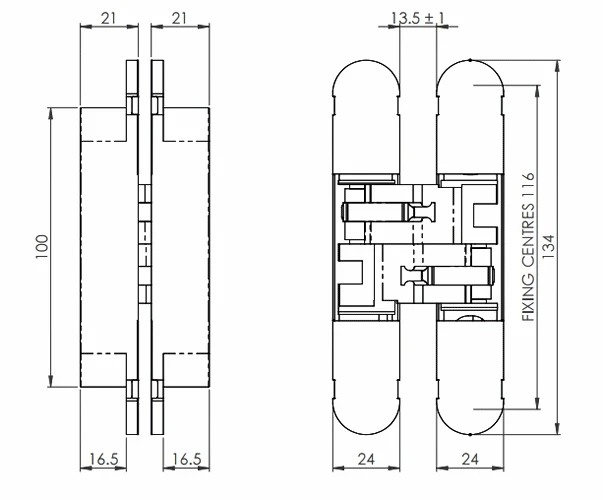

Concealed Adjustable Hinge For Invisible Doors – 134mm X 24mm – Dark Bronze (Lacquered)

• 134mm x 24mm, dark bronze finish adjustable concealed door hinge.

• Minimum door thickness 30mm.

• Ideal for use with flush doors, where an invisible or hidden door look is required.

• Cover caps hide the adjustment and fixing screws for an a minimalist look.

• Totally recessed making the gap between door and frame very small.

• Easy to install and maintain

• 3D adjustable design (door can be adjusted vertically, horizontally and laterally).

• Opening angle up to 180 (when used with architrave free door frames).

Weight Limits

• Max door weight with 2 x hinges fitted – 40kg

• Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) – 60kg

• Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) – 65kg

• Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) – 70kg

Finish

• Dark bronze.

• 3D Adjustable
• +/- 3mm Side
• +/- 3mm Height
• +/- 1.5mm Compression
