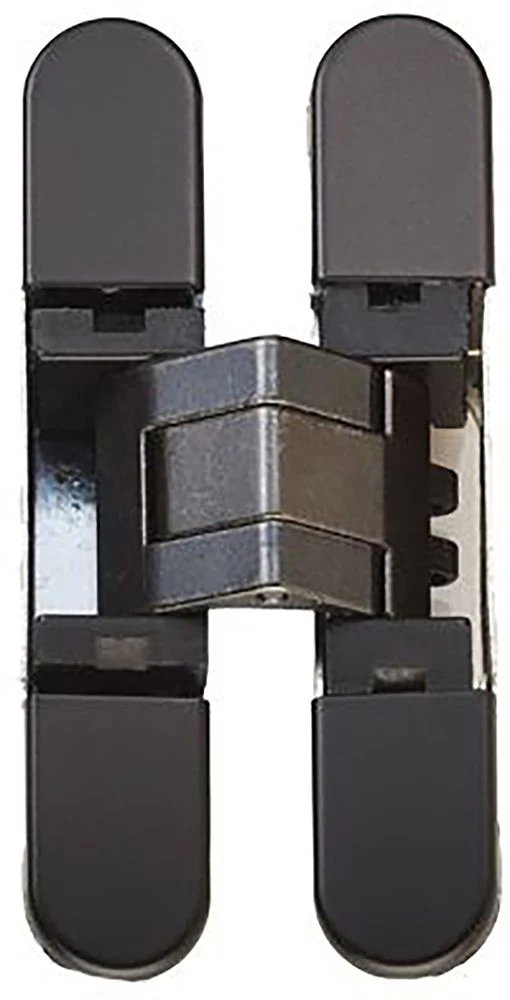

Concealed Adjustable Hinge For Invisible Doors – Suitable For 18mm Doors – 76mm X 14mm – Matt Black

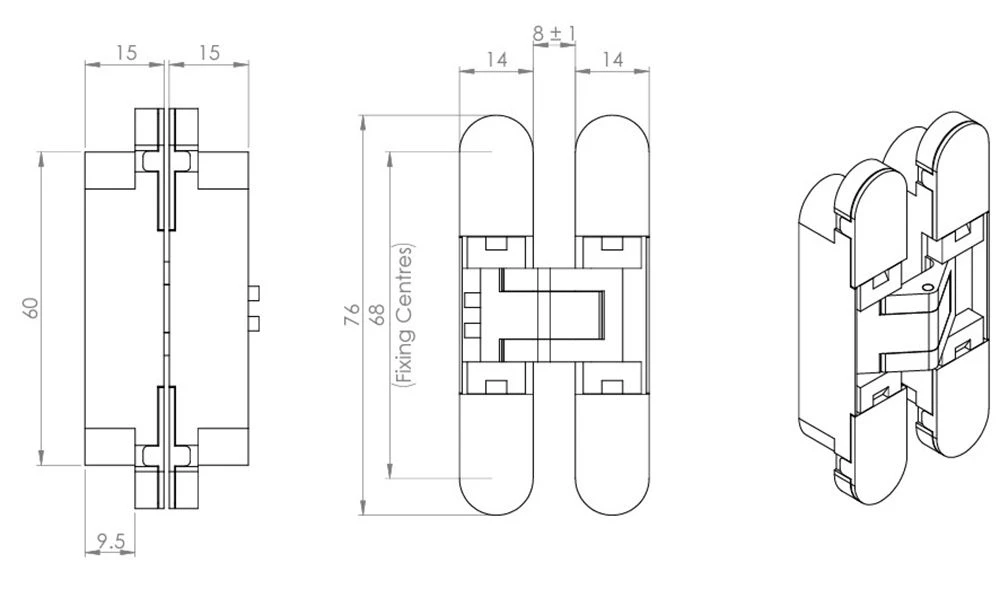

• 76mm x 14mm adjustable concealed door hinge

• Maximum door thickness 18mm.

• Ideal for use with flush doors, where an invisible or hidden cupboard door look is required.

• Cover caps hide the adjustment and fixing screws for an a minimalist look.

• Totally recessed making the gap between door and frame very small.

• Easy to install and maintain

• 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
• Opening angle up to 180 (when used with architrave free door frames).

Weight Limits

• Max door weight with 2 x hinges fitted – 12kg
• Max door weight with 3 x hinges fitted – 16kg
• Max door weight with 4 x hinges fitted – 21kg

Finish

• Matt Black

Dimensions

• 3D Adjustable
• +/- 2.5mm Side
• +/- 2.5mm Height
• +/- 1.5mm Compression

Installation & Adjustment Videos
