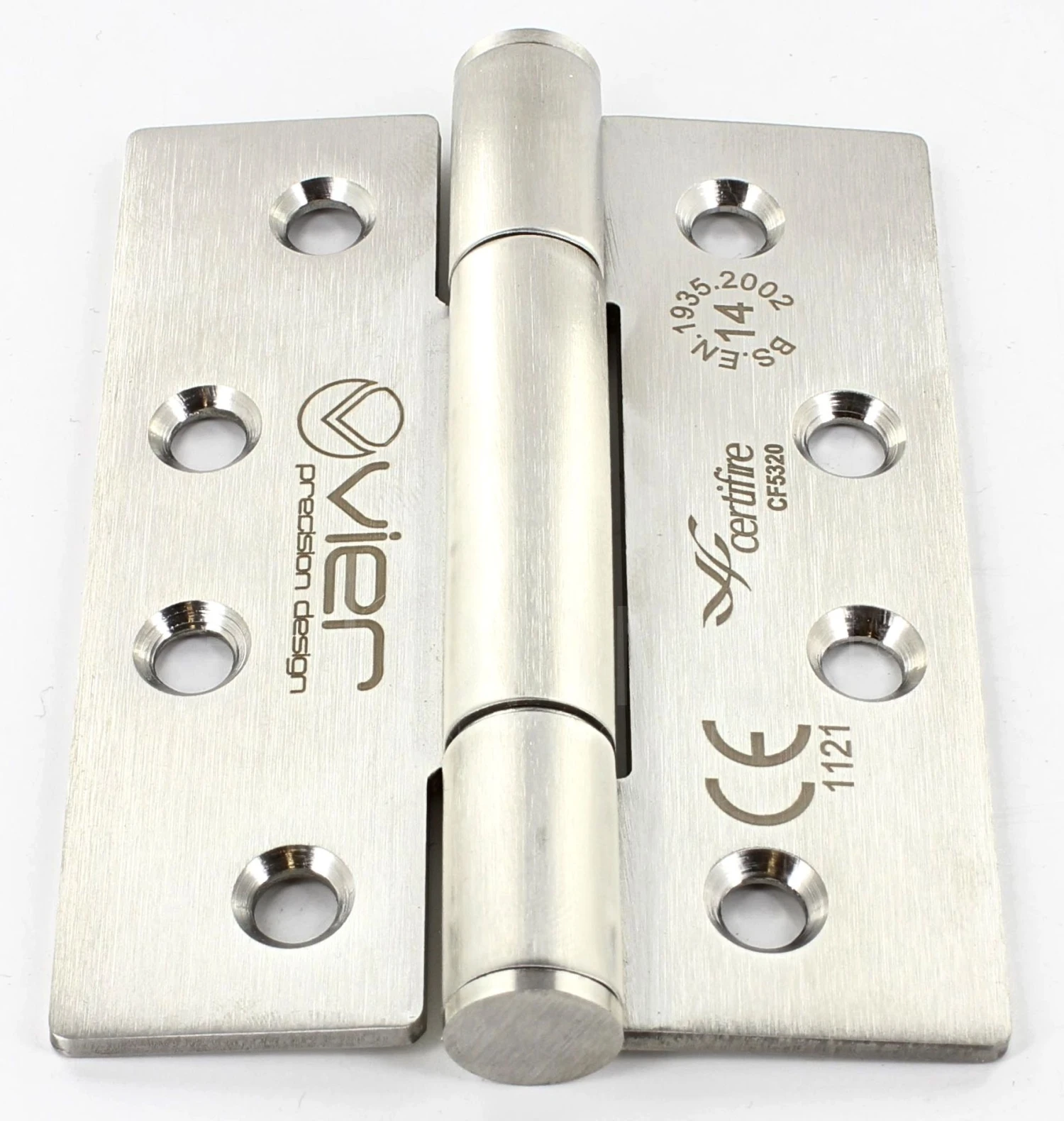

Concealed Nylon Bearing Grade 14 Hinges – Self Lubricating – CE / UKCA Marked – Fired Rated – Certifire Approved – 160kg Weight Limit – 102mm X 76mm – Satin Stainless Steel

• Grade 14 concealed polymer bearing self-lubricating satin stainless steel hinges.

• Fire rated, CE Marked / UKCA Marked and Certifire approved.

• These Hi-Load hinges have been designed and tested for high use, heavy commercial grade doors

• Designed to “Fit and Forget” these hinges have excellent wear-ability with self-lubricating polymer bearings.

• Tested and passed to British standard EN.1935 2002 overall grade 14.

• Tested to grade 7 door mass suitable for doors up to 160kg in weight.

• The bearing avoid metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant, This construction eliminates the wear and regular maintenance required by other types of hinge.

Dimensions

	41734	Dimension On Diagram
Height (H)	102mm	A
Width (W)	76mm	B
Leaf Width	30mm	C
Thickness	3mm	N/A

Base Material

• Stainless steel

Finish

• Satin stainless steel – (brushed finish)

Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number – 4-7-7-1-1-4-0-14.

• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• CE Marked / UKCA Marked

• Certifire approved

Usage

• Suitable for use 44mm and 54mm thick wooden doors

• To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

• Sold and priced in pairs (2 hinges) supplied with fixing screws.
