Sale!
Concealed SOSS Style Hinges – 45mm X 12.4mm – Satin Chrome
Original price was: $12.07.$8.45Current price is: $8.45.
- Sustainable materials, for a better tomorrow.
- 100% High-Quality Guarantee
- Protect Your Information, Shop with Safe Payments
- Get the Best for Less
- Concealed SOSS style hinges
- Our SOSS hinges come in sizes – 45mm x 12.4mm
- Our SOSS hinge are suitable for door thickness 19mm – 26 mm

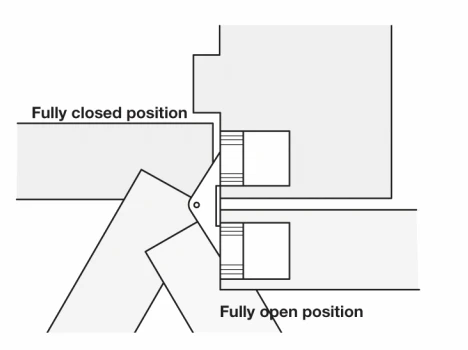

- Opening angle 180 degree one way
- Zinc alloy hinge body and links
- Our SOSS Hinges come in satin chrome plated finish
- Max door weight (per 3 hinges) – 10kg
- The Concealed SOSS hinges come complete with fixing Screws
- PLEASE NOTE THE SOSS STYLE CONCEALED HINGES ARE SOLD INDIVIDUALLY – (EACH HINGE)
Â
Â

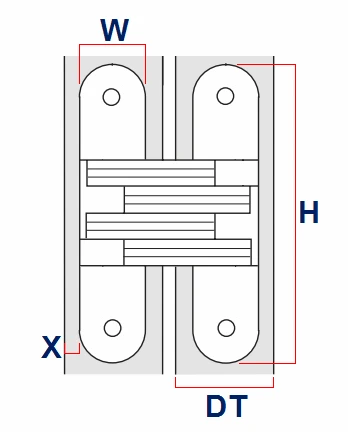

Dimensions
Â
| Item Code | Height (H) | Leaf Width (W) | To Suit Door Thickness (DT) |
Max Door Weight- (Per 3 Hinges) |
Distance To Door Edge (X) | Plate Thickness (A) | Mortice Depth (B) | Mortice Height (C) |
|---|---|---|---|---|---|---|---|---|
|  31516.1 |  45mm | 12.4mm |  19mm – 26mm | 10kg | 3.2mm |  4.7mm |  18.2mm | 18.3mm |

| Item | 31516 |
|---|---|
| Item Code | 31516 |
| Finish | Satin Chrome |
| Dimensions | 45mm x 12.4mm |
| Sold Per | Each |
| Availability | Stock product – please allow 1-3 days for delivery |
