Contemporary Square Section Bow Handles – 3 Sizes – Polished Chrome

• Contemporary design square section bow shape cabinet door handles.

• Shiny polished chrome plated finish.

• Square section bar measures 10mm x 12mm.

• Available in 3 sizes including long lengths up to 407mm long. Ideal for use on tall doors or wide drawer units.

• Comes supplied with M4 fixing bolts.

• Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

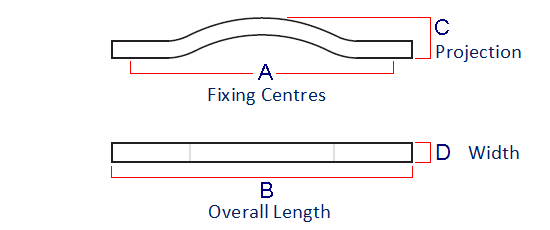

Size Details

Item Code	Bolt centers (A)	Overall Length (B)	Projection (C)	Width (D)	Bar Size
30366.1	160mm	240mm	35mm	12mm	12mm x 10mm
30366.2	192mm	272mm	35mm	12mm	12mm x 10mm
30366.3	320mm	410mm	35mm	12mm	12mm x 10mm

Base Material

• Made from aluminium.

Finish Details

• Polished chrome – a highly shiny, smooth, mirror like finish. with a very slight blue tint.
• The aluminium base material has been highly polished and then chrome plated to produce this finish.

Alternative Finishes Available

• Satin nickel – (brushed finish.)

Fixings

• This handle is fitted via M4 bolts from the rear of the door / drawer – see below diagram.

• Comes supplied with M4 (diameter) x 25mm (long) bolts – Suitable for use on 18mm thick doors.
• For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below.)

Usage

• Suitable for internal use.
• For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below.)

Unit Of Sale

• This cabinet handle is sold individually – (Each)
