Corfu – Round Rose Lever Handles – Satin Stainless Steel

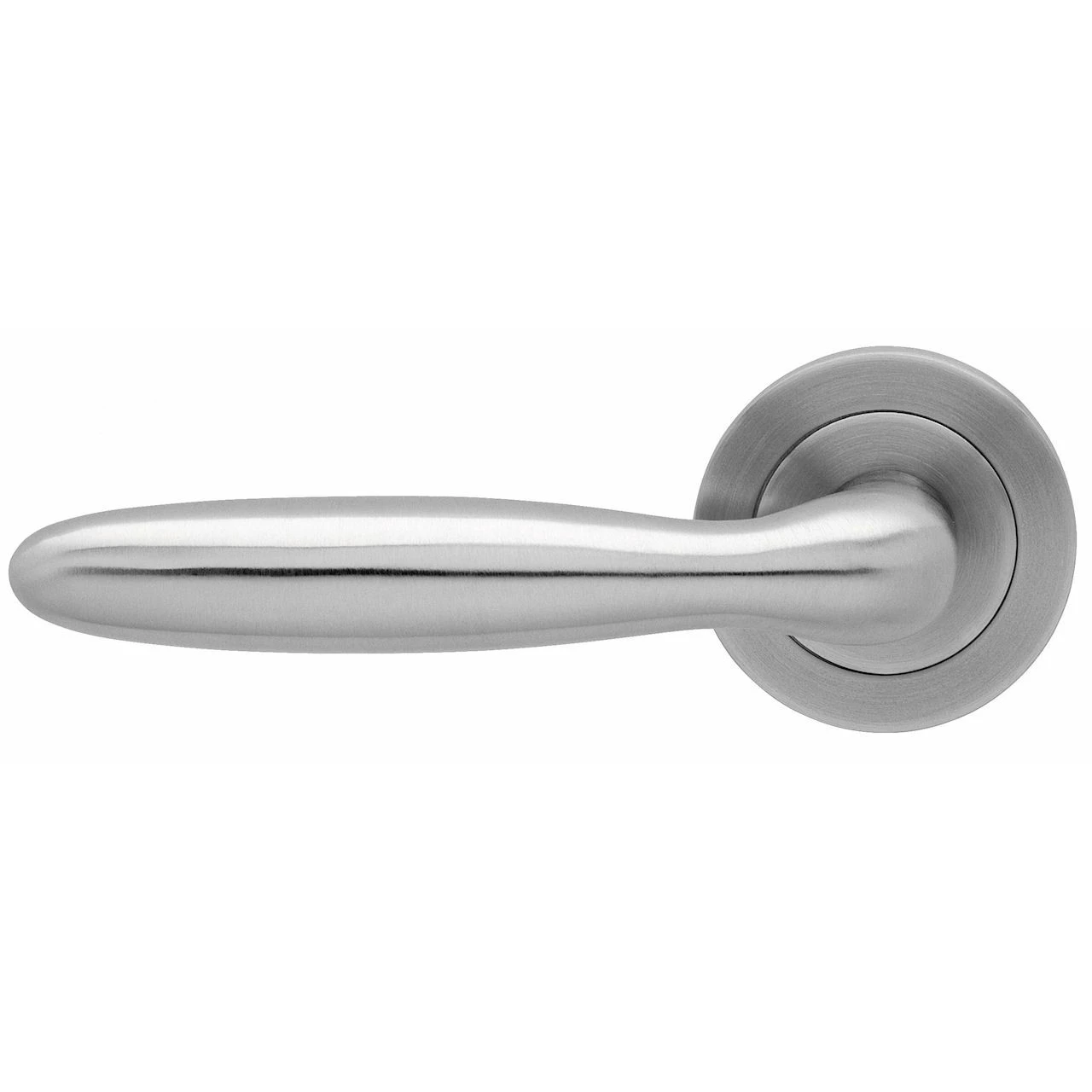

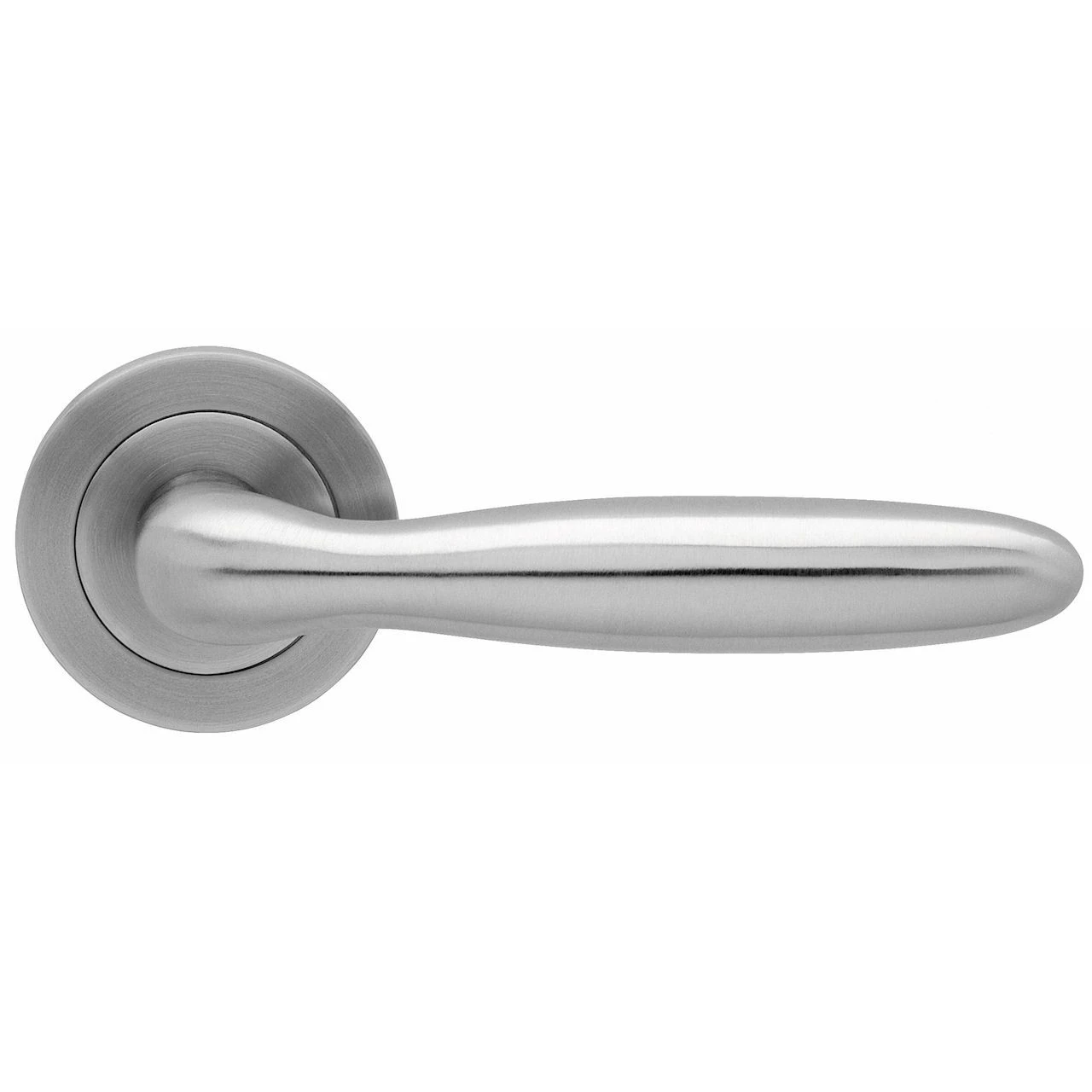

• The ER24-OS 71 Corfu lever from the Karcher Design door handle collection is a contemporary design satin (brushed) finish lever handle made from stainless steel.

• High architectural quality.

• Made from grade 304 stainless steel. – Satin (brushed) finish

• Uses the patented Karcher Design 3 piece rose fitting system to make these handles very strong once fitted to the door.

• Suitable residential or commercial use.

• Matching satin stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.
• Please allow approximately 7 days for delivery.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

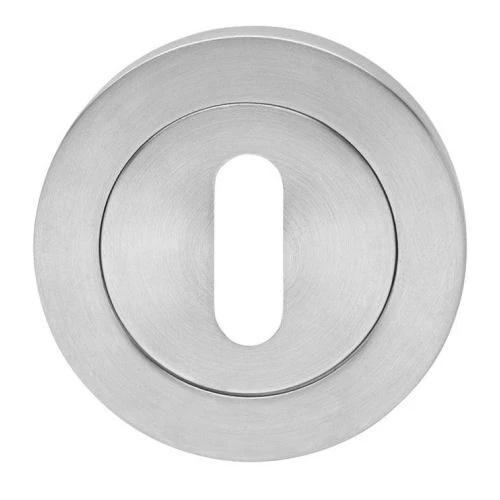

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”) – EZ1332-BB 71

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders) – EZ1332-PZ 71

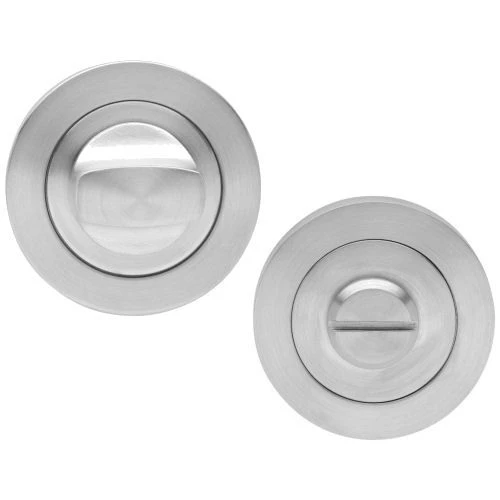

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors) – CEZ1332-BAD 71

Base Material

• Made from grade 304 stainless steel.

Finish Details

• Satin stainless steel is a grey colour with very slight golden undertones. Satin stainless steel has been “brushed” to produce visible brush marks in the surface of the item.

Alternative Finishes Available

• Dual finish – polished zirconium and satin stainless steel.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter – 52mm
• Rose Thickness – 10mm
• Lever Length – 128mm
• See technical information tab for diagram and further details.

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Comes supplied with male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Lever is fitted to the door using the Karcher Design patented 3 piece rose system.

Usage

• Suitable for residential or commercial use.
• Suitable for internal or external use.

Standards This Product Conforms To

• EN 1906 – European performance test standards for lever handles.
• Category of use 3 – High frequency of use by public or others with little incentive to exercise with care and with a high chance of misuse.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
