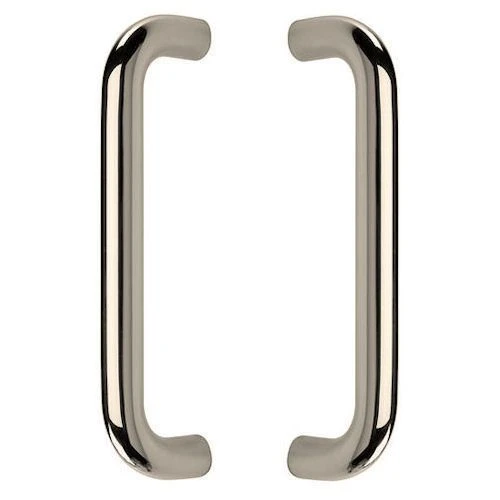

D Shaped Pull Handles – Back To Back Fixing Pair – Polished Stainless Steel

• D shape stainless steel pull handles

• Shiny polished finish

• Ideal for use on for internal doors and external entrance doors.

• Back to back fixing pair allows for handles to be fitted on both sides of the door.

• Suitable for use on timber, metal or glass doors.

• To suit doors between 6mm – 44mm thick.

Above diagram shows how a bolt through pull handle is fitted to a wooden door

Finish

• Polished stainless steel

• Satin stainless steel

Dimensions

Item	Bolt centers (A)	Diameter (B)	Projection (C)
31215.1	150mm	19mm	64mm
31215.2	225mm	19mm	64mm
31215.3	300mm	19mm	64mm
31215.4	450mm	19mm	64mm
31215.5	600mm	19mm	64mm
31215.6	225mm	22mm	85mm
31215.7	300mm	22mm	85mm
31215.8	425mm	22mm	85mm
31215.9	600mm	22mm	85mm

Important Info Before You Buy

• Pull handles are best suited for areas of high or heavy use such as offices, schools and public buildings

• Sold as a back to back fixing pair (2 handles).
