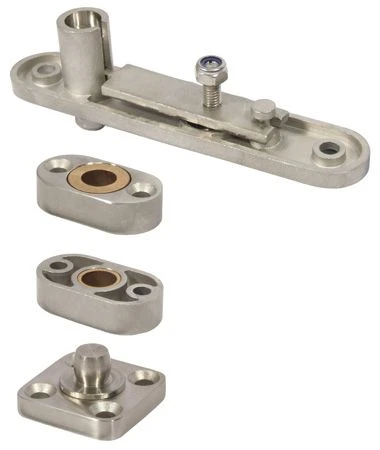

Double Action Pivot Set – For Double Swing Doors – Floor Mounted – 80kg – Satin Stainless Steel

Original price was: $168.26.Current price is: $97.99.

SKU: Z2PVA 41051 Categories: Hinges, Pivot Door Hinges

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

Double action pivot set – allows doors to swing in both directions

Bottom bracket is floor mounted and does not protrude beyond the door edge

Suitable for FD30 doors, tested to BS476 Part 22

Minimum door thickness 44 mm

To suit doors up to 80 kg, when floor mounted

Maximum door width 1100 mm, when jamb mounted

44 mm thick doors require R9 radius on pivot edge, 54 mm thick doors require R12 radius

Top and bottom plates have maintenance free oil impregnated bronze bearings

Set includes door bottom pivot, top centre and 5mm thick door brackets

Base Material

Stainless steel – grade 304

Finish

Satin stainless steel – (brushed finish)

Dimensions

Top Pivot – 86mm x 20mm x 35mm

Diagram Showing Dimensions Of The Double Action Floor Mounted Pivot Set - 80kg

Unit Of Sale

Sold per set – to hang one double action door.

Item	41051
Item Code	41051
Finish	Satin Stainless Steel
Fire Rated	FD30 / FD60 – Fire Rated
Sold Per	Set
Availability	Stock item – please allow 1-3 days for delivery
