Double Action Pivot Set - For Double Swing Doors - Frame Mounted - 40kg - White

Double Action Pivot Set - For Double Swing Doors - Frame Mounted - 40kg - White - Image 2

Double Action Pivot Set – For Double Swing Doors – Frame Mounted – 40kg – White

Original price was: $81.02.Current price is: $56.71.

SKU: Z2PVA 41052 Categories: Hinges, Pivot Door Hinges

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

Double action pivot set – allows doors to swing in both directions

Bottom bracket is designed to be fitted to the door frame

Minimum door thickness 38mm

To suit doors up to 40kg, when floor mounted and doors up to 20kg when mounted off the floor

Maximum door width 950mm, when jamb mounted

38mm thick doors require R21 radius on pivot edge

Top and bottom plates have maintenance free oil impregnated bronze bearings

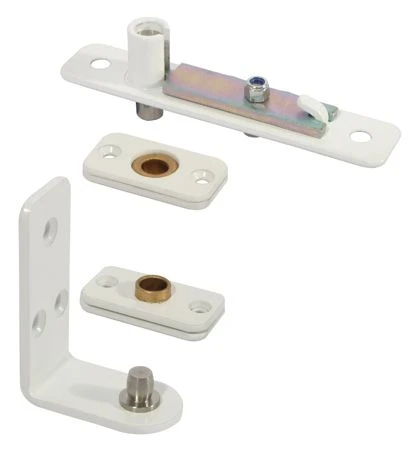

Set includes door bottom pivot, top centre and 3mm thick door brackets

Base Material

Mild steel

Finish

White – (powder coated finish)

Dimensions

Frame mounted bottom pivot bracket – 50mm x 25mm x 80mm x 3mm

Diagram Showing Dimensions Of The Double Action Frame Mounted Pivot Set - 40kg

Unit Of Sale

Sold per set – to hang one double action door.

Item	41052
Item Code	41052
Finish	White
Sold Per	Set
Availability	Non stock product – please allow 3-7 days for delivery
