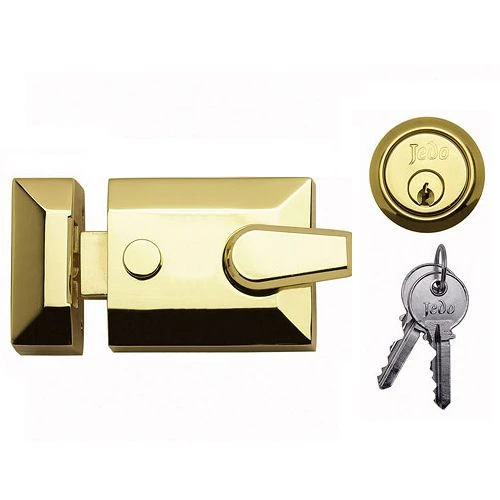

Double Locking Surface Mounted Night Latch (Front Door Yale Lock) – Polished Brass (Lacquered)

TO SUIT MAXIMUM DOOR THICKNESS OF 54MM

• Double locking night latch – also known as a “Yale lock”

Finish

• Polished brass

Dimensions

Available in two sizes – Backset size (Distance from edge of door to centre of the cylinder)

15196.1 – 40mm

15196.2 – 60mm

	15196.1	15196.2	Dimension On Diagram
Backset	40mm	60mm	A
Case Width	60mm	92mm	B
Case Height	63mm	63mm	C
Case Depth	26mm	26mm	D
Lever Projection From Case	15mm	15mm	E
Cylinder Diameter	32mm	32mm	F
Cylinder Ring Outside Diameter	45mm	45mm	G

Important Info Before You Buy

• Suitable for inward opening doors only
• Night latch can be dead-locked (double locked) form the outside by a full turn of the key
• Latch bolt is withdrawn by handle from inside and by turn of key from outside.
• Bolt can be deadlocked or held back by sliding the thumb button on lock case
• Suitable for doors up to 54mm thickness
• For doors with narrow stiles use the 40mm backset
• Comes with cylinder, cylinder ring and two keys
