Double Locking Surface Mounted Night Latch (Front Door Yale Lock) – Satin Nickel

TO SUIT MAXIMUM DOOR THICKNESS OF 54MM

• Double locking surface mounted night latch – also known as a “Yale lock”



Finish

• Satin nickel



Dimensions

Available in two sizes – Backset size (Distance from edge of door to centre of the cylinder)

43690.1 – 60mm Case Depth (40mm Backset)

43690.2 – 92mm Case Depth (60mm Backset)



	43690.1	43690.2	Dimension On Diagram
Backset	40mm	60mm	A
Case Width	60mm	92mm	B
Case Height	63mm	63mm	C
Case Depth	26mm	26mm	D
Lever Projection From Case	15mm	15mm	E
Cylinder Diameter	32mm	32mm	F
Cylinder Ring Outside Diameter	45mm	45mm	G



Important Info Before You Buy

• Suitable for inward opening doors only

• Night latch can be dead-locked (double locked) form the outside by a full turn of the key

• Latch bolt is withdrawn by handle from inside and by turn of key from outside.

• Bolt can be deadlocked or held back by sliding the thumb button on lock case

• Suitable for doors up to 54mm thickness

• For doors with narrow stiles use the 40mm backset

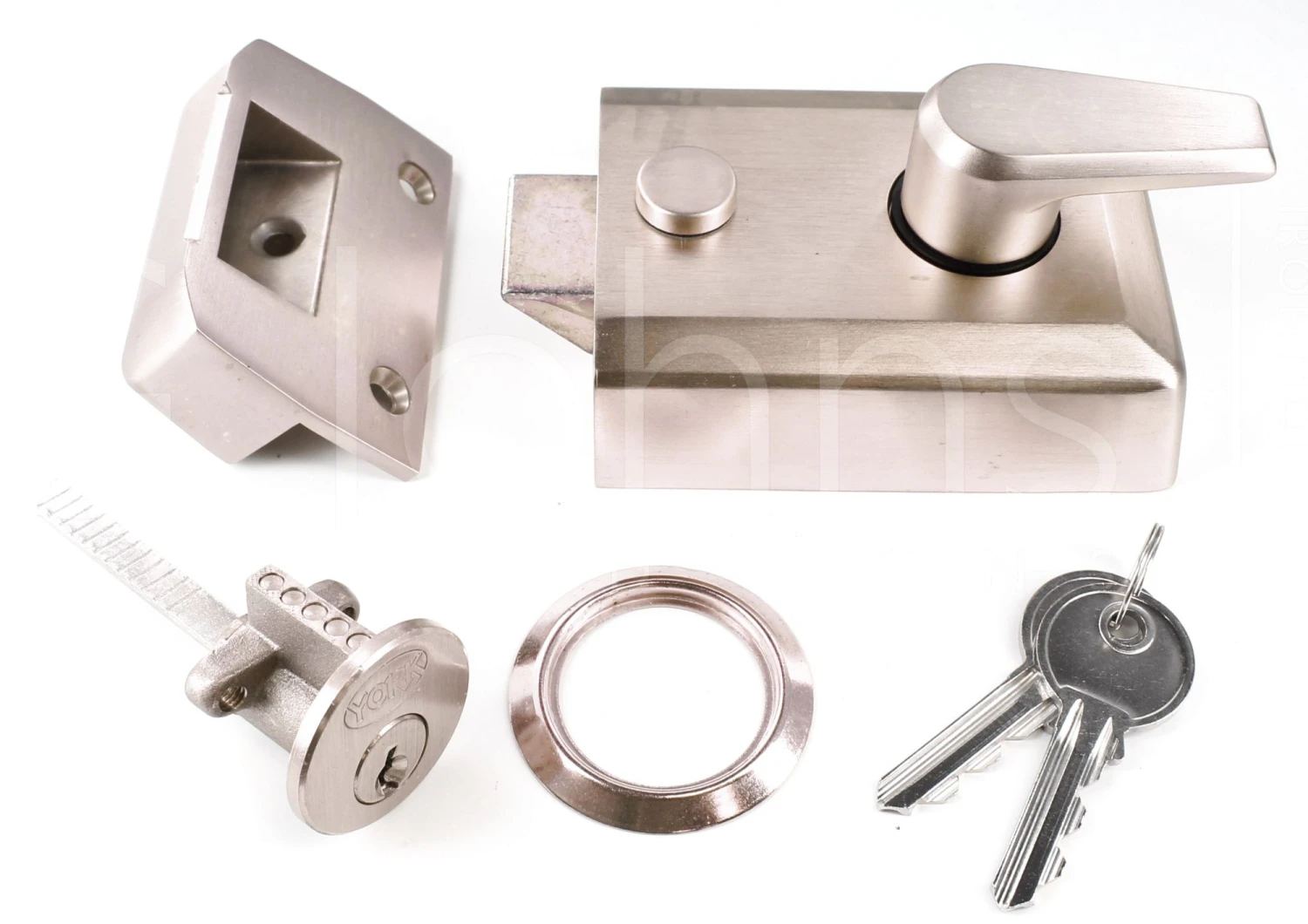

• Comes with cylinder, cylinder ring and two keys
