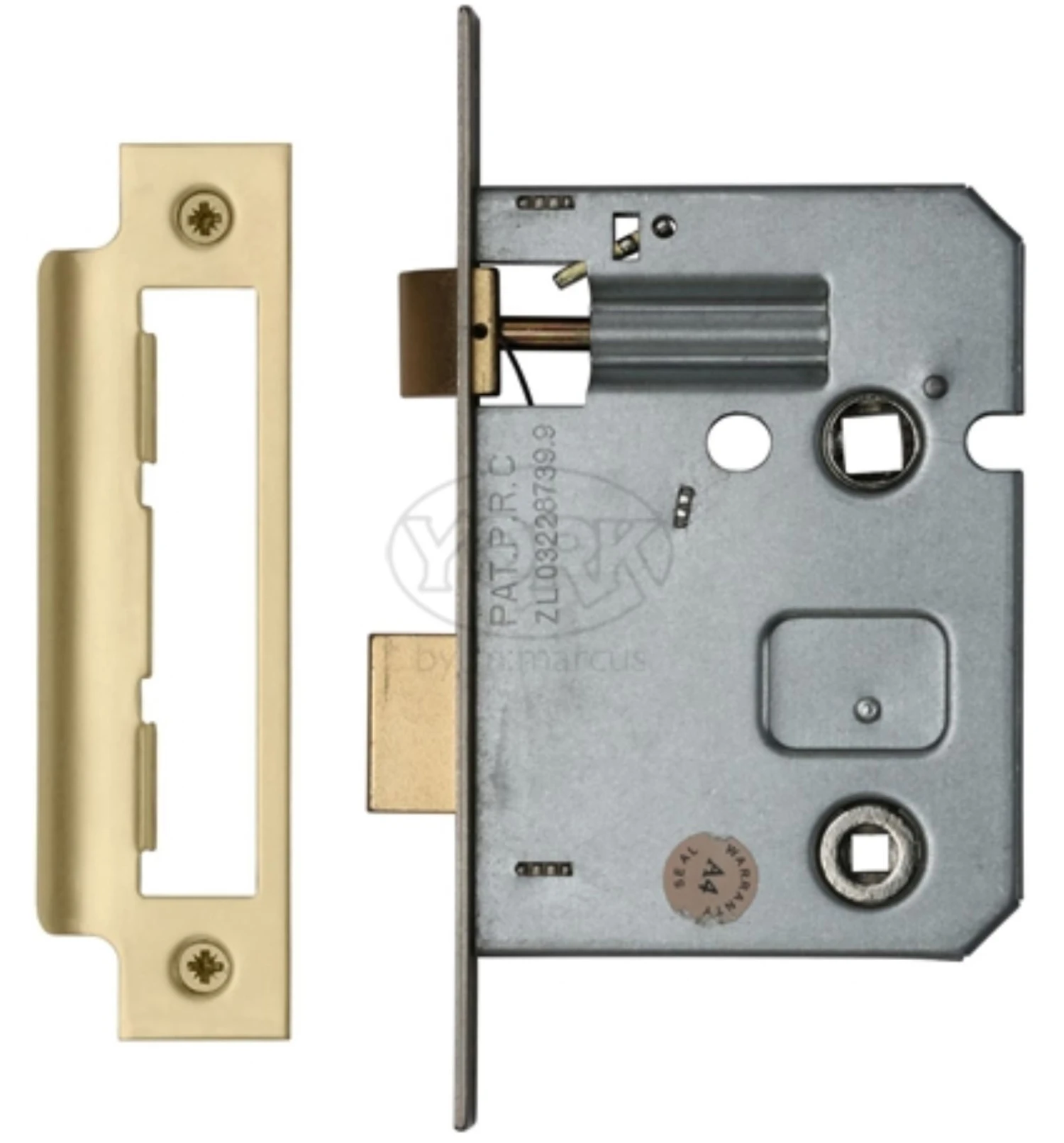

Economy Mortice Bathroom Lock – To Suit 5mm Spindle – Satin Brass (Lacquered)

• Satin brass finish economy mortice bathroom lock.

• Privacy lock for use on bathroom doors, toilets and WC doors.

• For use on doors that require door handles and need to be locked via a thumb-turn and release system.

• Must be used in conjunction with some form of door handle.

• Supplied with a satin brass finish forend and frame mounted strike plate.

Operation

• Latch is withdrawn via a lever handle from either side of the door (handles sold separately).

• Deadbolt can be locked and un-locked via a bathroom thumb-turn and release system (sold separately).

• This lock can be released from the outside in case of an emergency when used in conjunction with a turn and release.

• Only a quarter turn is required on the thumb-turn to lock and un-lock the dead bolt.

Features

• Solid brass deadbolt and latch.

• Medium weight spring strength ideal for use with sprung lever furniture.

• Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

• 8mm x 8mm spindle follower (to suit standard UK size door handles).

• Latch can be reversed on site without taking the lock case apart.

• Reversible and adjustable strike plate.

Finish

• Satin brass (brushed finish).

Dimensions

• Available in two sizes

• 64mm case depth (44mm backset).

• 76mm case depth (57mm backset).

Item Code	Lock Case Depth (A)	Backset To Keyhole (B)
43457.1	64mm	44mm
43457.2	76mm	57mm

• Lever handle follower – 8mm x 8mm.

• Dead bolt follower – 5mm x 5mm.

Unit Of Sale

• Each – (1 x lock case supplied with forend, strike plate).
