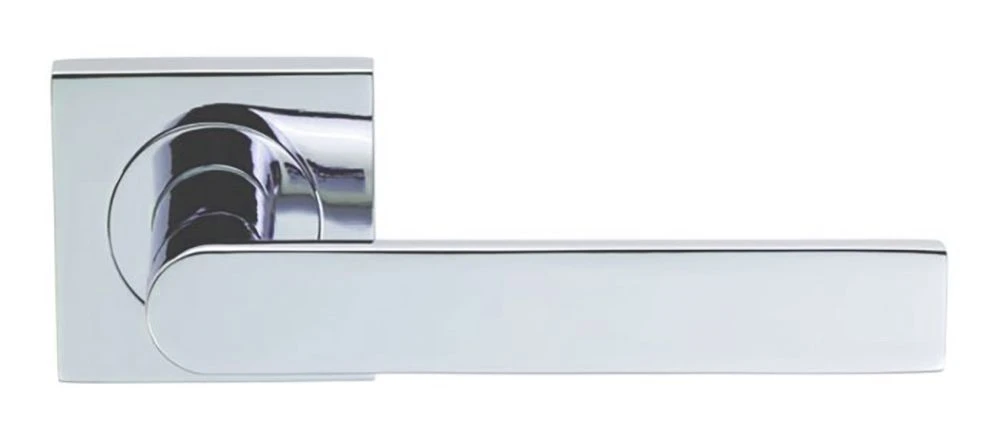

Edge – Square Rose Lever Handles – Polished Chrome – Suitable For Use With FD30 / FD60 Fire Doors

• Edge design lever on square shape rose, a modern design polished chrome finish door handle with a flat front and rounded back.

• Polished Chrome finish.

• Concealed fixings via screw on square rose.

• Suitable for residential use.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)


Base Material

• Made from zinc alloy.

Finish Details

• Polished chrome.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose – 52mm x 52mm
• Rose Thickness – 10mm
• Lever Length – 130mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Screw on square rose.
• Concealed bolt together fixing.
• Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

• Suitable for residential use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand).
