Equi Lever On Square Rose – Black Nickel – Suitable For Use With FD30 / FD60 Fire Doors

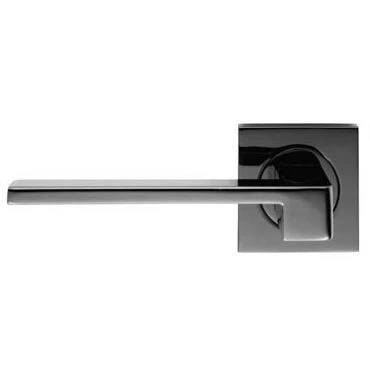

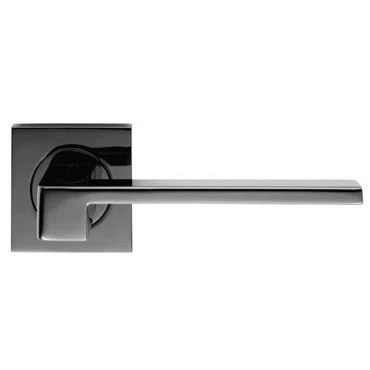

• SZM370BN Equi lever on square shape rose from the Carlisle Brass – Serozzetta M collection. A modern design shiny black nickel finish door handle with a flat rectangular shape lever.

• Black nickel – Polished (shiny) finish.

• Concealed fixings via screw on square rose.

• Suitable for residential use.

• Matching square black nickel accessories are available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

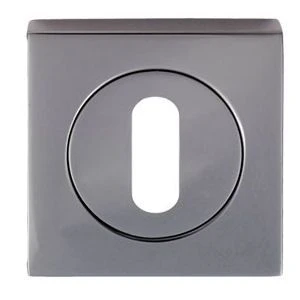

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

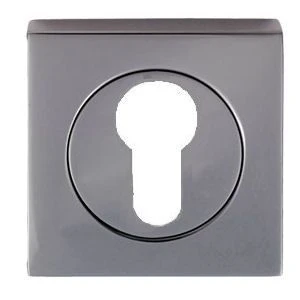

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

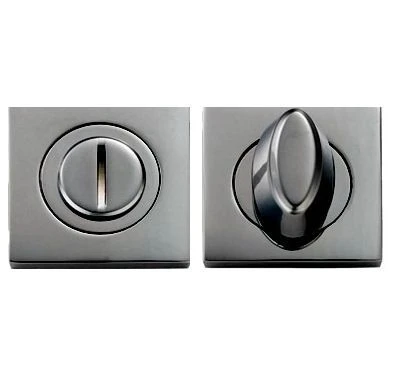

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)

Base Material

• Made from zinc alloy.

Finish Details

• Black nickel – A highly shiny, smooth, mirror like finish that is black in colour with a chrome tint.
• The zinc alloy base material has been highly polished and black nickel plated to produce this finish.

Alternative Finishes Available

• Satin chrome
• Polished chrome

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose – 52mm x 52mm
• Rose Thickness – 10mm
• Lever Length – 124mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Screw on square rose.
• Concealed bolt together fixing.
• Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

• Suitable for residential use.
• Suitable for internal or external use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
