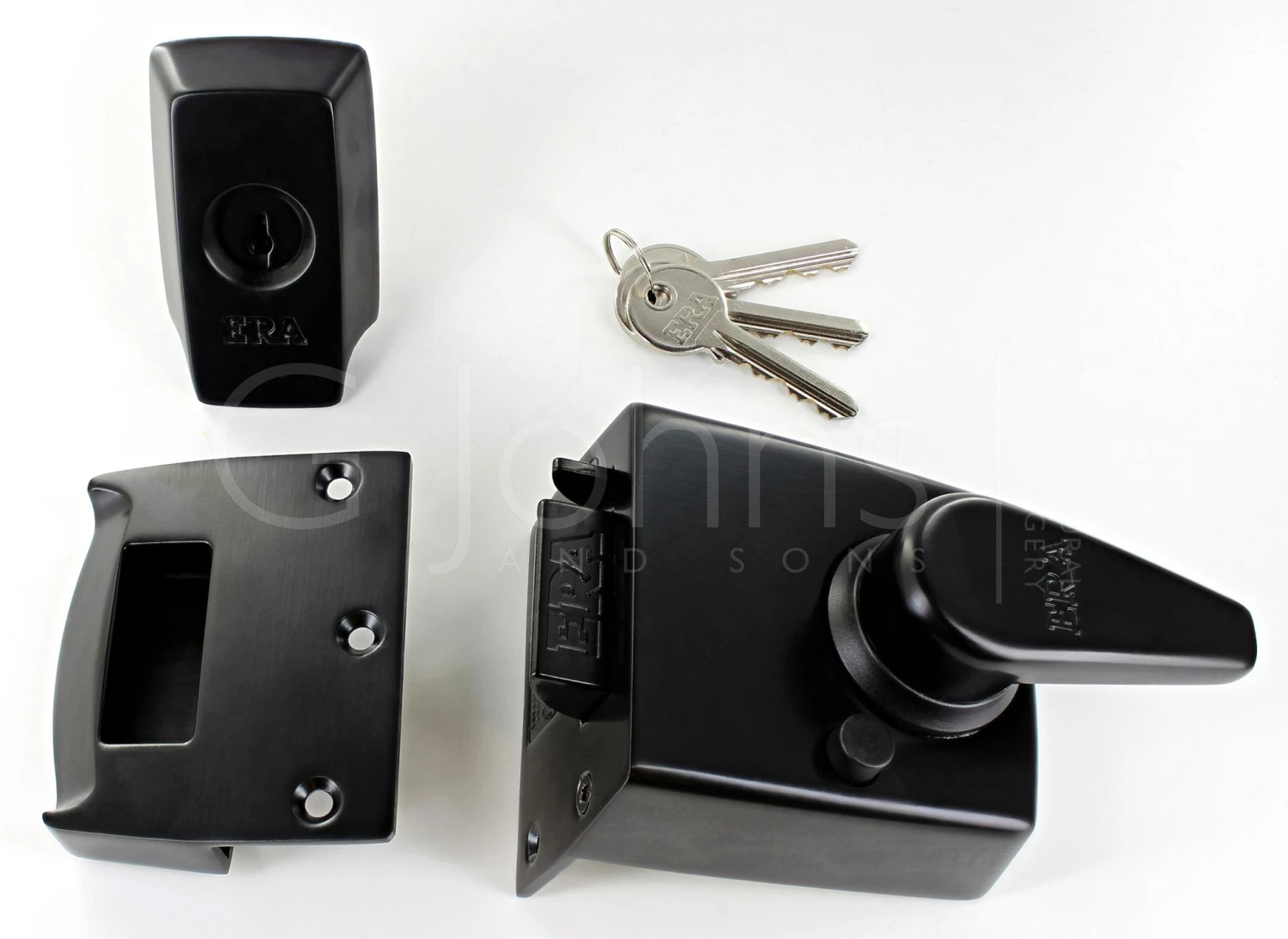

ERA High Security British Standard BS8621 Rated – Escape Night Latch With Ant-Thrust – Matt Black

TO SUIT MAXIMUM DOOR THICKNESS OF 54MM

• British standard high security escape night latch.

• Conforms to British Standard BS8621:2004 and meets the tough criteria laid down by the insurance companies and the Police (Secure By Design)

• This egress night latch offers insurance rated security while still allowing adequate means of escape in the event of an emergency.

• This lock cannot double locked, allowing for escape at all times.

• Features an integral cylinder pull which protects the cylinder from being drilled

• The cylinder has over 30,000 key variations and comes with a 20mm bolt throw for greater security and strength.

Finish

• Matt black

Dimensions

AVAILABLE IN TWO SIZES	44897.1	44897.2	Dimension On Diagram
Backset	40mm	60mm	A
Case Width	70mm	90mm	B
Case Height	86mm	86mm	C
Case Depth	33mm	33mm	D
Lever Projection From Case	25.5mm	25.5mm	E
Cylinder Height	83mm	83mm	F
Cylinder Width	50mm	50mm	G

Important Info Before You Buy

• For use on inward opening doors only

• Latch bolt is withdrawn by handle from inside and by turn of key from outside.

• Bolt can be held back by pushing the button on lock case, then released by turning the handle up or down

• The main lock bolt “automatically” deadlocks, when the door is closed this makes the use of a credit card to force entry virtually impossible

• Supplied with three keys
