Face Fixing Finger Edge Pull – With Rounded Edge Design – Available In 6 Sizes – Satin Brass (Lacquered)

• Face fixing edge pull handle

• Rounded edge design

• Sleek, minimal design ideal for those looking for a small discreet handle to open a drawer or door with

• Available in 6 sizes up to 200mm wide

• Face fix design via mSBching wood screws

• Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers



Size Details

Item Code	Overall Width	Projection (A)	Edge Diameter (B)	Thickness (C)	Screw Backset(D)	Number Of Fixing Holes
49259.1	50mm	38mm	8mm	3mm	9mm	2
49259.2	100mm	38mm	8mm	3mm	9mm	2
49259.3	200mm	38mm	8mm	3mm	9mm	4
49259.4	50mm	68mm	10mm	4mm	12mm	2
49259.5	100mm	68mm	10mm	4mm	12mm	2
49259.6	200mm	68mm	10mm	4mm	12mm	4

Base MSBerial

• Made from solid brass

Finish Details

• Satin Brass

Fixings

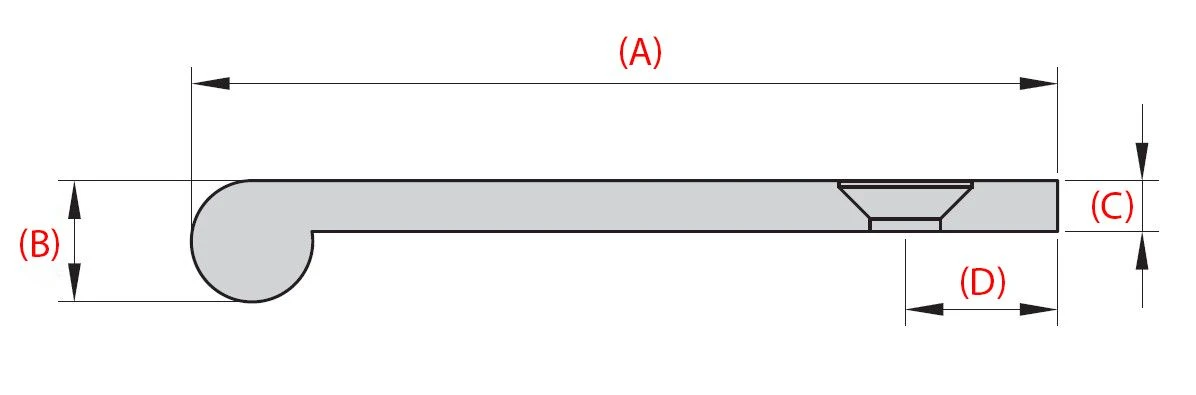

• The edge pull is fitted via countersunk wood screws from the top face of the handle  – see below diagram

• Supplied with mSBching countersunk slotted wood screws

Usage

• Suitable for internal or external use

Unit Of Sale

• Edge pull handles are sold individually – each
