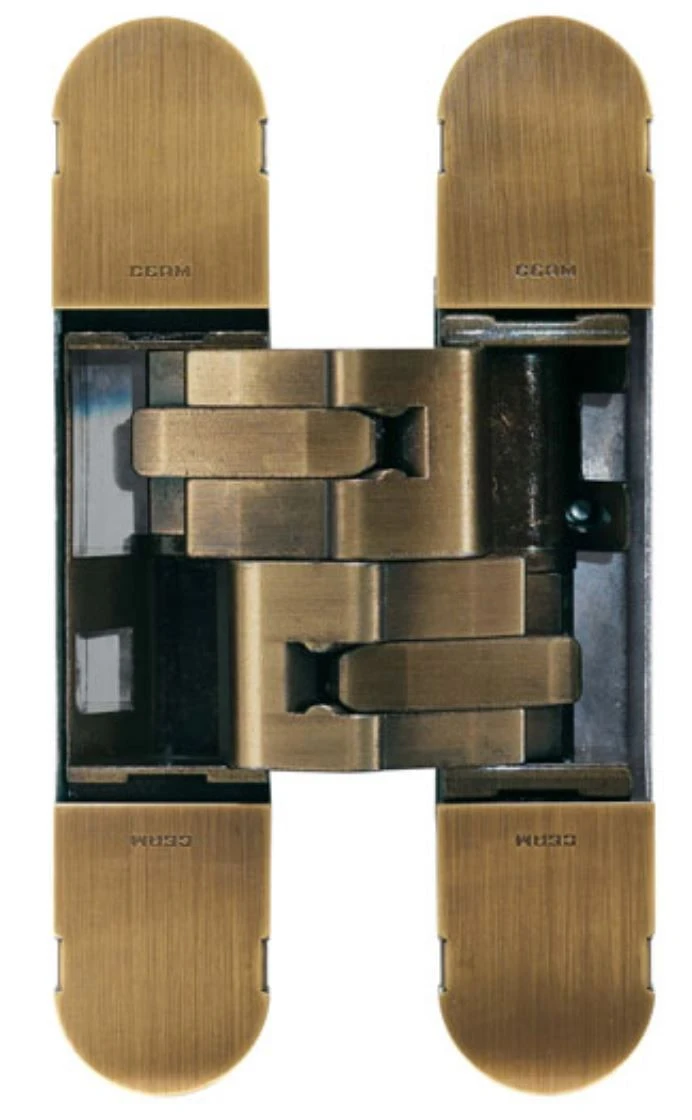

Fire Rated Concealed Adjustable Hinge For Invisible Doors – Tested To FD30 / FD60 – 160mm X 32mm – Antique Brass (Lacquered)

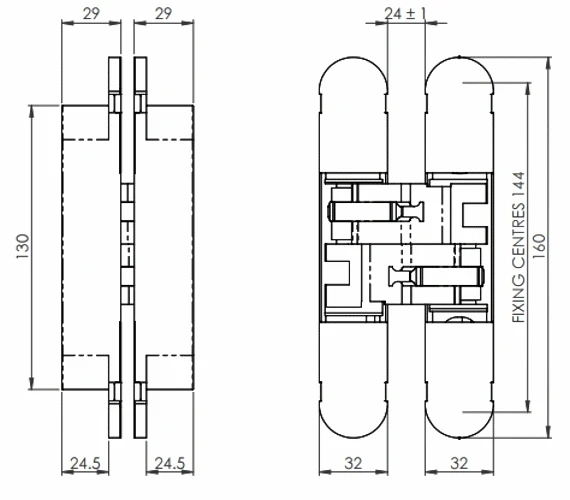

• 160mm x 32mm fire rated* adjustable concealed door hinge

• Fire rated* – suitable for use on FD30 and FD60 fire doors * when used with the 43426 intumescent kit (see related products) *

• Antique bronze finish.

• Minimum door thickness 38mm.

• Ideal for use with fire rated flush doors, where an invisible or hidden door look is required.

• Cover caps hide the adjustment and fixing screws for an a minimalist look.

• Totally recessed making the gap between door and frame very small.

• Easy to install and maintain

• 3D adjustable design (door can be adjusted vertically, horizontally and laterally).

• Opening angle up to 180 (when used with architrave free door frames).



Weight Limits

• Max door weight with 2 x hinges fitted – 80kg

• Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) – 120kg

• Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) – 140kg



Finish

• Antique bronze.

• 3D Adjustable
• +/- 3mm Side
• +/- 3mm Height
• +/- 1.5mm Compression
