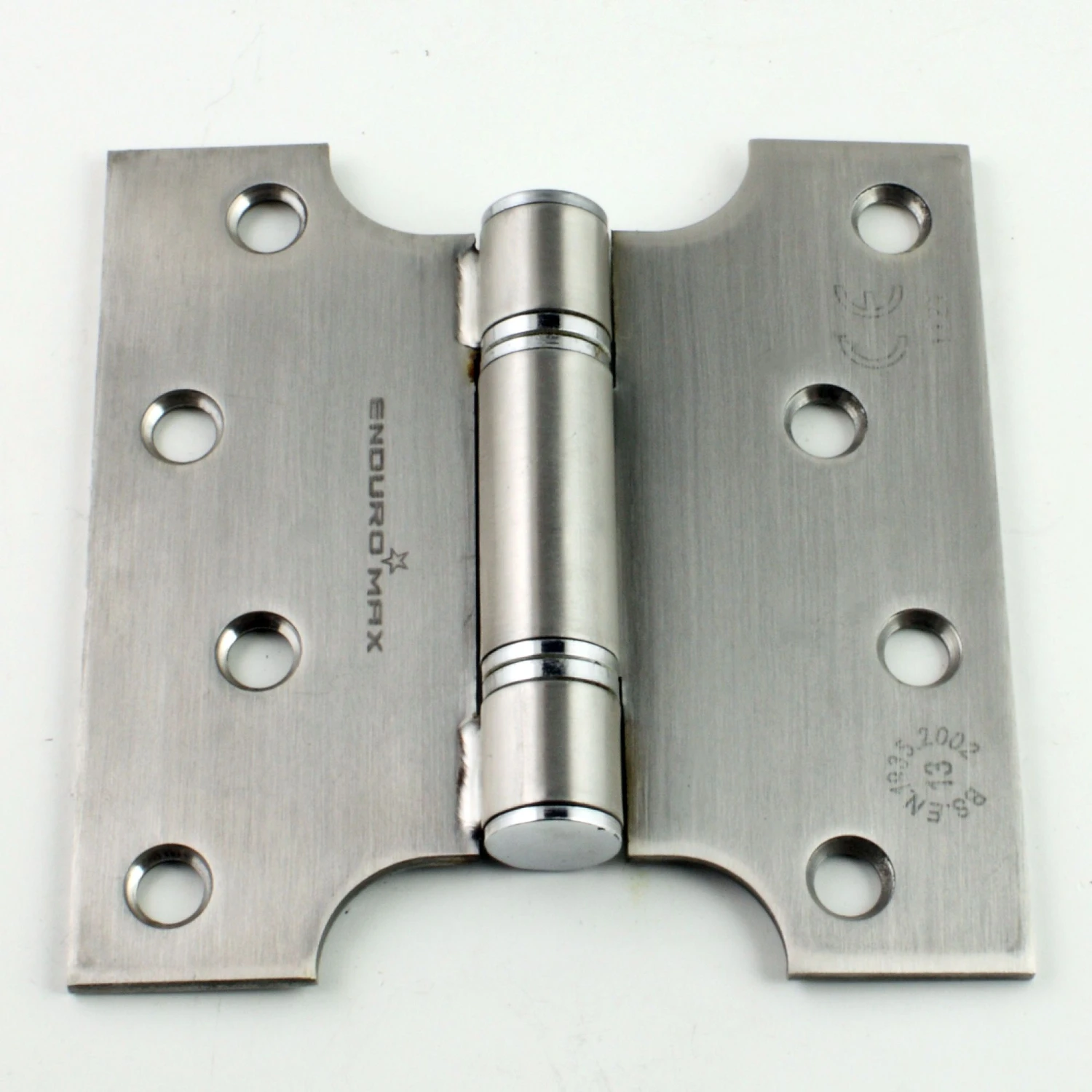

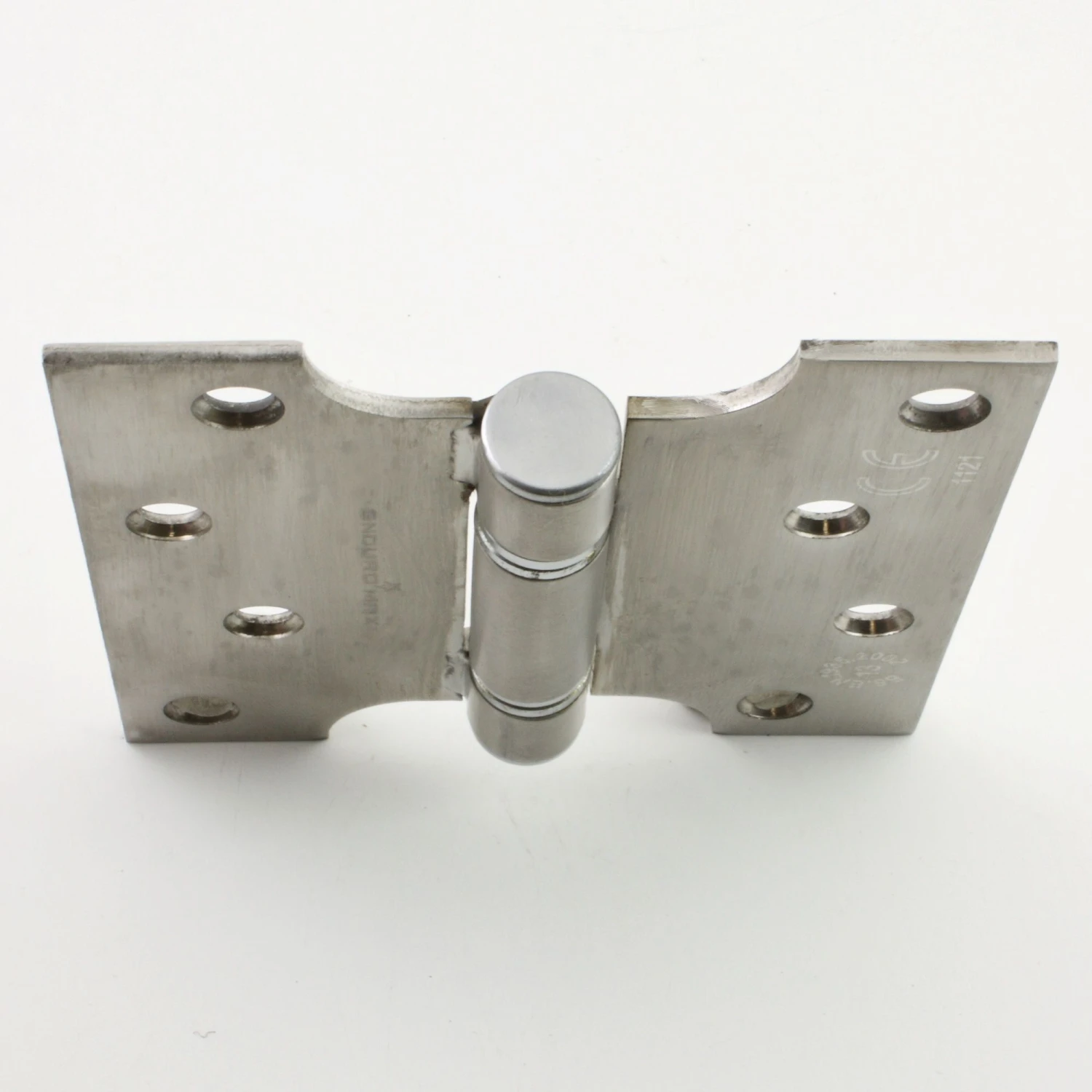

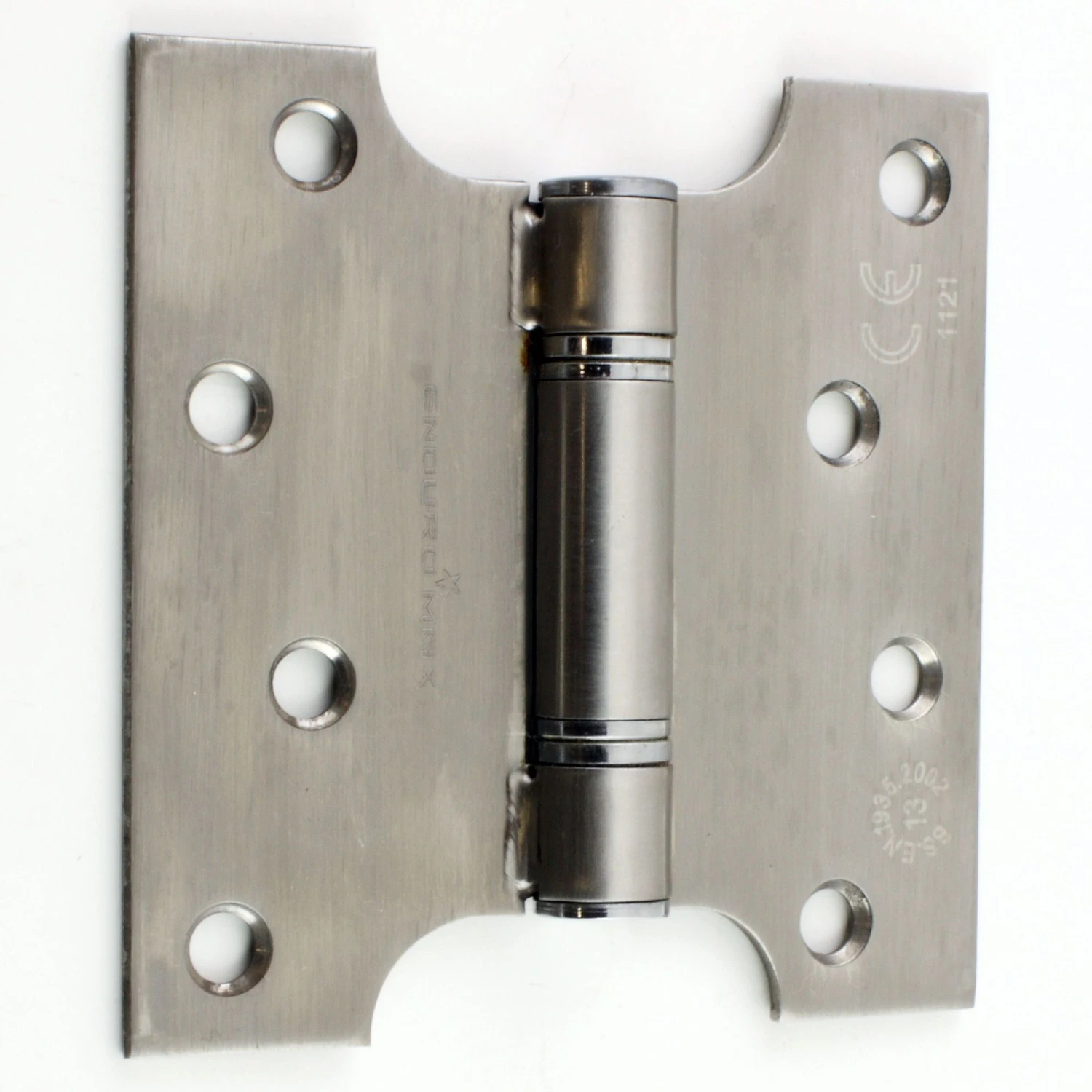

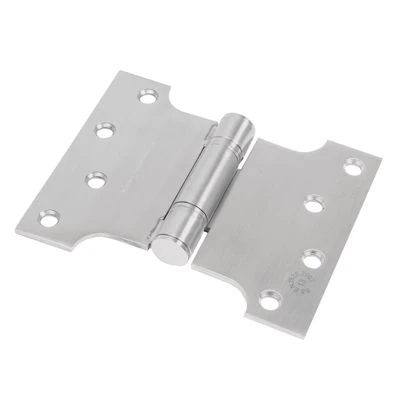

- Parliament projection hinges for double, patio and French doors.
- Projects doors clear of architraves, window boards or down pipes
- Hinges allow doors to fold back 180 degreesย
- Suitable for doors up to 120kg (weight limit based on 3 x hinges)
- Heavy duty – for high use fire doorsย
- For exterior / interior useย
- BS EN grade 13 – CE Marked / UKCA Marked
- Suitable for 60 minute fire doors, when used in conjunction with intumescent hinge pad liners,
- Measurements are leaf height x inside clearance x fully open widthย
- Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doorsย
- For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projectionย
- 25 year guarantee
Finish
- Satin stainless steel.
Dimensions



Available in 3 Sizes
31143.1ย – (102mm x 102mm x 4mm)
31143.2ย – (102mm x 127mm x 4mm)
31143.3ย – (102mm x 152mm x 4mm)
| ย |
31143.1 |
31143.2 |
31143.3 |
Dimension On Diagram |
|---|---|---|---|---|
| Height |
102mm |
102mm |
102mm |
A |
| Width |
102mm |
127mm |
152mm |
B |
| Leaf Width |
26mm |
26mm |
26mm |
C |
| Projection given |
50mm |
76mm |
102mm |
D |
| Thickness |
4mm |
4mm |
4mm |
N/A |
Important Info Before You Buy
- Parliament hinges are used to help project or “throw” a door past an obstruction so it can fold back on it’s self 180degrees


- Suitable for wooden doors
- Hinges are sold and priced in pairs and come supplied with screws
