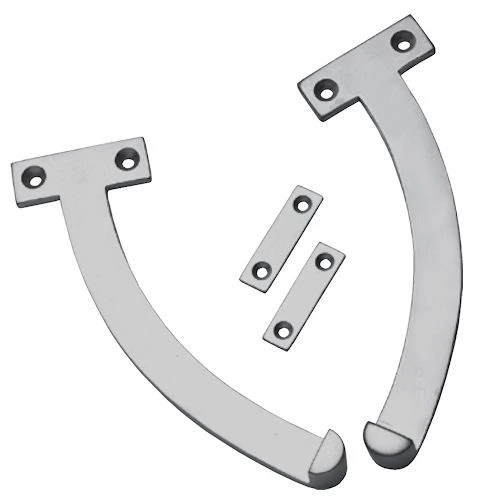

- Fixed quadrant arm stays for fanlight windows
- The quadrant arms are fixed in position so when the fanlight is closed the stays will remain in position projecting from the window – SEE BELOW DIAGRAM
![Diagram showing fixed quadrant stays when the fan light window is in the closed position]()
- When the fanlight window is in the open position it rests on the quadrant stays and restricts the window from opening too far – SEE BELOW DIAGRAM
![Diagram showing fixed quadrant arm stays when the fan light window is in the open position]()
Finish
- Matt chrome
Dimensions
Available in two lengths
- 21588.1Â – 152mm
- 21588.2Â – 203mm

| Â |
21588.1 |
21588.2 |
Dimension On Diagram |
|---|---|---|---|
|
Length Of Quadrant Stay |
152mm |
204mm |
A |
|
Height |
40mm |
55mm |
B |
|
Backplate Size |
45mm x 17mm |
45mm x 17mm |
C |
|
Tag Length |
13mm |
13mm |
D |
|
Thickness |
4mm |
4mm |
E |
|
Strike Plate |
36mm x 10mm |
36mm x 10mm |
F |
Important Info Before You Buy
- Suitable for use on bottom hinged, opening inward wooden fanlight windows
- Comes supplied with strike plate to help protect fanlight window
- SOLD PER PAIR (2 Quadrant Stays)
