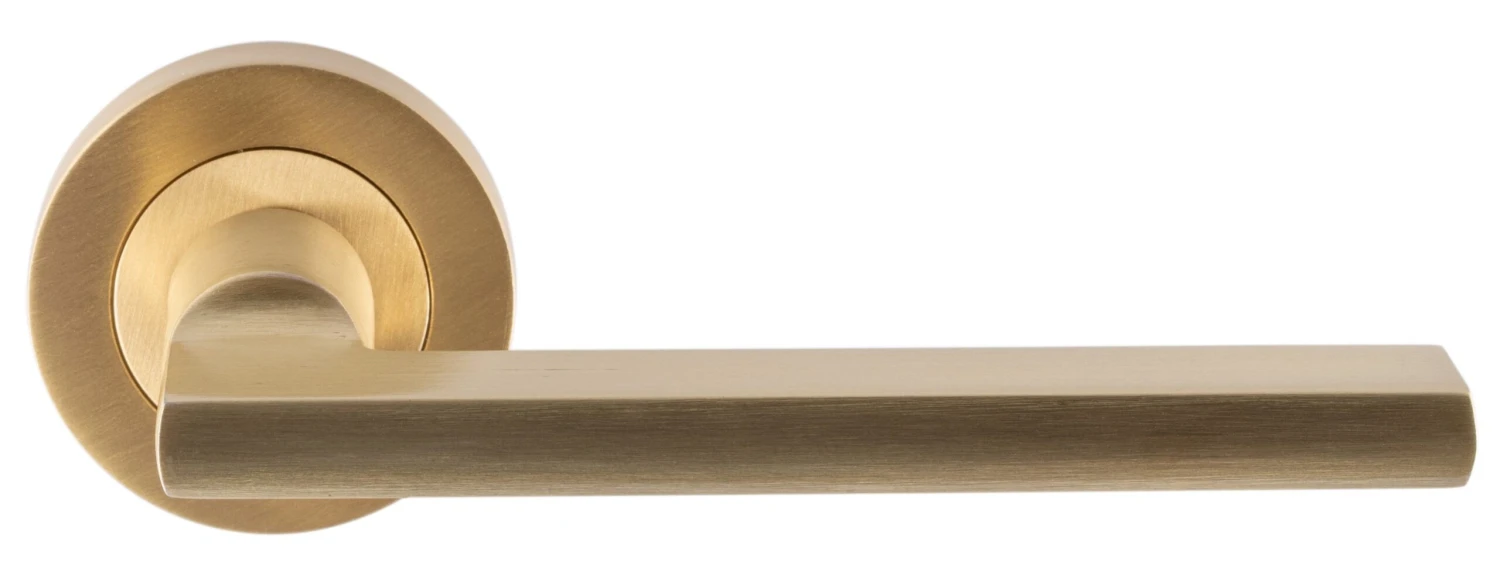

Flat Blade Style Lever Door Handles With Round Rose – Satin Brass (Lacquered) – Suitable For Use With FD30 / FD60 Fire Doors

• Flat blade style round rose lever handles

• Suitable for residential use or light commercial

• Concealed bolt through fixings via three piece rose

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)


• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)

Base Material

• Made from solid brass

Finish Details

• Satin brass

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

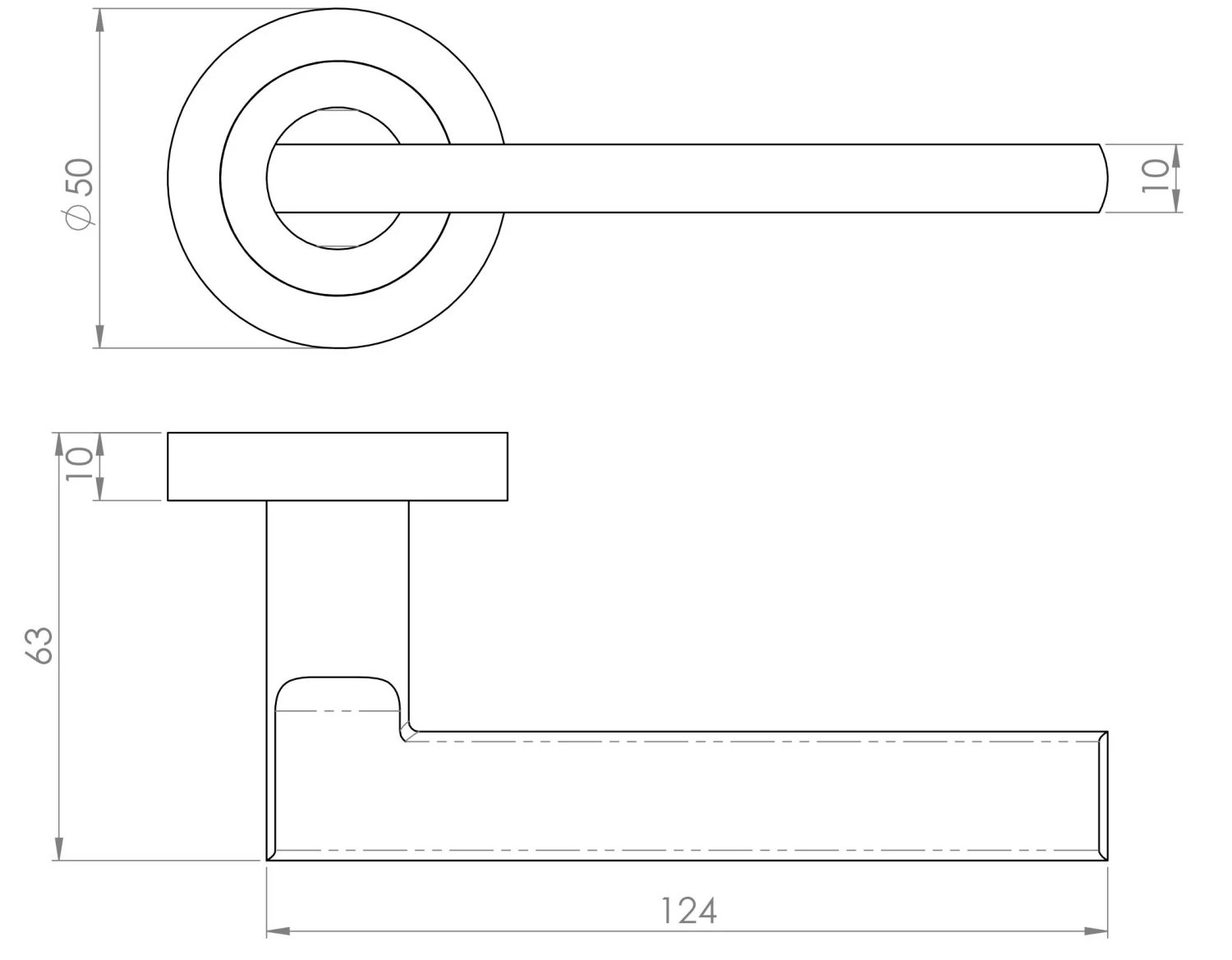

Size Information

• Rose Diameter – 50mm

• Rose Thickness – 10mm

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts

• Grub screw fixing to spindle for extra strength once fitted to the door

• Comes supplied with male and female bolt through fixings and 8mm spindle

Usage

• Suitable for residential use

• Suitable for internal or external use

Unit Of Sale

• Lever handles are sold in pairs (One pair consists of 1x left hand and 1x right hand)

• Escutcheons (key hole covers) are sold individually (each)

• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door)
