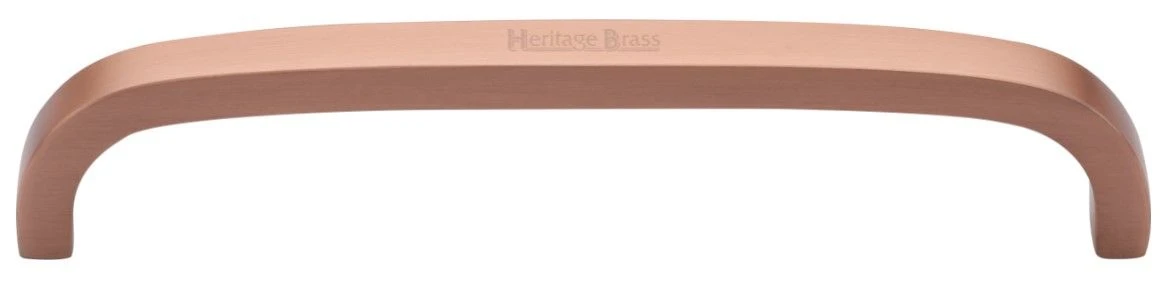

Flat D Shape Cabinet Pull Handles – Available In Three Sizes – Satin Copper (lacquered)

• Flat design D shape cabinet pull handle.

• Satin copper finish.

• Available in three lengths, 97mm, 160mm, 211mm

• Supplied with M4 fixing bolts.

• Simple classic design is ideal for use on modern or traditional units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers.

Size Details

Item code	Overall Length	Fixing Centres	Projection
44347.1	97mm	89mm	32mm
44347.2	160mm	152mm	32mm
44347.3	211mm	203mm	32mm

Base Material

• Made from solid brass

Finish Details

• Satin copper

Fixings

• This handle is fitted via M4 bolts from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.

• Supplied with M4 (diameter) x 25mm (long) bolts – Suitable for use on 18mm thick doors.

• For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (Product 30176)

Usage

• Suitable for internal use.

Unit Of Sale

• This cabinet handle is sold individually – (Each).
