Gio Lever Multi Point Door Lever Handles – 92mm Euro Centres – 259mm Bolt Centres – 285mm X 44mm Back Plate – Matt Bronze (Lacquered)

• Designed for use with multi-point locking systems on timber, UPVC and composite doors

• The handles are designed for use on external doors including front door, back doors and French patio doors

• Lift handle to lock system designed to work with the majority of new multi-point locking systems

• The square backplate is fitted with a special spring to allow the handle to lift to lock and ensuring smooth operation every time

Operation

• Lever handle on either side of the door

• Lift handle to lock
• Our Multi Point Door Hardware is fixed by two bolts from the inside plate to the outside plate
• See below for handing.

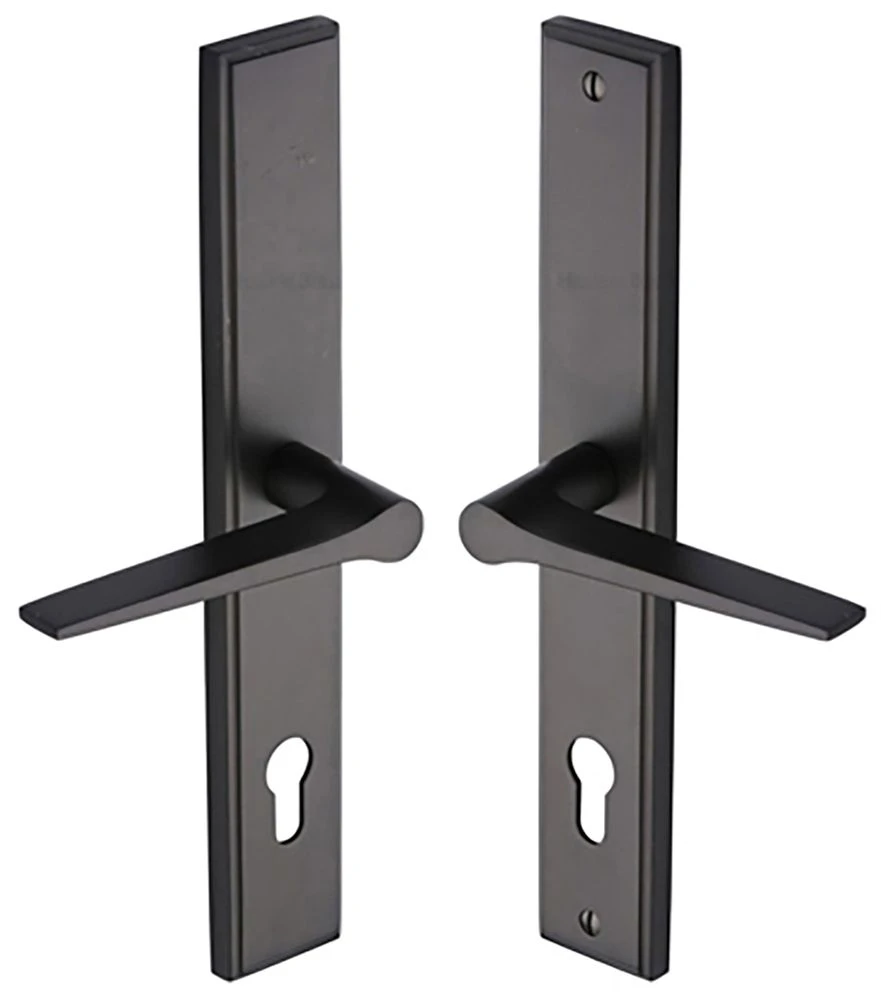

• Left-Handed set illustrated:

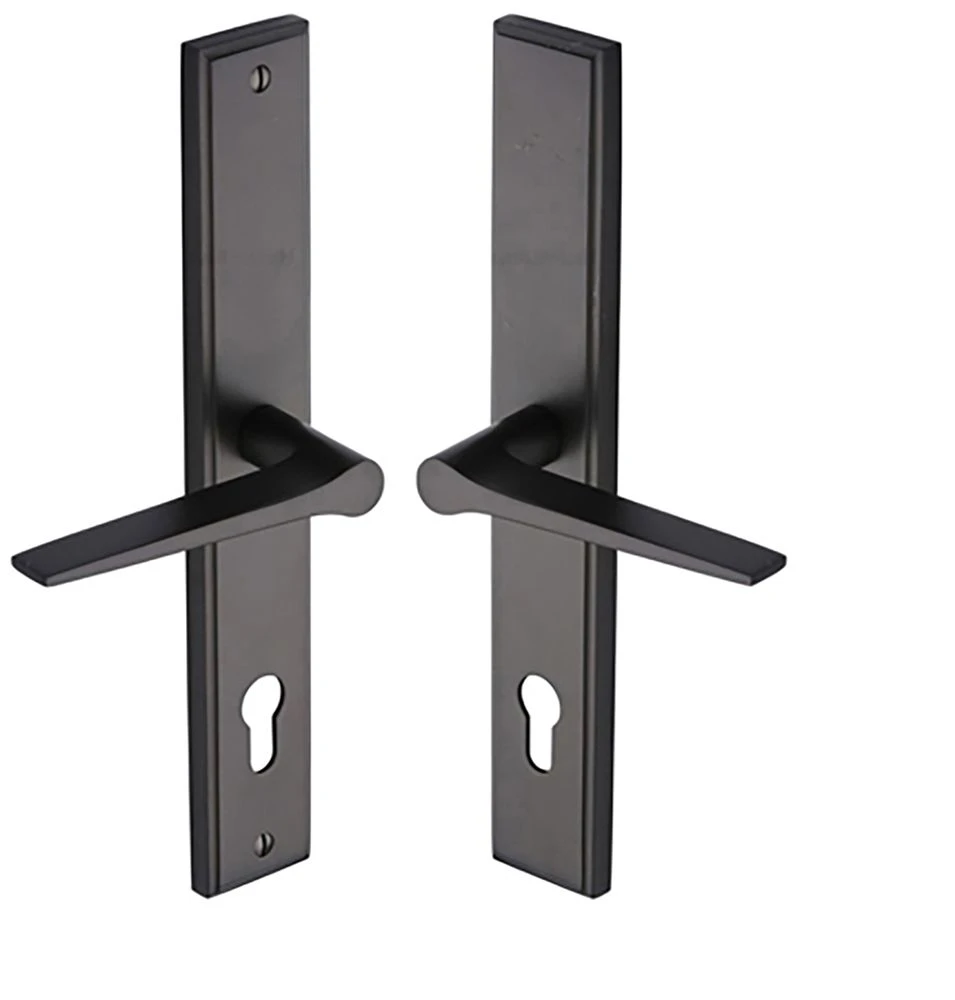

• Right-Handed set illustrated:

Dimensions

• Backplate Size: 285mm x 44mm x 10mm
• Handle Length: 125mm
• Projection: 77mm
• Centres: 92mm
• Fixing Centres: 259mm

Finish

• Matt Bronze

Standards This Product Conforms To

• Suitable for domestic use
• Suitable for commercial use

Unit Of Sale

• Pair – (1 x left hand and 1 x right hand door handle)
