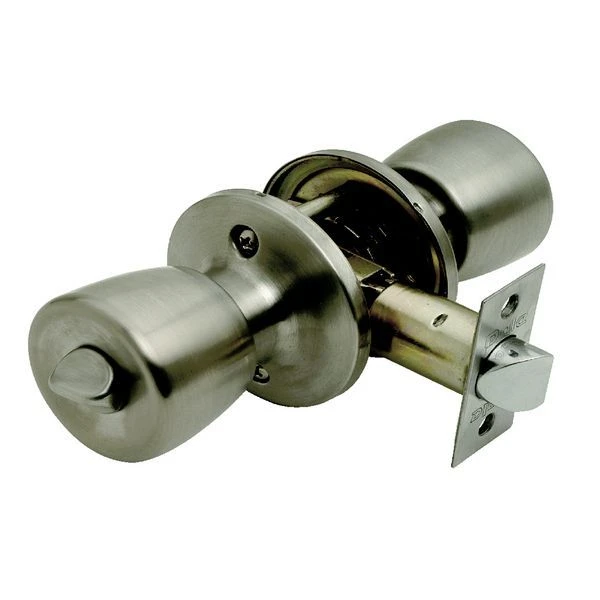

Guardian Door Knobset – Conical Shape Design – (Entrance / Passage / Privacy Options) – Satin Stainless Steel

• The Guardian range of door knobs are a contract quality knobset with a brushed satin stainless steel finish.

• Traditional conical shape design.

• This range of door knobs is supplied with an adjustable tubular latch with a backset between 60-70mm.

• Ideal for replacing and retro-fitting the Weiser and ERA range of door knobs.

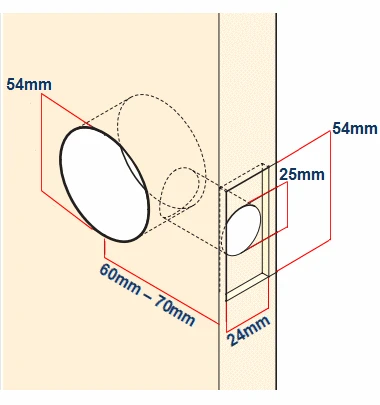

• Please note to fit this range of door knobs a large 54mm diameter hole must be drilled into the face of the door.

Finish

• Satin stainless steel – (brushed finish).



Options Available

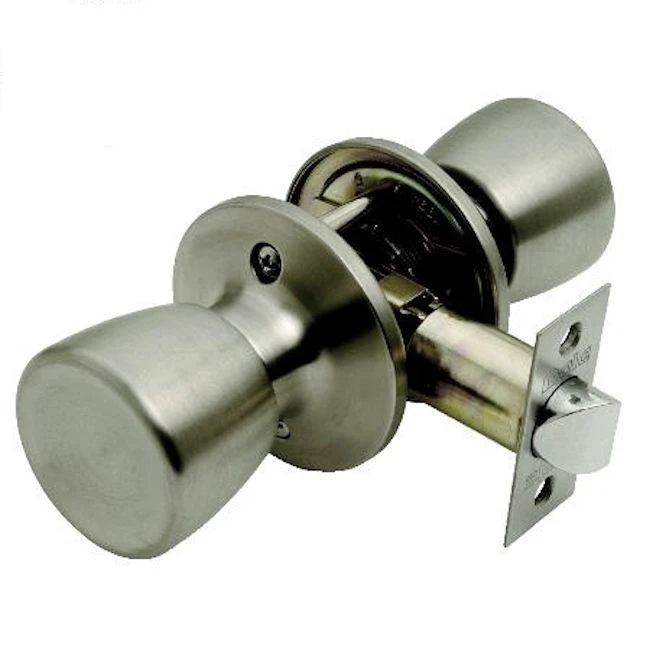

• Guardian passage knobset – A plain set of door knobs with no locking function, ideal for use in living rooms, kitchens and any internal door that doesn’t need to be locked.

• Guardian Privacy Knobset – Designed for use on bathroom doors, toilet doors and WC’s these door knobs have a thumturn knob built into the middle of the inside handle, this allows the door to be locked and unlocked from the inside simply by twisting the knob through 90 degrees. In case of an emergency the door can be locked from the outside by simply inserting the supplied small pin into a hole of the outside handle.

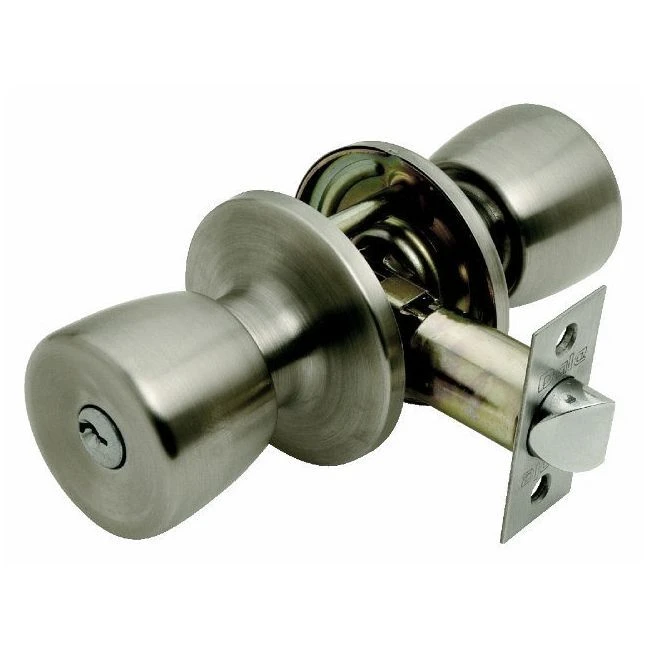

• Guardian Entrance Door Knobset – A set of door knobs with integrated key lock positioned in the centre of the outside handle. Inserting the key into the middle of the knob allows you to lock and unlock the door. From the inside a simple thumturn is located in the middle of the handle, twisting this knob also allows the door to be locked and unlocked.

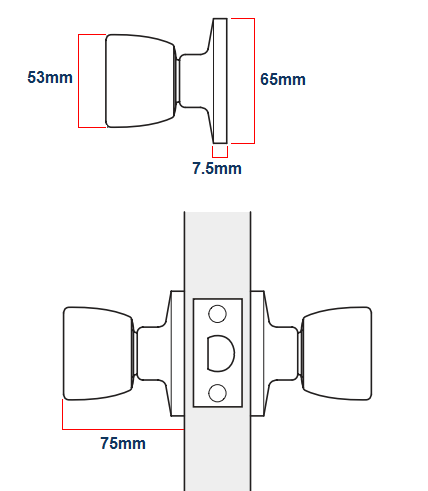

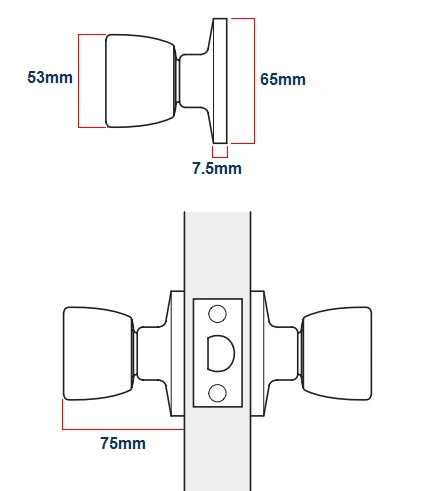

Dimensions

• Backplate (Fixing Rose) – 65mm Diameter

• Projection From Door – 75mm

• Hole Diameter Required (Drilled Into Face Of Door) – 54mm Diameter

• Tubular Latch Depth – 85mm

• Tubular Latch Backset – 60mm – 70mm (Adjustable)

• Spindle Size – 7.5mm x 7.5mm (Square)

• Fixing Bolt Centres – 40mm



Sold Per

• Sold in pairs (two door knobs) and supplied with adjustable tubular latch.
