Horizontal Euro Profile Mortice Sash Lock – 152mm Case Depth – Antique Brass

Original price was: $43.19.Current price is: $30.23.

SKU: Z2PVA 43423 Categories: Horizontal Locks, Locks & Latches

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

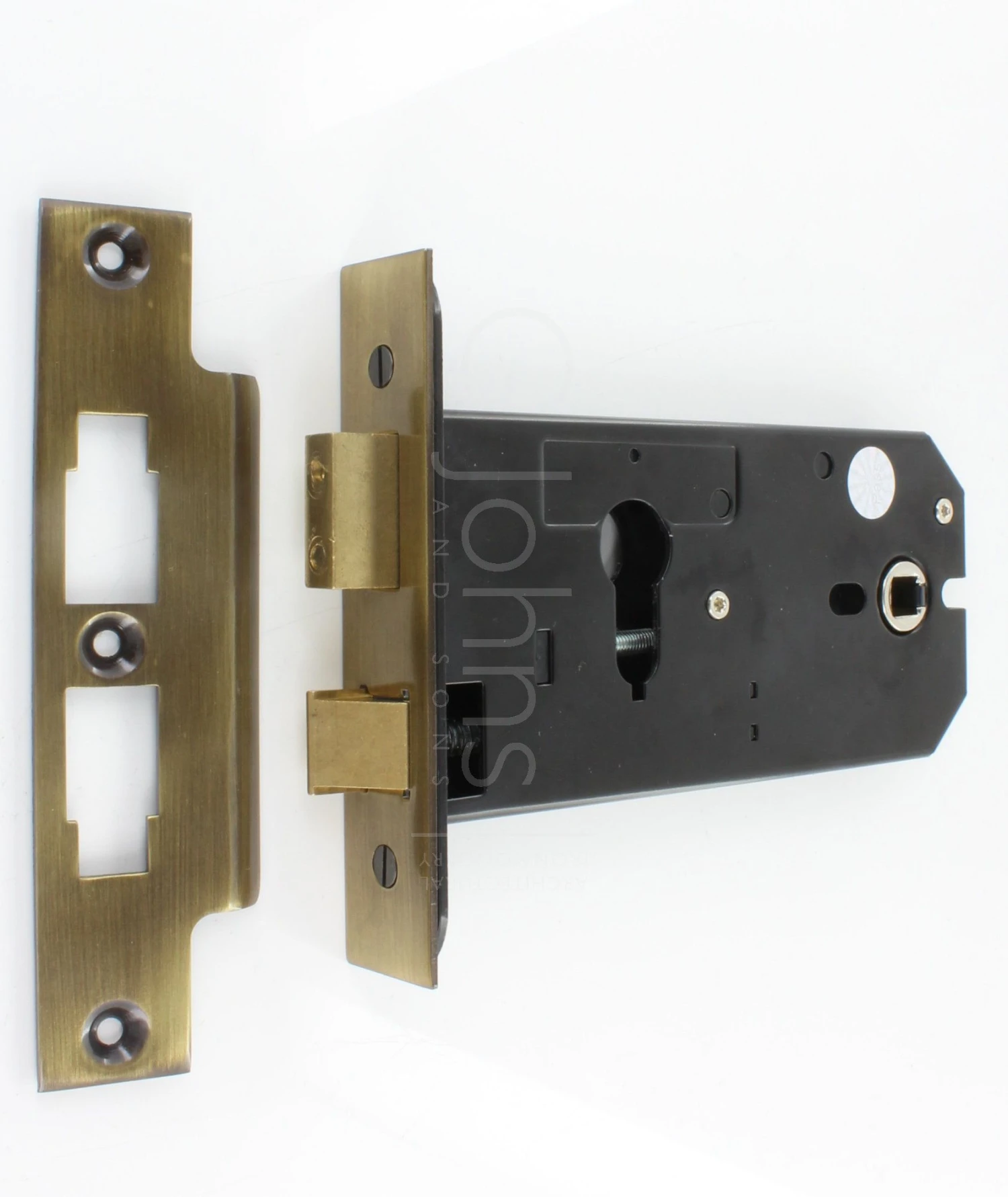

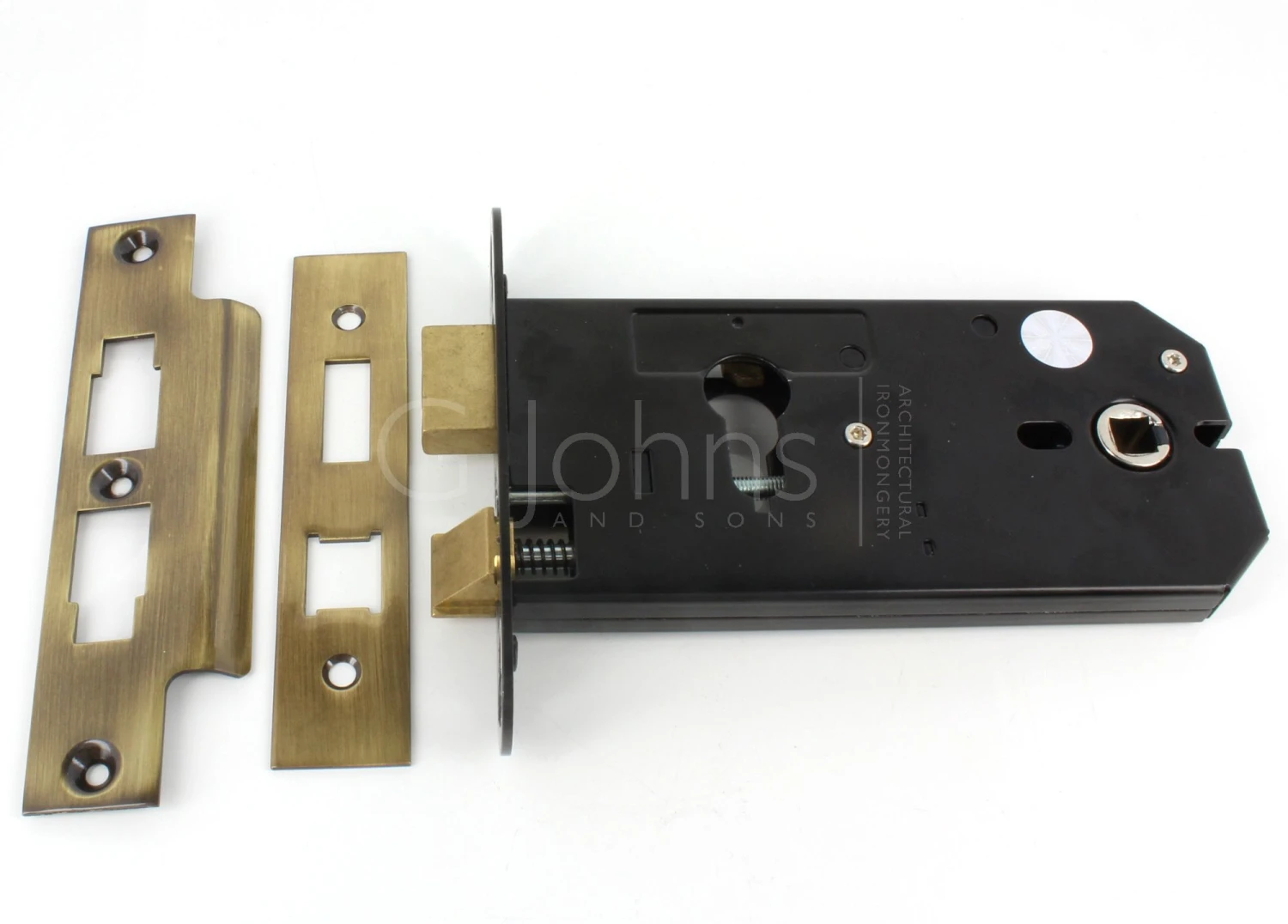

Horizontal Euro profile mortice sash lock case.

Supplied with Florentine bronze (antique brass finish) forend and strike plates.

Large style lock case 152mm (6 inches) deep.

Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.

For use on doors that require door handles and need to be locked via a Euro profile cylinder.

Must be used in conjunction with some form of door handle and Euro cylinder.

Horizontal locks were a traditional lock often found in period properties.

Cylinder hole is located to the side of door knobs rather than underneath.

Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.

Operation

Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Deadbolt is locked and un-locked via a Euro profile cylinder (sold separately).

Features

Light to medium weight springing makes this lock ideal for use with door knobs.

Two way action allows door knobs to be turned in both directions.

Solid brass guided latch.

Solid brass deadbolt with anti-saw rollers.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

8mm x 8mm spindle follower (to suit standard UK size spindles).

Latch can be reversed on site.

Reversible frame mounted strike plate.

Security Level

Medium security architectural range.

Suitable for use on internal doors in residential or light commercial buildings.

Finish

Florentine bronze – (antique brass finish)

Alternative Finishes Available

PVD brass.

Satin stainless steel.

Polished stainless steel.

Dimensions

Diagram and dimensions of horizontal euro profile sash lock case

Available in one case size only.

43423.1 – 152mm (6 inch)

	43423.1	Dimension On Diagram
Overall Case Depth	152mm	A
Backset (Distance To Centre Of Spindle Hole)	127mm	B
Backset (Distance To Centre Of Key Hole)	50mm	C
Case Height	70mm	D
Forend – Height x Width	120mm x 25mm	E
Strike Plate – Height x Width	140mm x 25mm	F

Options Available To Order

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Unit Of Sale

Each – (1 x lock case supplied with forend and strike plate).

Item	43423
Item Code	43423
Finish	Antique Brass
Dimensions	152mm Case Depth
Sold Per	Each
Availability	Stock item – please allow 1-3 days for delivery
