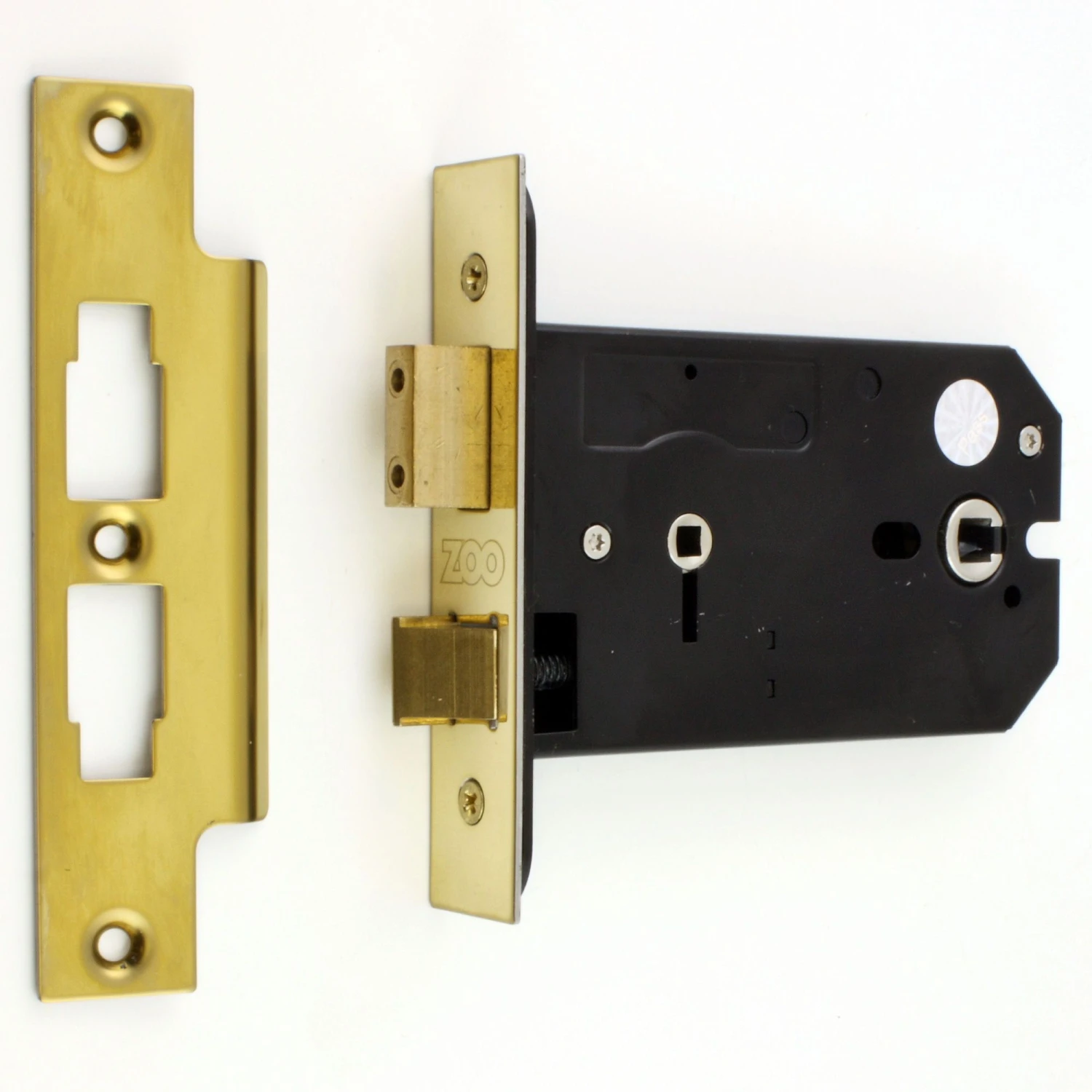

Horizontal Mortice Bathroom Lock - For Use With Door Knobs - 127mm Or 152mm Deep Case - Polished Brass PVD Plated

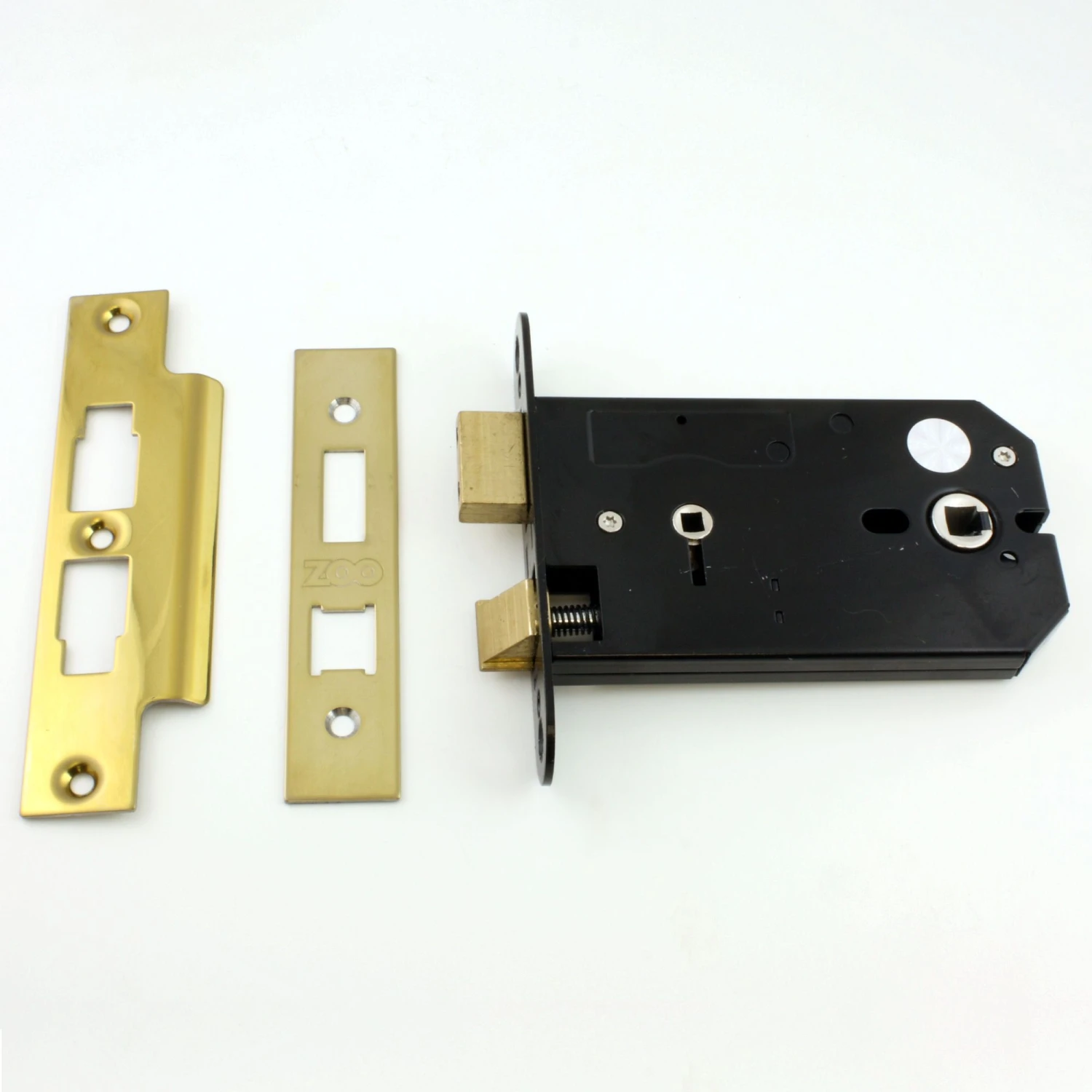

Horizontal Mortice Bathroom Lock - For Use With Door Knobs - 127mm Or 152mm Deep Case - Polished Brass PVD Plated - Image 2

Horizontal Mortice Bathroom Lock – For Use With Door Knobs – 127mm Or 152mm Deep Case – Polished Brass PVD Plated

Original price was: $28.64.Current price is: $20.05.

SKU: Z2PVA 20180 Categories: Horizontal Locks, Locks & Latches

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

Horizontal mortice bathroom lock with 5mm spindle for use with bathroom turn & release systems.

Supplied with PVD brass forend and strike plates.

Large style lock case available in two sizes – 127mm (5 inches) or 152mm (6 inches) deep.

Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.

Horizontal locks were a traditional lock often found in period properties.

Spindle hole for the turn & release is located to the side of door knobs rather than underneath.

Thumbturn operated dead bolt.

Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.

Operation

Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Deadbolt is locked and un-locked via a bathroom thumbturn and release lock (sold separately).

Features

Light weight springing makes this lock ideal for use with door knobs.

Two way action allows door knobs to be turned in both directions.

Solid brass guided latch.

Solid brass deadbolt with anti-saw rollers.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

8mm x 8mm spindle follower (to suit standard UK size spindles).

Latch can be reversed on site without taking the lock case apart.

Reversible frame mounted strike plate.

Security Level

Low security architectural range.

Suitable for use on internal doors in residential or light commercial buildings.

Finish

PVD brass.

Alternative Finishes Available

Polished stainless steel.

Satin stainless steel.

Dimensions

Diagram and dimensions of Union horizontal mortice bathroom lock

Available in two sizes

20180.1 – 127mm (5 inch)
20180.2 – 152mm (6 inch)

	20180.1	20180.2	Dimension On Diagram
Overall Case Depth	127mm	152mm	A
Backset (Distance To centre Of Spindle Hole)	101mm	127mm	B
Backset (Distance To centre Of Key Hole)	38mm	50mm	C
Case Height	70mm	70mm	D
Forend – Height x Width	120mm x 25mm	120mm x 25mm	E

Options Available To Order

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Rebate Kit For Double Rebated Doors

40832.1 – 13mm PVD brass rebate kit for use with the horizontal mortice locks.

Unit Of Sale

Each – (1 x lock case supplied with forend, strike plate).

Item	20180
Item Code	20180
Finish	Polished Brass PVD Plated
Dimensions	127mm or 152mm Deep Case
Sold Per	Each
Availability	Stock item – please allow 1-3 days for delivery
