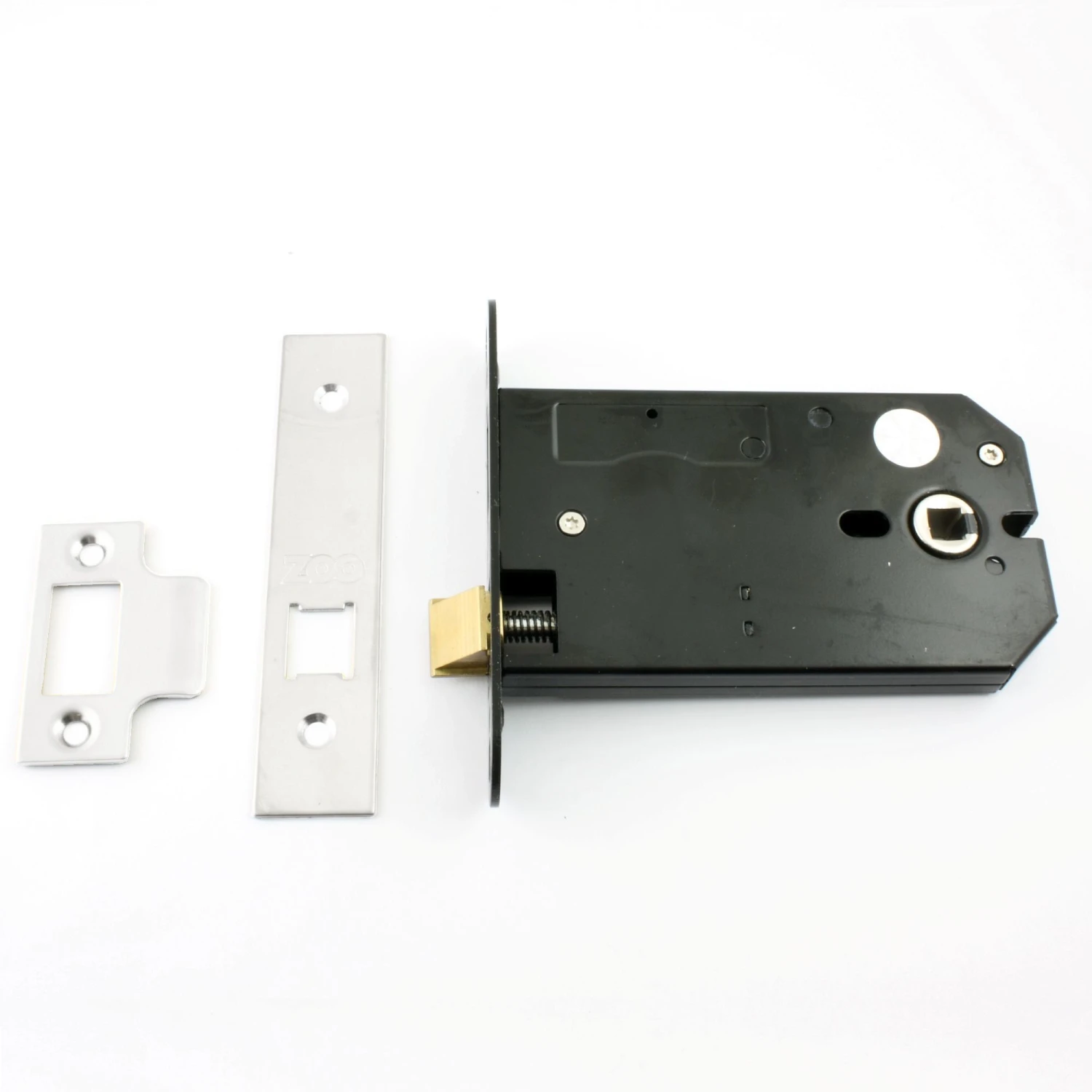

Horizontal Mortice Latch - Deep Case For Use With Door Knobs - Polished Stainless Steel

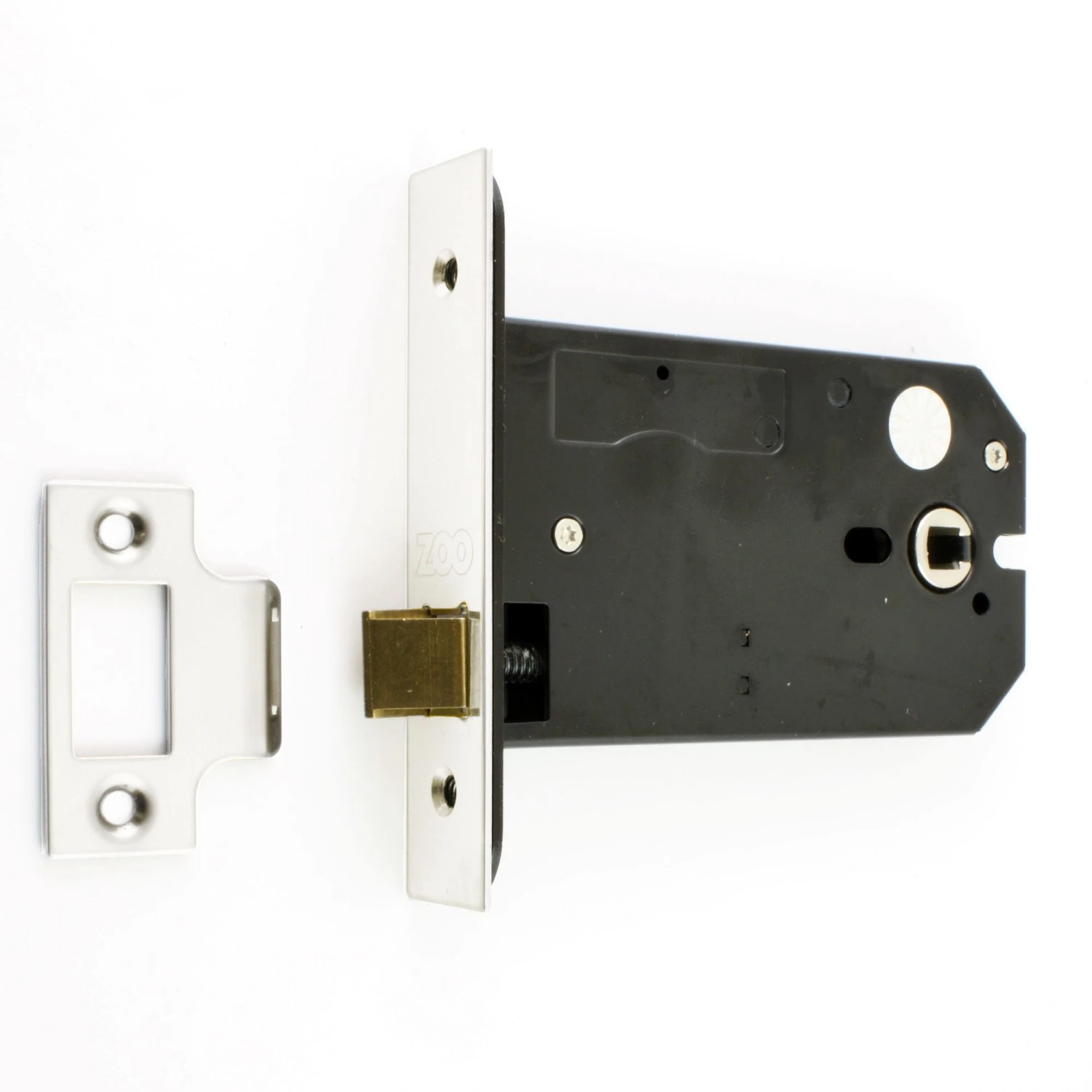

Horizontal Mortice Latch - Deep Case For Use With Door Knobs - Polished Stainless Steel - Image 2

Horizontal Mortice Latch – Deep Case For Use With Door Knobs – Polished Stainless Steel

Original price was: $28.82.Current price is: $20.17.

SKU: Z2PVA 40749 Categories: Horizontal Locks, Locks & Latches

Sustainable materials, for a better tomorrow.
100% High-Quality Guarantee
Protect Your Information, Shop with Safe Payments
Get the Best for Less

Horizontal mortice latch.

Supplied with shiny finish polished stainless steel forend and strike plates.

Architectural quality.

Large style lock case – 127mm (5 inches) or 152mm (6 inches) deep.

Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.

For use on doors that require door handles but do not need to be locked (latched only).

Horizontal latches were a traditional lock often found in period properties.

Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.

Operation

Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Features

Light to medium weight springing makes this lock ideal for use with door knobs.

Two way action allows door knobs to be turned in both directions.

Solid brass guided latch.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

8mm x 8mm spindle follower (to suit standard UK size spindles).

Latch can be reversed on site.

Reversible frame mounted strike plate.

Suitable for use on internal doors in residential or light commercial buildings.

Finish

Polished stainless steel – (shiny finish).

Alternative Finishes Available

PVD brass.

Satin stainless steel.

Dimensions

Diagram and dimensions of horizontal mortice latch

40749.1 – 127mm (5 inch)

40749.2 – 152mm (6 inch)

	40749.1	40749.2	Dimension On Diagram
Overall Case Depth	127mm	152mm	A
Backset (Distance To Centre Of Spindle Hole)	101mm	127mm	B
Case Height	70mm	70mm	N/A
Forend – Height x Width	120mm x 25mm	120mm x 25mm	N/A
Strike Plate – Height x Width	58mm x 25mm	58mm x 25mm	N/A

Options Available To Order

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Rebate Kit For Double Rebated Doors

40831.1 – 13mm satin stainless steel rebate kit for use with the horizontal mortice locks.
Please note the above rebate kit is a brushed satin stainless steel finish.

Unit Of Sale

Each – (1 x latch case supplied with forend and strike plate).

Item	40749
Item Code	40749
Finish	Polished Stainless Steel
Dimensions	127mm or 152mm Case Depth
Sold Per	Each
Availability	Stock item – please allow 1-3 days for delivery
