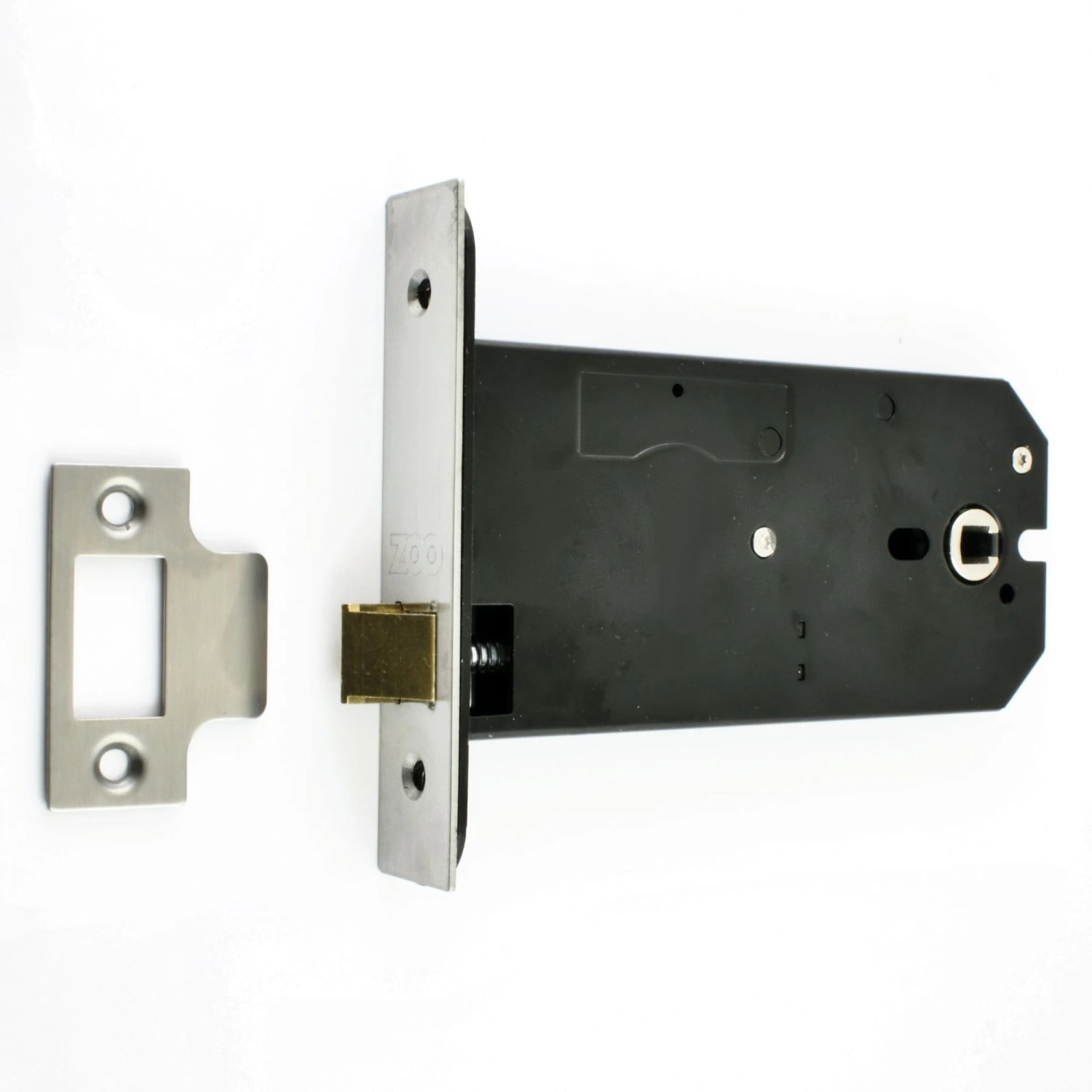

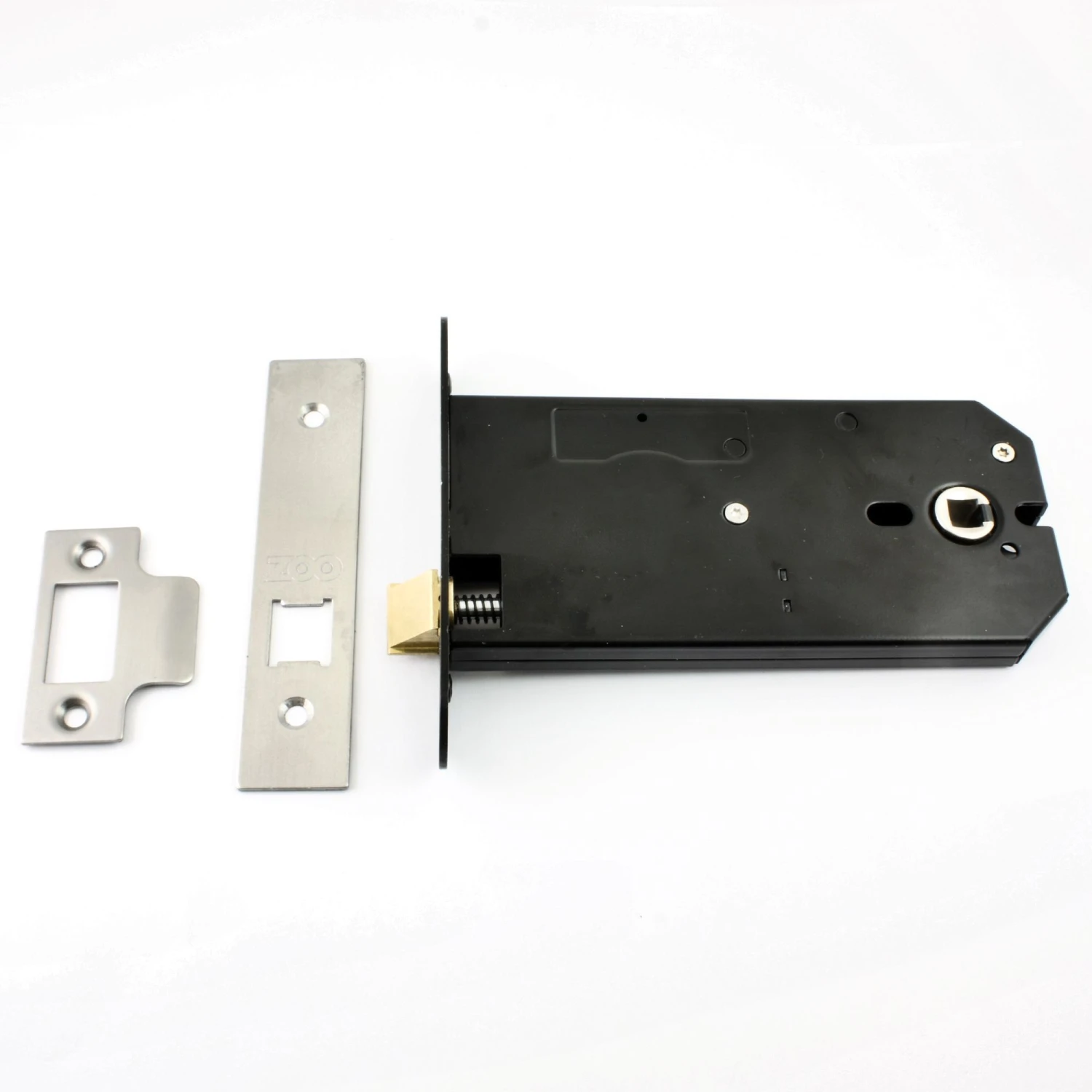

Horizontal Mortice Latch – Deep Case For Use With Door Knobs – Satin Stainless Steel

Original price was: $23.22.Current price is: $16.25.

SKU: Z2PVA 40747 Categories: Horizontal Locks, Locks & Latches

Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.

For use on doors that require door handles but do not need to be locked (latched only).

Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.

Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).

Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.

Suitable for use on internal doors in residential or light commercial buildings.

Diagram and dimensions of horizontal mortice latch

	40747.1	40747.2	Dimension On Diagram
Overall Case Depth	127mm	152mm	A
Backset (Distance To Centre Of Spindle Hole)	101mm	127mm	B
Case Height	70mm	70mm	N/A
Forend – Height x Width	120mm x 25mm	120mm x 25mm	N/A
Strike Plate – Height x Width	58mm x 25mm	58mm x 25mm	N/A

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

40831.1 – 13mm satin stainless steel rebate kit for use with the horizontal mortice locks.

Item	40747
Item Code	40747
Finish	Satin Stainless Steel
Dimensions	127mm or 152mm Case Depth
Sold Per	Each
Availability	Stock item – please allow 1-3 days for delivery
