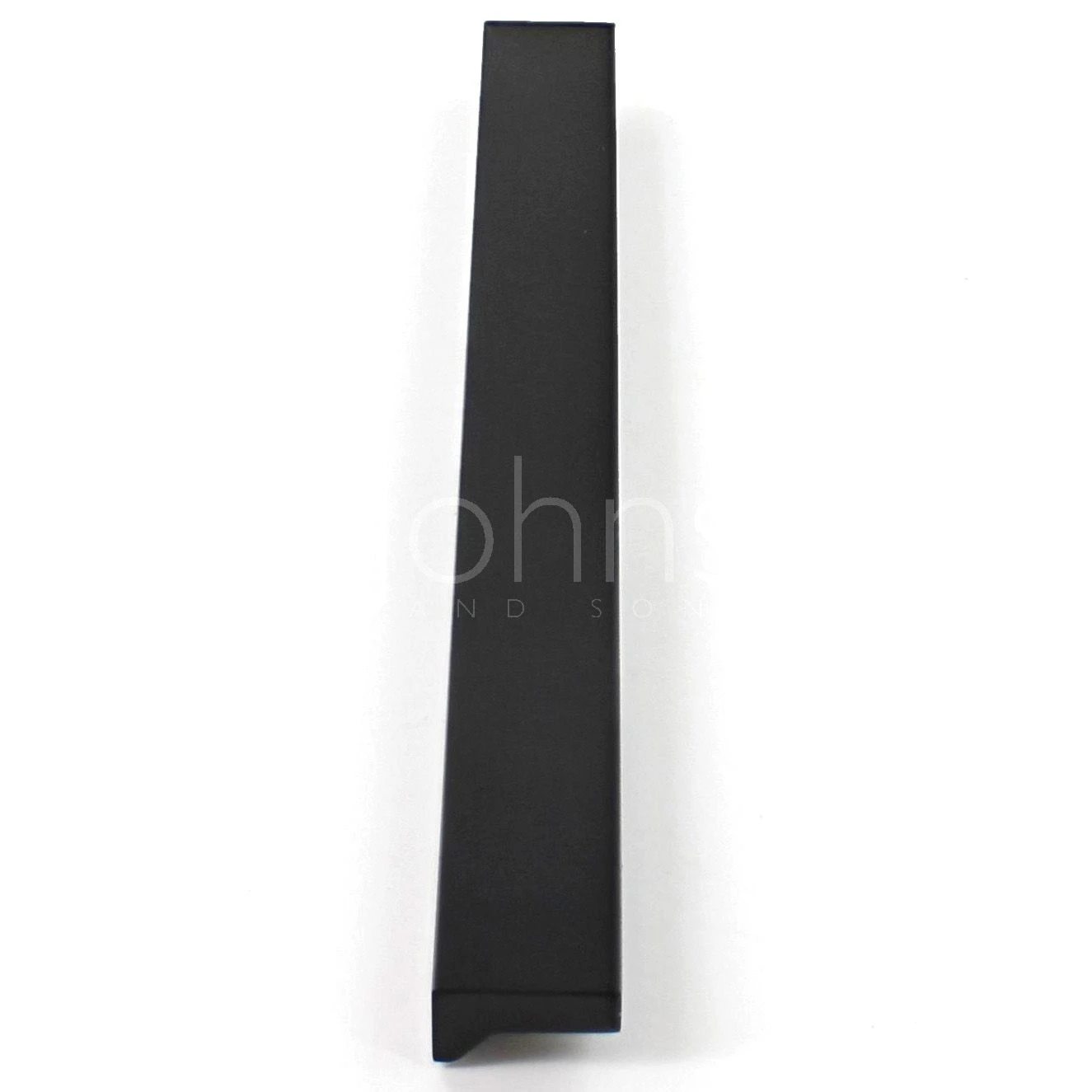

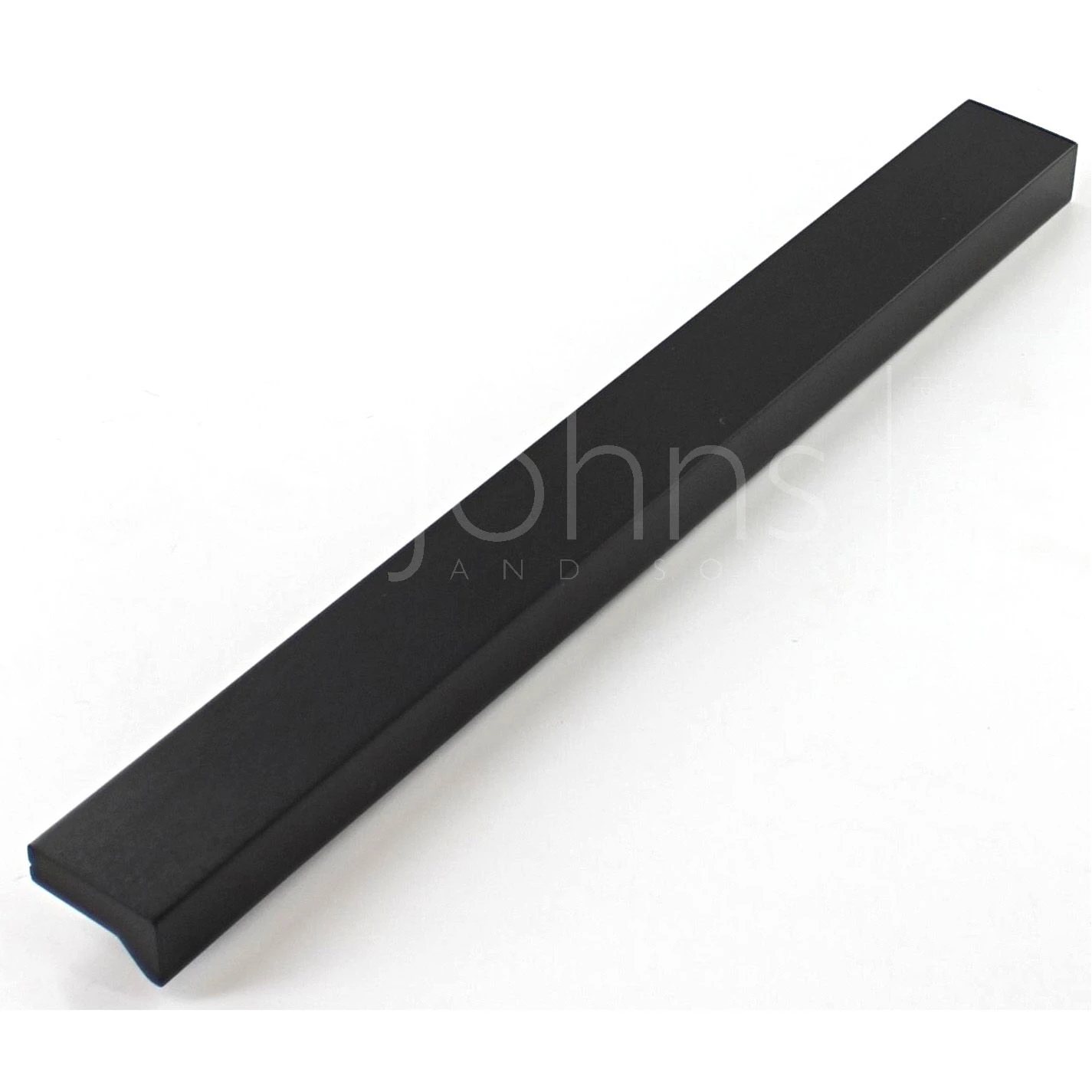

L Section Angled Cabinet Pull Handle – 200mm Length – Matt Black

• Matt black finish L section angled cabinet handle

• Designed to protrude from the face of the drawer / door.

• Ideal for use with urban matt black door handle collection.

• Supplied with M4 fixing bolts.

• Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

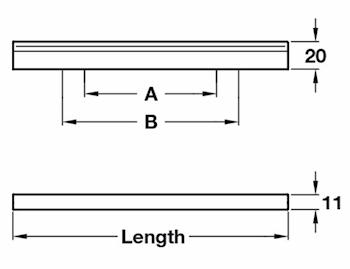

Size Details

Item Code	Bolt centers (A	)Bolt Centres (B)	Length	Projection	Thickness
41575.1	128mm	160mm	200mm	20mm	11mm

*This handle has two sets of fixing holes (two at 128mm apart and two at 160mm apart).

Base Material

• Made from aluminium.

Finish Details

• Matt black finish

Fixings

• This handle is fitted via M4 bolts from the rear of the door / drawer – see below diagram.

• Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors.
• Comes supplied with M4 (diameter) x 25mm (long) bolts – Suitable for use on 18mm thick doors.
• For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately. (See related products below).

Usage

• Suitable for internal use.
• For doors thicker then 18mm please purchase longer M4 fixing bolts. (See related products below).

Unit Of Sale

• This cabinet handle is sold individually – (Each)
