Lift Handle To Lock – Accessible Roller Lock & Handle Set For Disabled WC Toilets – PVD Satin Bronze

• Toilet / WC lock designed especially to comply with Approved Doc M, DDA & BS8300

External / Outside access:

• The roller latch bolt is operated externally with one half of the unsprung lever set, this release the roller latch bolt as normal
• Underneath the lever is the release & indicator, this operates in the same manner as bathroom type coin releases

Internal / Inside access:

• The internal side of the lever set will be configured such that, the latch bolt is blanked off with a engraved covered escutcheon
• The deadbolt features the second lever handle, and by throwing the handle up “extends the deadbolt” & locks the door
• By turning the handle down the deadbolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit

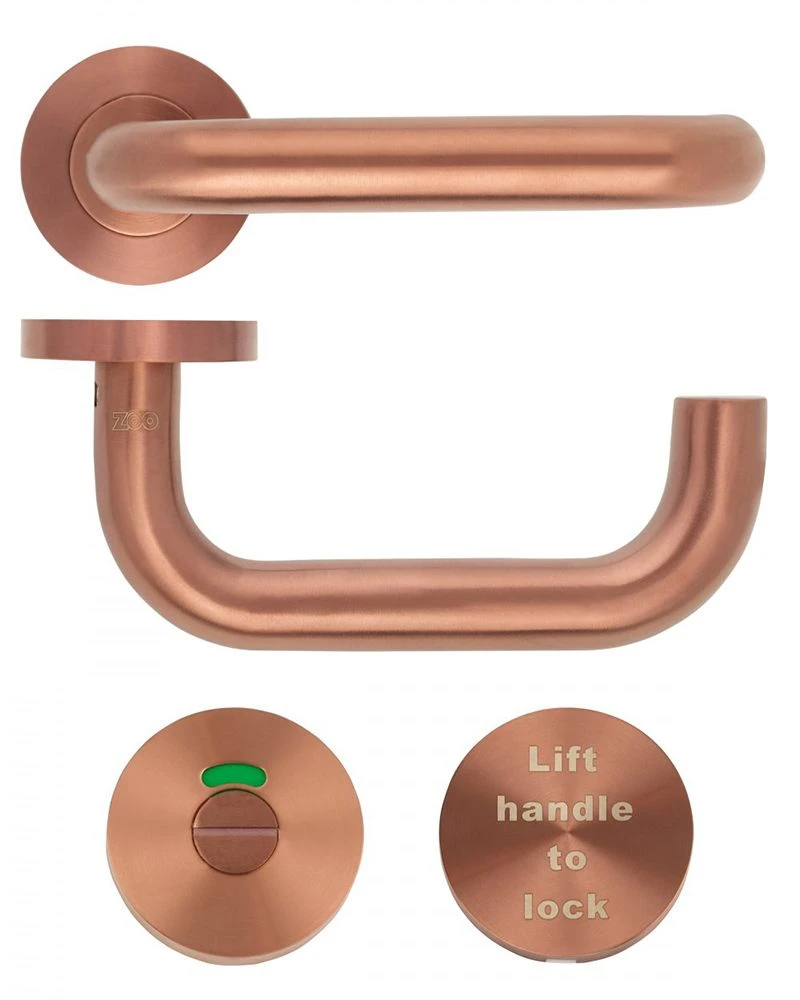

• This unique toilet lock comes in a complete set as shown in the photographs

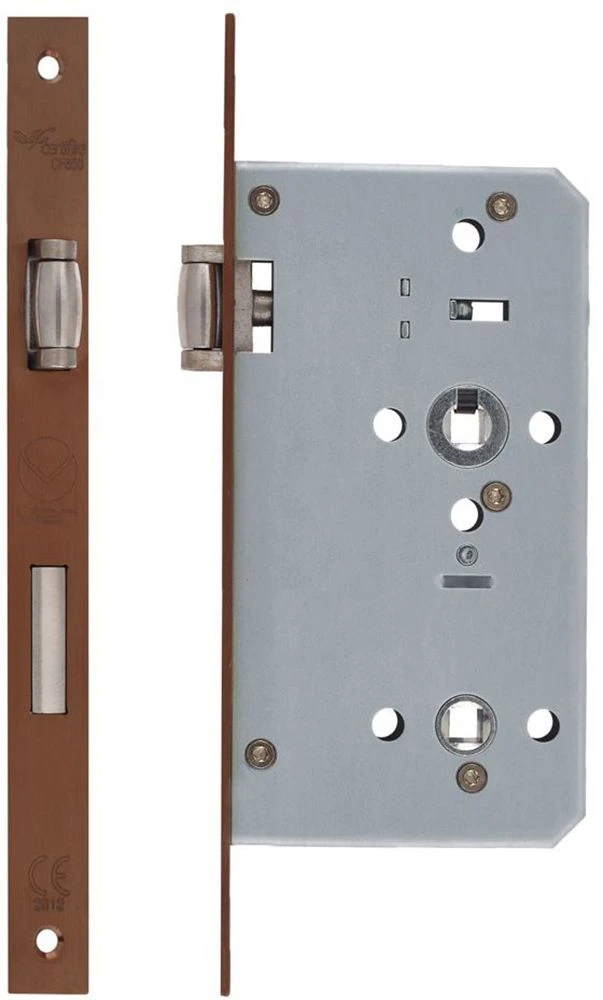

• Lock Case PVD Satin Bronze forend & strike plate. Roller bolt latch (less likely to cause injuries or damage to clothing than a normal latch bolt)
• Separate deadbolt with 78mm centres and 60mm backset
• Furniture 19mm diameter PVD satin bronze levers
• Lettering black letters on PVD satin bronze background “lift handle to lock”

Base Material

• Handle made from grade 304 stainless steel

Finish Details

• PVD Satin Bronze

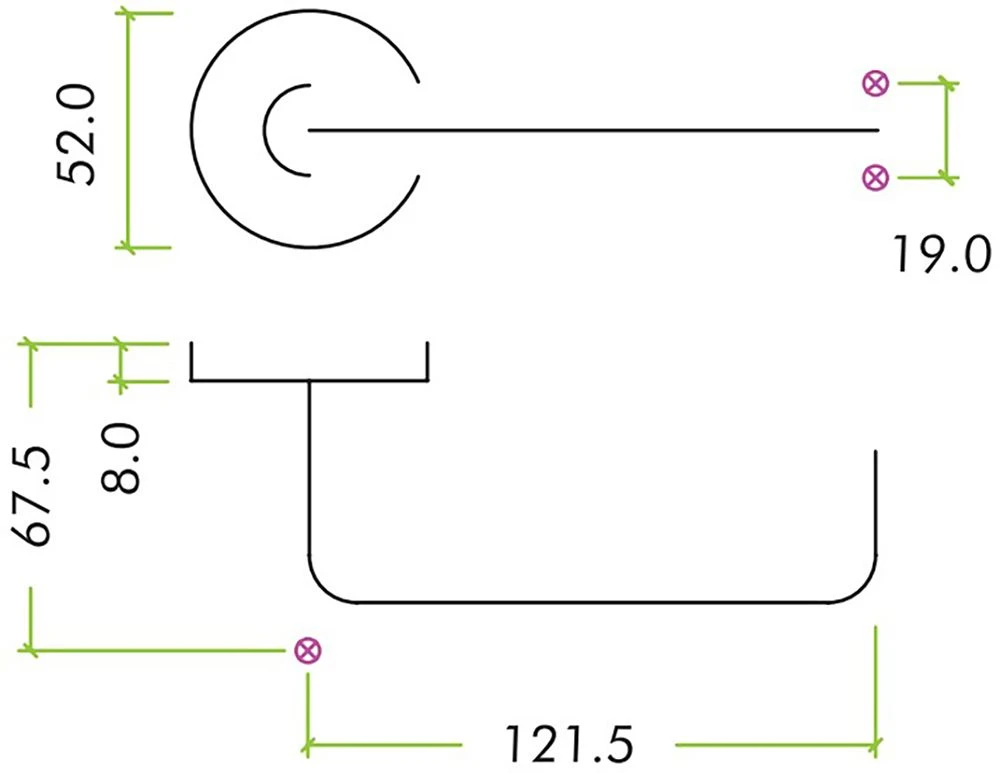

Lever Handle Dimensions

• 52mm diameter rose
• 121.5mm lever length
• 19mm diameter return to door handle
• Bathroom indicator and lift handle to lock sign – 52mm diameter

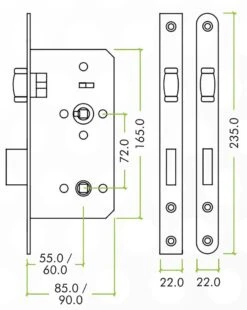

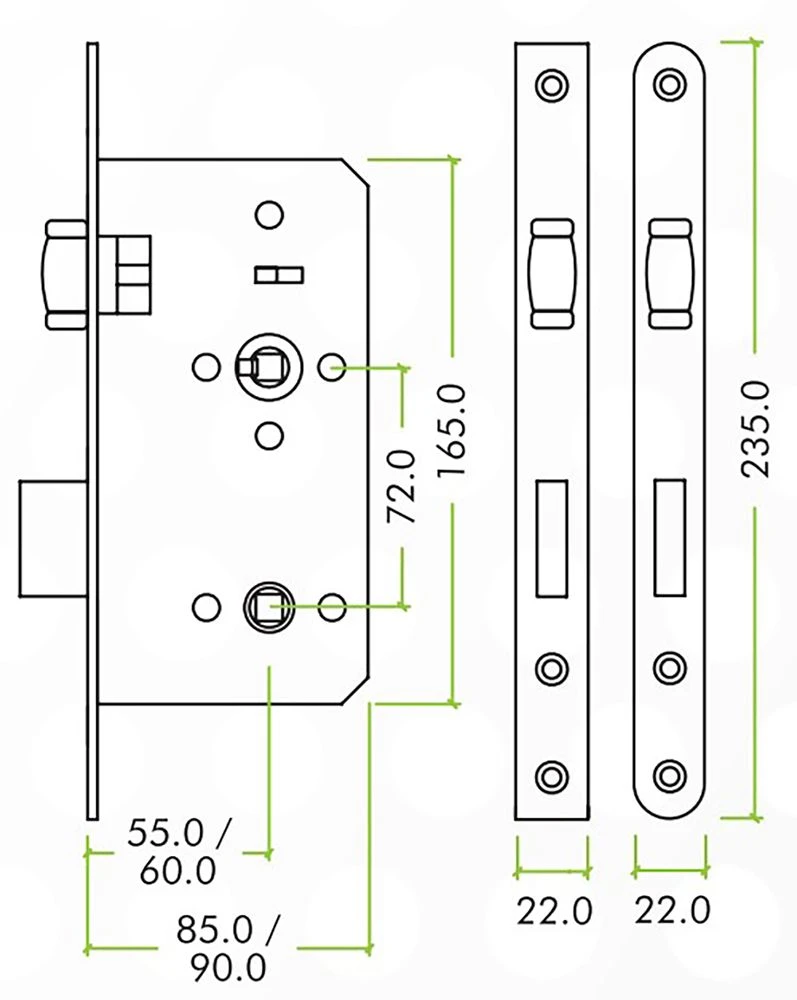

Roller Ball Lock Case Dimensions:

Set Includes:

• 2 x PVD Satin Bronze lever handles (unsprung)
• 2 x 8mm spindles
• 1 x PVD Satin Bronze release indicator
• 1 x PVD Satin Bronze – “Lift Handle To Lock” escutcheon and sign
