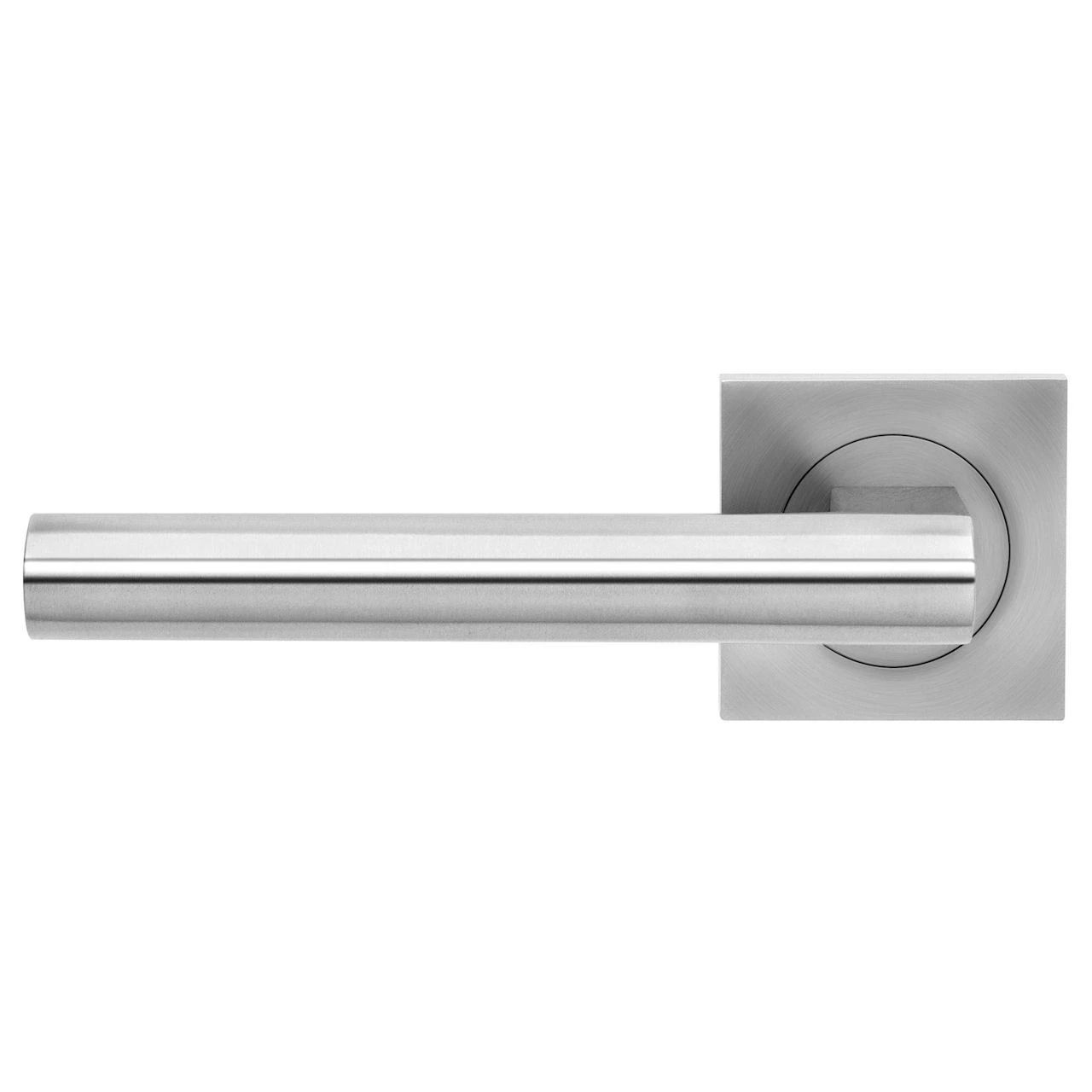

Madeira – Lever On Square Rose – Satin Stainless Steel

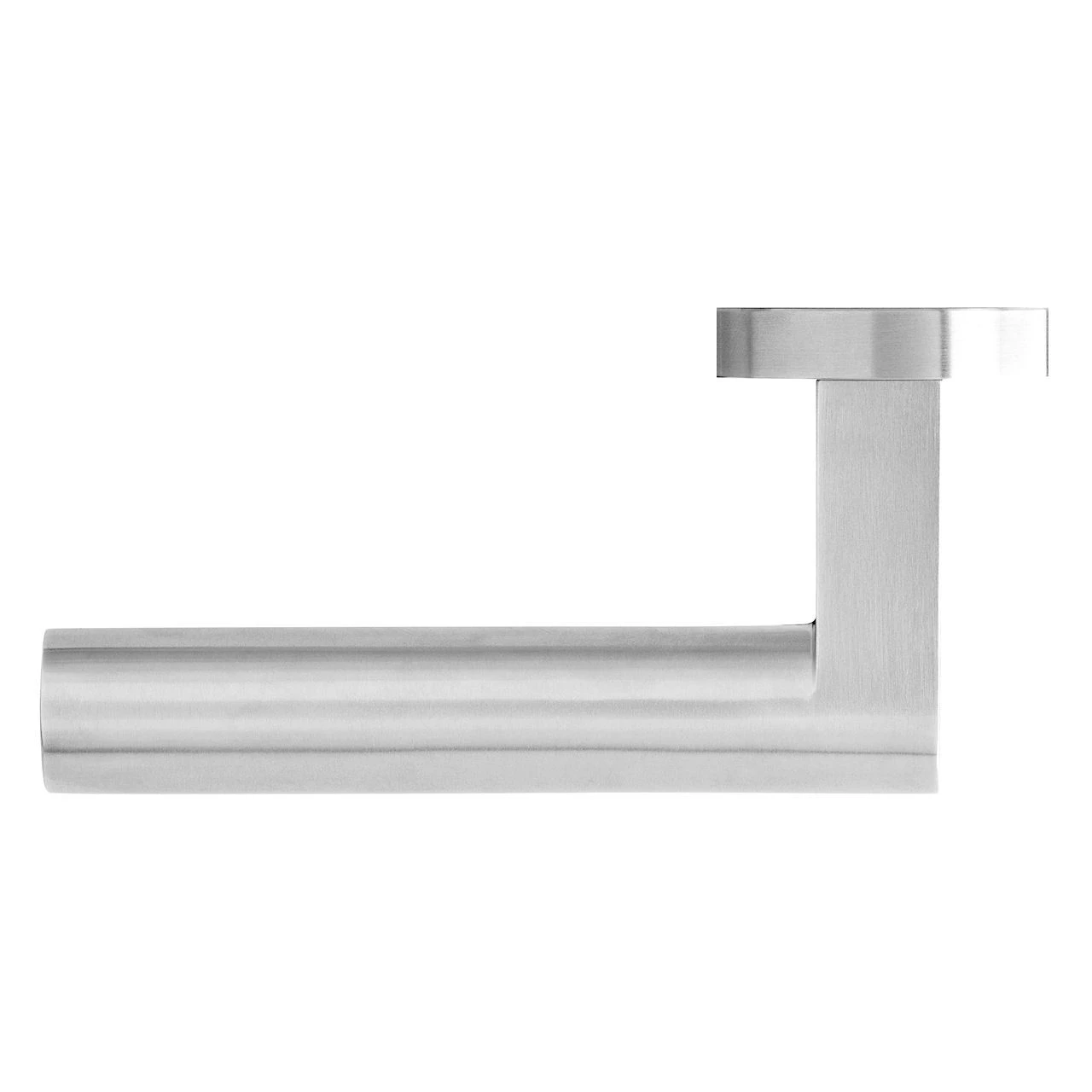

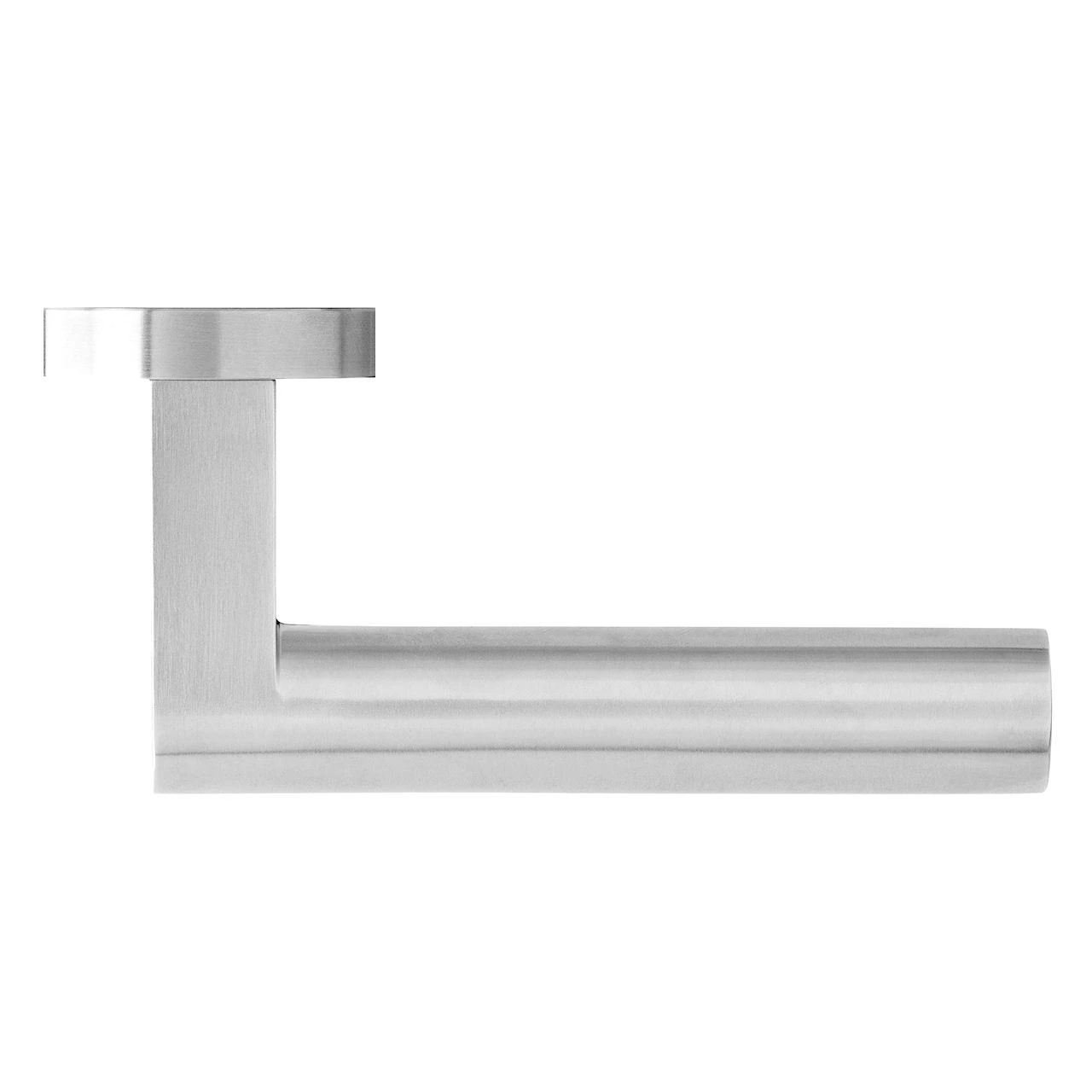

• Madeira square from the Karcher Design door handle collection. A contemporary design oval shape lever with a square neck fitted to square rose.

• New square rose design for a more contemporary look.

• German design, high architectural quality and suitable for heavy use.

• Made from grade 304 stainless steel – Satin (brushed) finish.

• Uses the patented Karcher Design 3 piece square rose fitting system to make these handles very strong once fitted to the door.

• 10mm screw on outer rose.

• Tested to the European performance standard BS EN 1906 2002. Suitable for residential or commercial use.
• Please allow approximately 7 days for delivery.

• Matching satin stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons a bathroom turn & release set and a disabled bathroom turn and release set with a long easy grip thumbturn.

How To Order Lever Handles With A Rose

• For Non-Locking Doors – 1 x (Pair) Lever Handles Only

• For Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors – 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors – 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

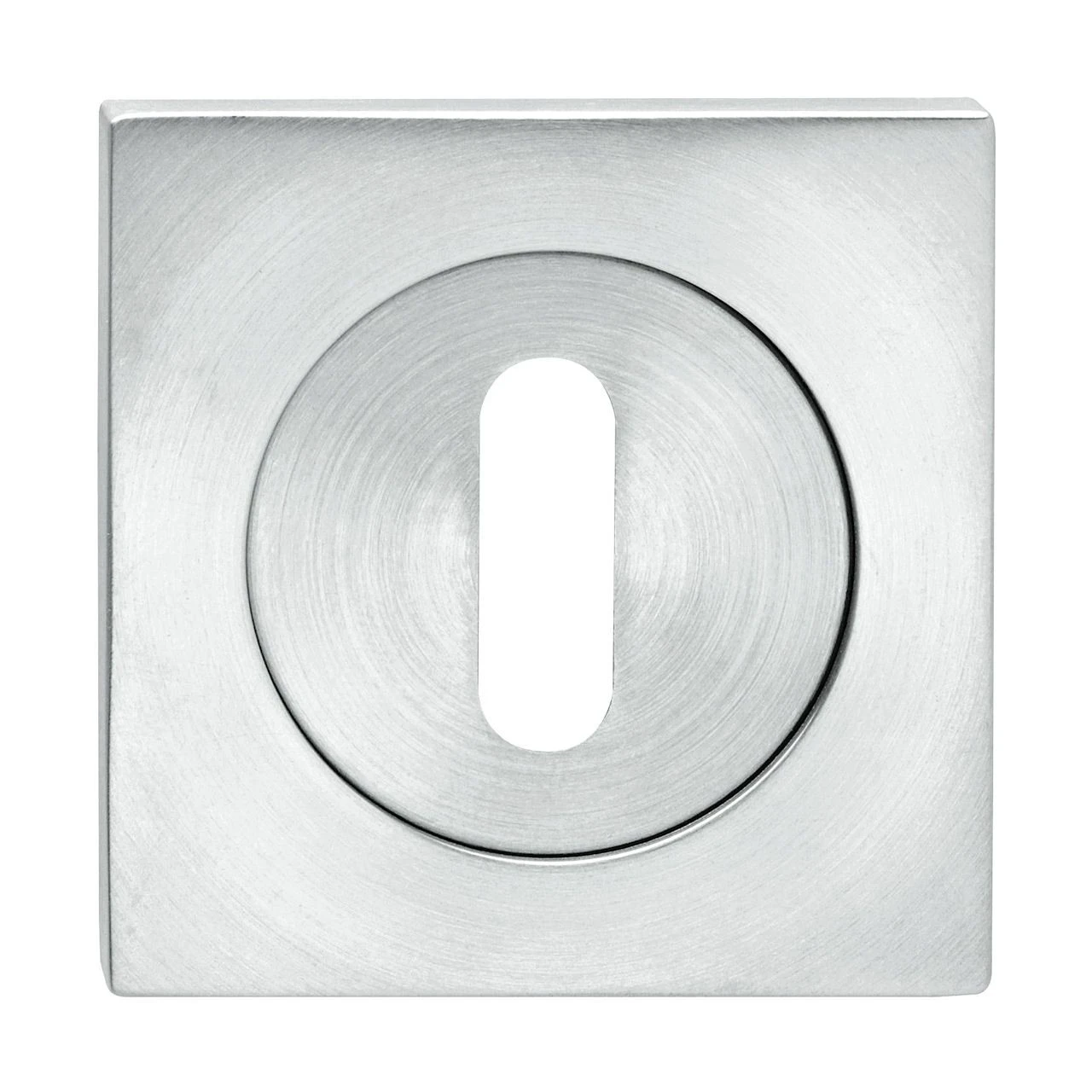

• Standard escutcheon – (key hole cover to suit regular “chubb style locks”)

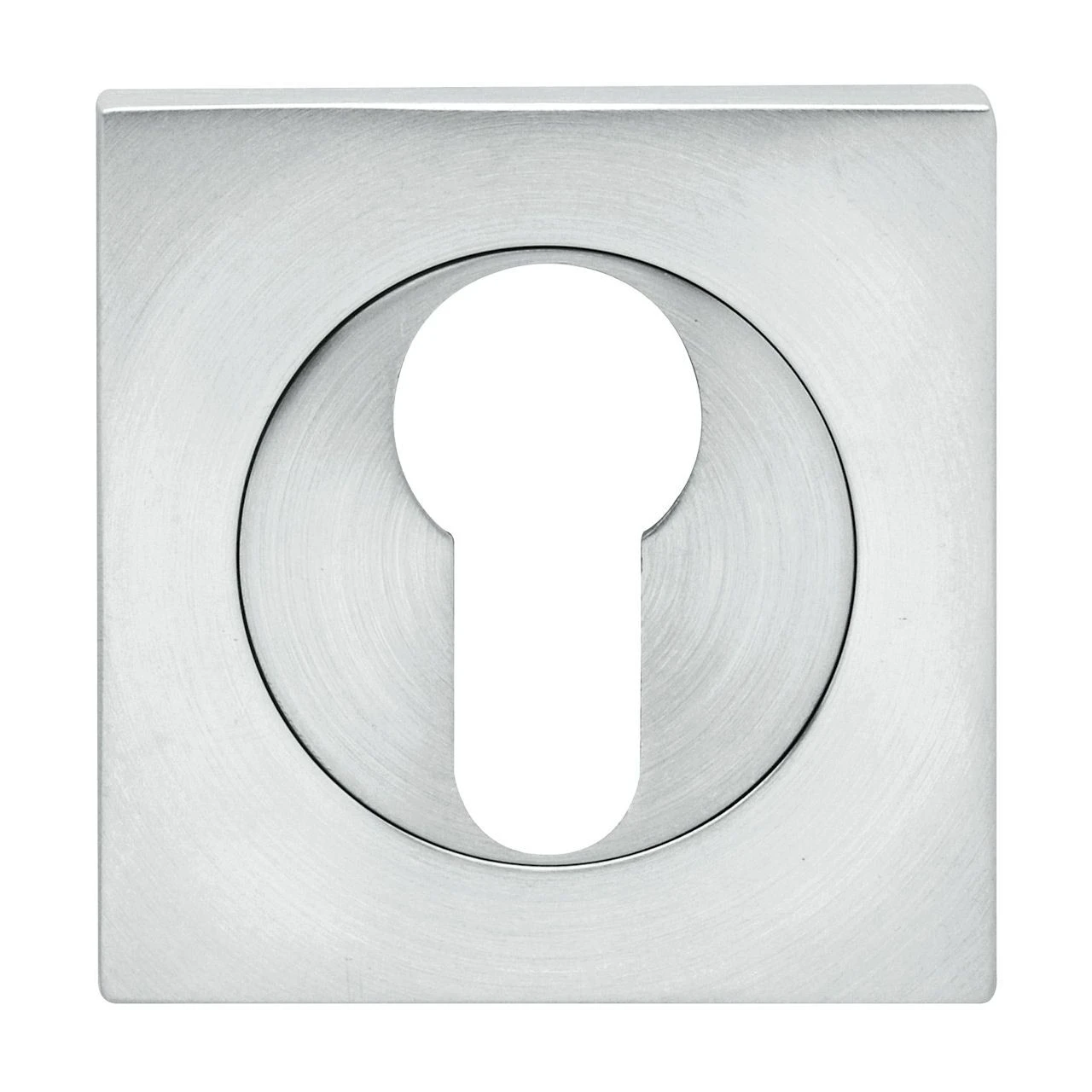

• Euro profile escutcheon – (key hole cover to suit euro profile cylinders)

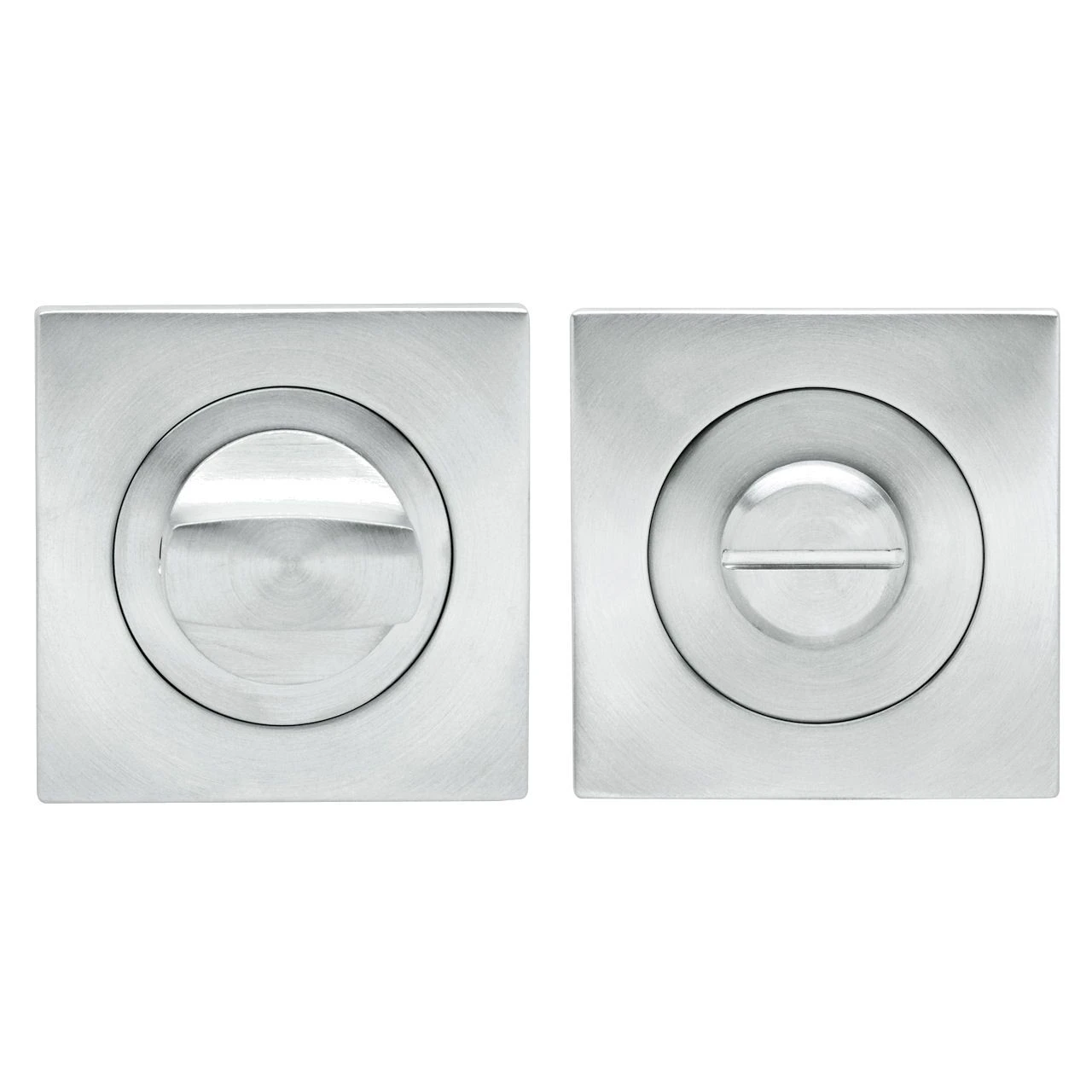

• Turn & emergency release – (a thumbturn used to lock bathroom doors, WC’s and toilet doors)

Base Material

• Made from grade 304 stainless steel.

Finish Details

• Satin stainless steel – a grey colour with very slight golden undertones. The raw stainless steel has been satinised “brushed” to produce visible brush marks in the surface of the item.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose – 52mm x 52mm (Square)
• Rose Thickness – 10mm
• Lever Length – 135mm
• Lever Diameter – 26mm x 19mm
• See technical information tab for diagram and further details.

Spindle Size

• 8mm x 8mm square – UK Standard.

Fixings

• Comes supplied with male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Lever is fitted to the door using the Karcher Design patented 3 piece rose system.

Usage

• Suitable for residential or commercial use.
• Suitable for internal or external use.

Standards This Product Conforms To

•
  Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002

• Category of use 3 – High frequency of use by public or others with little incentive to exercise with care and with a high chance of misuse.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
